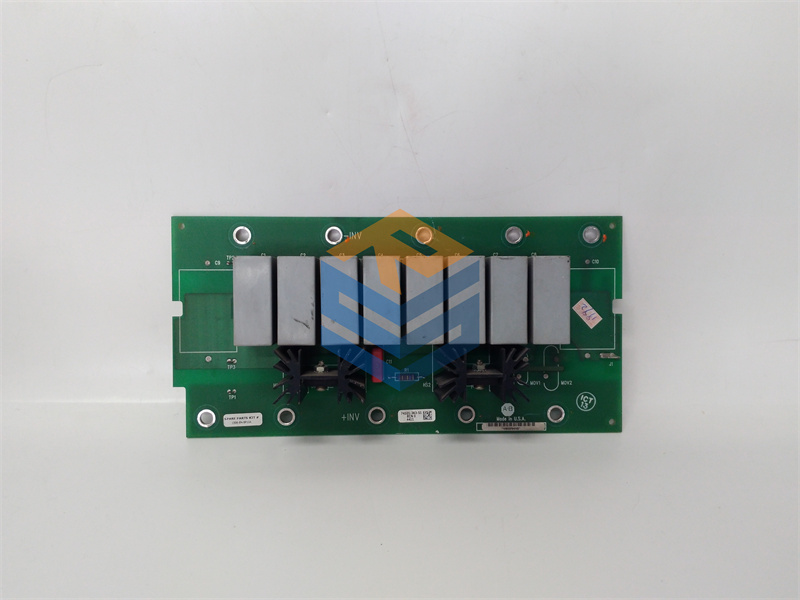

A-B 1336-QOUT-SP23A

الوصف

This component plays a pivotal role in the VFD by generating the Pulse-Width Modulation (PWM) output waveform. This waveform is what ultimately allows the VFD to precisely control the speed, torque, and direction of an AC motor by rapidly switching the current flow.

Here’s a breakdown of its key aspects:

Functions and Features

• IGBT-Based Inverter: The 1336-QOUT-SP23A contains IGBTs, which are high-power semiconductor devices essential for the VFD’s operation. They act as high-speed switches that convert the DC bus voltage within the drive into a variable frequency and variable voltage AC output for the motor.
• PWM Output Generation: Its primary function is to create the Pulse-Width Modulation (PWM) waveform. By varying the width of the electrical pulses, the VFD can effectively simulate an AC sine wave, allowing for fine control over motor speed.
• Motor Control: Enables precise control over the motor’s speed, torque, and direction, which is critical for many industrial applications.
• High Power Rating: This specific module is designed for 575V AC drives with nominal power ratings between 400 and 800 horsepower. This indicates it’s used in larger, heavy-duty industrial applications.
• Efficient Heat Management: Its design often incorporates features for efficient heat management, such as low on-state resistance, to ensure reliable performance in demanding environments.
• Simplified Electrical Connections: Typically features screw terminals for straightforward and reliable electrical connections.
• Replacement Part: The 1336-QOUT-SP23A is a replacement accessory for the 1336 PLUS, PLUS II, FORCE, IMPACT, and REGEN series of Allen-Bradley drives. It usually comes as a kit, often including four transistors.

Technical Specifications

Common Applications

The drives that utilize the 1336-QOUT-SP23A are found in various industrial settings requiring precise and robust motor control for high-horsepower applications.

• Pumps: Controlling large industrial pumps in water treatment, oil and gas, or chemical processing.
• Fans and Blowers: Regulating the speed of large fans and blowers for ventilation, combustion air, or process air.
• Conveyors: Providing speed control for heavy-duty conveyor systems in mining, material handling, or manufacturing.
• Compressors: Managing the speed and efficiency of industrial compressors.
• Mixers and Agitators: Offering precise speed control for mixing processes in various industries.
• Any application requiring variable speed control of large AC motors in industries like pulp and paper, metals, and utilities.

Important Considerations

It’s critical to note that the Allen-Bradley 1336-QOUT-SP23A has been discontinued/obsolete by the manufacturer. This means that obtaining new units directly from Rockwell Automation is no longer possible. You’ll typically find these parts through:

• Surplus industrial automation suppliers
• Industrial repair services that might have refurbished units or can repair your existing module.

When handling or replacing this module, it’s essential to follow all safety guidelines for working with high-voltage equipment, including proper lockout/tagout procedures, and ensure installation is performed by qualified technicians.
