A-B 5370-CVIM

الوصف

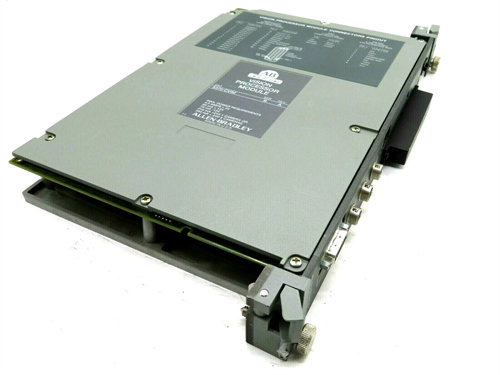

The Allen-Bradley 5370-CVIM is a specialized Vision Processor Module designed for industrial automation applications. It’s a key component within the Allen-Bradley Vision Platform / Pyramid Integration Chassis, and its primary function is to power and interface with vision cameras.

This module is not a standalone PLC processor, as its model number might initially suggest, but rather a dedicated module that enables machine vision capabilities within a larger Rockwell Automation control system. Its main purpose is to supply power to connected cameras via a DC-to-DC converter, drawing voltage from either the chassis power supply or an external DC power source.

Part One: Optimized SEO Titles

1. Allen-Bradley 5370-CVIM: Vision Processor Module
2. 5370-CVIM Allen-Bradley: Camera Power & Interface Module
3. Rockwell Automation 5370-CVIM: Industrial Vision System Component
4. Buy 5370-CVIM: Genuine Allen-Bradley Vision Platform Module
5. 5370-CVIM for Sale: Powering Machine Vision Cameras
6. Allen-Bradley 5370-CVIM: Pyramid Integration Chassis Module
7. 5370-CVIM Vision Module: Enhancing Automated Inspection
8. Allen-Bradley 5370-CVIM: Front Panel I/O for Vision Systems
9. 5370-CVIM: DC-to-DC Converter for Vision Camera Power
10. Allen-Bradley 5370-CVIM: Integrating Vision into Control Systems

Part Two: Brief Product Description

The Allen-Bradley 5370-CVIM Vision Processor Module is an integral part of the Allen-Bradley Vision Platform / Pyramid Integration Chassis. Its primary function is to supply power to connected machine vision cameras via an onboard DC-to-DC converter, drawing from either the chassis power supply or an external 24VDC source. Featuring front panel I/O, this module facilitates the integration of vision capabilities into industrial automation systems, enabling applications like quality inspection, part verification, and robot guidance.

• Product Type: Vision Processor Module
• Manufacturer: Allen-Bradley (Rockwell Automation)
• Compatibility: Allen-Bradley Vision Platform / Pyramid Integration Chassis
• Primary Function: Provides power to vision cameras and offers front panel I/O.
• Key Feature: DC-to-DC converter for camera power.

Part Three: Detailed Product Description

In today’s highly automated manufacturing environments, machine vision plays a crucial role in ensuring quality, optimizing processes, and guiding robotic systems. The ability to “see” and interpret visual data is often as vital as the traditional inputs from sensors. This is where specialized hardware like the Allen-Bradley 5370-CVIM Vision Processor Module comes into play. It’s not a camera itself, nor is it the central processing unit for vision algorithms, but rather a foundational component that enables vision systems to function by providing essential power and connectivity.

Imagine an assembly line where thousands of products zip by, each needing a quick quality check for defects or proper assembly. Manually inspecting every single one would be impossible. This is a job for machine vision. A common challenge in setting up these systems is reliably powering the cameras and managing their connections within the control architecture. The Allen-Bradley 5370-CVIM addresses this directly. It acts as the dedicated power supply and initial interface for these cameras within the Rockwell Automation ecosystem, streamlining the vision system integration and ensuring a stable power source for precise image capture.

Enabling Machine Vision: Power and Connectivity The core function of the Allen-Bradley 5370-CVIM Vision Processor Module is to provide reliable power to machine vision cameras. It incorporates a DC-to-DC converter that takes input voltage from either the host Pyramid Integration Chassis’s power supply (+12VDC and –12VDC) or an external 24VDC power supply. This ensures the cameras receive the precise and stable voltage required for optimal performance and consistent image quality.

Beyond power delivery, the module also features front panel I/O, which likely includes connectors for the vision cameras themselves, as well as potentially discrete input/output signals that can be used for triggering image acquisition, signaling camera status, or interacting with other elements of the control system. This integrated I/O simplifies wiring and streamlines the physical connection between the vision components and the overall automation system.

Part of the Allen-Bradley Vision Platform: The 5370-CVIM is explicitly designed for use with the Allen-Bradley Vision Platform and the Pyramid Integration Chassis. This means it’s built to seamlessly integrate with Rockwell Automation’s broader control and information architecture, including:

• Logix Controllers (e.g., CompactLogix, ControlLogix): While the 5370-CVIM isn’t a controller itself, it works in conjunction with Logix controllers to enable the vision system to be part of the unified automation program.
• Vision Cameras and Software: It acts as an interface for Allen-Bradley’s range of industrial vision cameras and likely supports communication with associated vision software (e.g., FactoryTalk Vision) for image processing and analysis.
• Integrated Architecture: It contributes to Rockwell’s Integrated Architecture strategy, allowing vision data to be easily shared and utilized across the entire plant floor and enterprise.

Robustness for Industrial Applications: Like all Allen-Bradley industrial control products, the 5370-CVIM is built for the demanding conditions of manufacturing environments. While specific environmental ratings would be in its detailed datasheet, it’s designed to operate reliably in typical industrial temperature ranges, resist vibration, and maintain performance in the presence of electrical noise. Its robust construction ensures long-term stability in continuous operation.

Technical Specifications (Based on available information; always confirm with official Rockwell Automation documentation for precise details):

Key Applications:

The Allen-Bradley 5370-CVIM is essential in industries leveraging machine vision for enhanced automation and quality control:

• Automotive: Robotic guidance for welding, assembly, and painting; quality inspection of parts and finishes.
• Food and Beverage: Inspection for packaging integrity, label verification, foreign object detection, and product quality grading.
• Pharmaceuticals: Verification of pill count, cap presence, label accuracy, and serialization for traceability.
• Electronics Manufacturing: Inspection of PCBs for component placement, solder joint quality, and alignment.
• Packaging: Ensuring correct product orientation, fill levels, and sealing quality.
• Material Handling: Guiding robots for pick-and-place operations, inspecting items on conveyors.

Related Products:

To build a complete vision system utilizing the Allen-Bradley 5370-CVIM, you would typically use it with:

• Allen-Bradley Vision Platform / Pyramid Integration Chassis: The backplane and enclosure that houses the 5370-CVIM and other modules.
• Allen-Bradley Industrial Vision Cameras: The cameras themselves (e.g., specific models within Rockwell’s vision camera lineup).
• Allen-Bradley Logix Controllers: Such as CompactLogix 5370 series controllers (e.g., 1769-L3x, 1769-L3xERM) or ControlLogix controllers, which would manage the overall automation logic and interact with the vision system.
• Allen-Bradley Vision Software (e.g., FactoryTalk Vision): Software used for configuring, programming, and analyzing images from the vision cameras.
• Ethernet/IP Network: For communication between the Logix controller and potentially other vision components or higher-level systems.
• Lighting and Optics: Essential components for effective image capture in machine vision applications.
