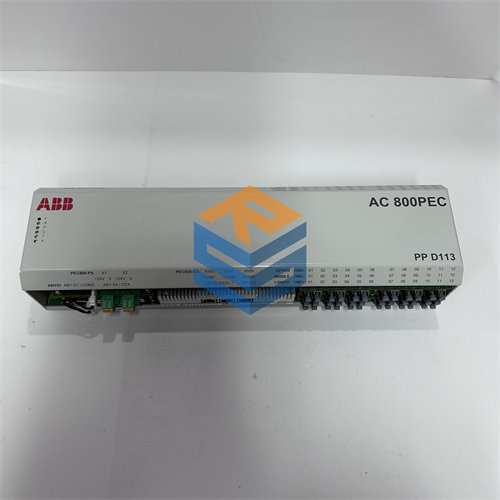

The ABB PPD113B01-10-150000 is a highly specialized and critical component within ABB’s industrial automation product line. It is primarily identified as an Excitation Control Board or Controller Module for the ABB AC 800PEC control system. While some sources also refer to it as a power supply module or high-precision analog input module, the dominant information points to its role in excitation control.
This module plays a crucial role in controlling the excitation systems of large motors and generators, ensuring their stable, efficient, and reliable operation.
Enhanced SEO Titles
- ABB PPD113B01-10-150000: Excitation Control Board for AC 800PEC Systems
- High-Performance Generator Excitation with ABB PPD113B01-10-150000
- PPD113B01-10-150000: Core Component for ABB AC 800PEC Controllers
- Optimize Motor and Generator Stability with ABB PPD113B01-10-150000
- ABB PPD113B01-10-150000: Advanced Digital Excitation Controller
- Seamless Control for High Voltage Inverters: ABB PPD113B01-10-150000
- Why ABB PPD113B01-10-150000 is Essential for Power Generation Control
- PPD113B01-10-150000: ABB’s Robust Solution for Industrial Process Control
- Enhance Electrical System Stability with ABB PPD113B01-10-150000
- ABB PPD113B01-10-150000: Flexible and Reliable Excitation Processor Module
Brief Product Description
The ABB PPD113B01-10-150000 is an Excitation Control Board / Controller Module specifically designed for ABB’s AC 800PEC (Power Electronic Controller) system. This module is a central processing unit (CPU) board equipped with a high-performance RISC processor, optimized for applications requiring very fast control cycles. Its primary function is to precisely control the excitation current of AC generators, motors, and other large electrical equipment, thereby maintaining stable output voltage and power factor. It features advanced control algorithms, various protection functions (overcurrent, overvoltage), and communication interfaces, making it a vital component for ensuring the safe, stable, and economical operation of power generation and large motor drive systems in diverse industrial environments.
- Product Type: Excitation Control Board / Controller Module (CPU Board)
- Manufacturer: ABB
- System Compatibility: ABB AC 800PEC Control System
- Primary Function: Controls the excitation system of AC generators, motors, and high voltage inverters. Manages excitation current, ensures stability, and provides protection.
- Key Features: High-performance RISC processor, fast control cycles, optical interfaces (PowerLinks), digital control, modular design.
Detailed Product Description
As an expert in industrial automation and power systems, I can emphasize that the ABB PPD113B01-10-150000 is not just another circuit board; it’s the sophisticated brain behind the stability and efficiency of large electrical machines. In power generation, the excitation system is paramount for regulating the output voltage and reactive power of a generator. In large motor drives, precise excitation control ensures optimal performance and efficiency. This module, being part of the high-performance ABB AC 800PEC system, is engineered for these exact critical tasks.
The PPD113B01-10-150000 functions as a Central Processing Unit (CPU) board within the modular AC 800PEC controller family. It is distinguished by its 750 MHz RISC processor, specifically optimized for applications demanding extremely fast control cycles (down to less than 100 microseconds). This high-speed processing capability is crucial for the rapid adjustments needed in power electronics control, such as managing the intricate firing angles of thyristors in an excitation system.
Core Functions in Excitation Control:
The primary role of this module is to meticulously control the generator’s excitation system, which involves:
- Excitation Current Control: It automatically adjusts the magnitude and phase of the DC excitation current supplied to the generator’s field windings. This control is vital for maintaining the generator’s terminal voltage and power factor within a predefined range, regardless of load changes.
- Stability Control: It continuously monitors the generator’s operational status and, through rapid adjustments of the excitation current, actively suppresses oscillations and instability. This ensures the generator operates smoothly and reliably, even under transient conditions.
- Protection Functions: The module is equipped with comprehensive protective measures. It can detect abnormal conditions such as overcurrent, overvoltage, undervoltage, and frequency deviation. Upon detection, it can quickly cut off the excitation current or initiate other protective actions to safeguard the generator and the excitation system from damage.
- Fault Diagnosis and Monitoring: By collecting and processing various sensor signals from the excitation system, it provides real-time monitoring of operational status and offers diagnostic information. This helps operators and maintenance personnel quickly identify and resolve faults, minimizing downtime.
- Communication and Interface: It features optical interfaces, specifically bi-directional fiber-optic PowerLinks (up to 36 of them), for connecting to I/O systems and power converters. This ensures cost-effective, noise-resistant, and high-speed communication within the control system and with other higher-level control systems (e.g., Automatic Voltage Regulators, Automatic Power Factor Controllers) to achieve collaborative and optimized control of the entire power generation system.
Modular and Robust Design:
The AC 800PEC system, including the PPD113B01-10-150000, is known for its modular design. This allows for easy integration of various I/O modules to meet diverse power electronic control requirements across different industries (process industries, power generation, distribution, and transport). The modularity also facilitates easy installation in distributed processes and contributes to energy savings by operating efficiently without forced cooling. The board utilizes advanced manufacturing processes like Surface Mount Technology (SMT) and Through-Hole Technology (THT), and undergoes rigorous quality control testing to meet ABB’s high standards.
Technical Specifications
Key Features and Advantages
- High-Speed, Precise Control: The 750 MHz RISC processor enables extremely fast control cycles, ensuring highly accurate and responsive management of excitation systems for optimal generator and motor performance.
- Enhanced Stability: Actively suppresses oscillations and instability in generators, contributing to reliable and continuous power output even under challenging grid conditions.
- Comprehensive Protection: Integrated protection functions (overcurrent, overvoltage, etc.) safeguard valuable equipment from damage, minimizing downtime and maintenance costs.
- Robust and Reliable: Designed for demanding industrial environments, ensuring long-term stable operation and high availability.
- Modular and Flexible: Part of the AC 800PEC family, allowing for easy integration with various I/O modules and flexible system expansion to meet evolving application requirements.
- Advanced Communication: Utilizes fiber-optic PowerLinks for noise-resistant and high-speed data exchange with peripheral I/O and power converters, simplifying cabling and improving signal integrity.
- Fault Diagnosis Capability: Provides real-time monitoring and diagnostic information, enabling quick identification and resolution of operational issues.
- Optimized for Power Electronics: Specifically engineered for high voltage inverter applications and excitation control, offering specialized algorithms and hardware capabilities.
Application Areas
The ABB PPD113B01-10-150000 Excitation Control Board is predominantly used in critical applications within:
- Power Generation:
- Large Power Plants (Thermal, Hydro, Nuclear): Controlling the excitation of synchronous generators to regulate voltage, reactive power, and enhance grid stability.
- Renewable Energy (Wind Turbines): In some designs, excitation control is used to optimize generator performance and grid integration.
- Industrial Drives and Motors:
- High Voltage Motor Control: Ensuring precise speed, torque, and power factor control for large industrial motors in sectors like metals, mining, cement, and pulp & paper.
- Variable Speed Drives (VSDs): Integral to the control architecture of high-power VSDs for heavy machinery.
- Marine Applications:
- Controlling generators and propulsion motors on large vessels, where reliable and stable power is essential.
- Oil & Gas:
- In applications involving large compressors, pumps, and other rotating equipment that rely on precise motor and generator control.
Related Products
The ABB PPD113B01-10-150000 operates as a core component within the larger ABB AC 800PEC system. Related products typically found alongside it include:
- Other ABB AC 800PEC Modules: This family includes various I/O modules (analog, digital), communication modules, and power supply modules that connect to and support the PPD113B01-10-150000. Examples might include PPD513AOC, PCD530A, and other PPD variants (e.g., PPD113B03).
- ABB System 800xA: This is ABB’s overarching distributed control system (DCS) platform, which integrates and manages various control systems, including AC 800PEC. The PPD113B01-10-150000 would feed data and receive commands from the 800xA environment.
- ABB PCS6000: A specific excitation system often mentioned in conjunction with AC 800PEC, indicating the PPD113B01-10-150000’s role within such integrated solutions.
- Power Converters / Thyristor Modules: The PPD113B01-10-150000 controls these devices (e.g., thyristor bridges) which deliver the actual excitation current to the machine.
- Field Sensors and Transducers: Devices that provide feedback on generator/motor parameters (voltage, current, speed, temperature, vibration) to the PPD113B01-10-150000 via associated I/O modules.
- Actuators and Circuit Breakers: Controlled by the system (based on the PPD113B01-10-150000’s logic) for protection and operational changes.
The ABB PPD113B01-10-150000 represents a pinnacle of control engineering, enabling the precise and robust management of critical electrical machinery in demanding industrial environments.
