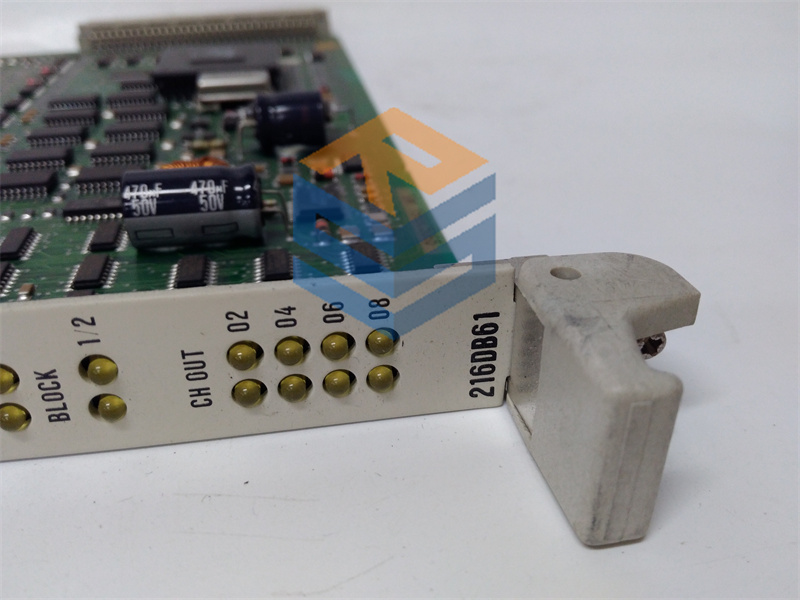

ABB+216DB61 HESG324063R100/J

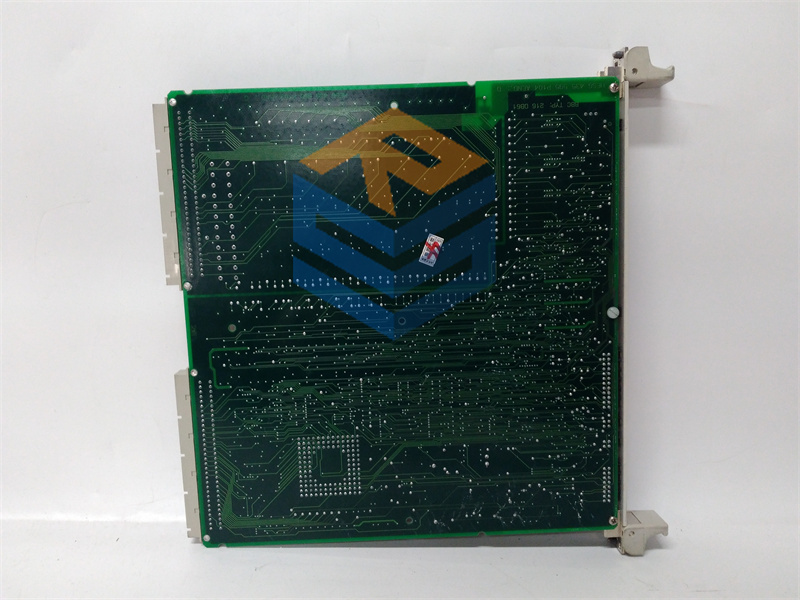

⁦ABB+216DB61 HESG324063R100/J⁩ - الصورة ⁦2⁩

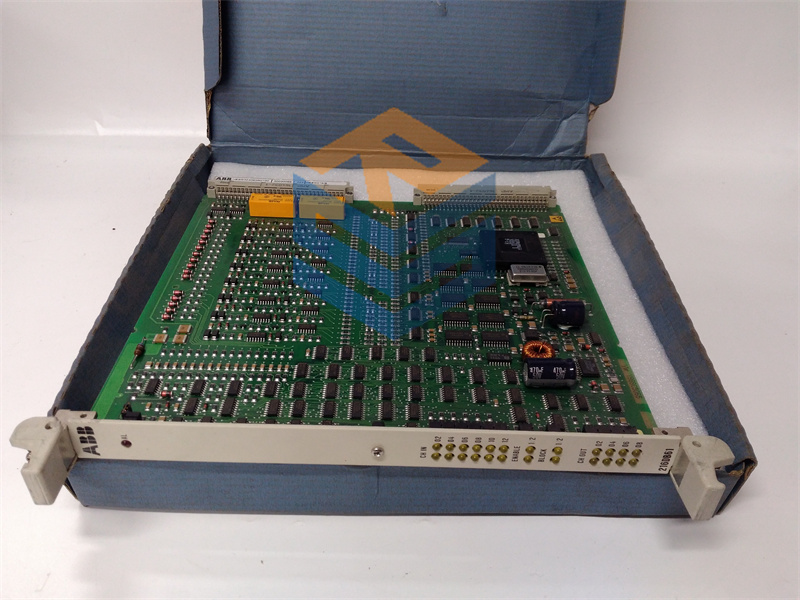

⁦ABB+216DB61 HESG324063R100/J⁩ - الصورة ⁦3⁩

ABB+216DB61 HESG324063R100/J

  • Product Type: Programmable Logic Controller (PLC) Module
  • Model Number: 216DB61 HESG324063R100/J
  • Input/Output Type: Digital and Analog Inputs/Outputs (expandable)
  • Power Supply: 24V DC ± 10%
  • Input Voltage Range: 20.4V DC to 28.8V DC
  • Max Input Frequency: 1 kHz for digital inputs
  • Number of I/O Points: 16 I/O points (expandable)
    • Digital Inputs: 8 (Discrete signals)
    • Digital Outputs: 8 (Discrete signals)
  • Output Current per Point:
    • Relay Outputs: 1A per point
    • Transistor Outputs: 0.5A per point
  • Communication Ports:
    • 2 x RS-232 (serial communication)
    • 1 x RS-485 (for industrial network communication)
  • Control Type: Discrete and Analog control
  • Operating Temperature: -10°C to +60°C
  • Humidity Range: 5% to 95% (non-condensing)
  • Mounting Type: DIN Rail mounting (panel mount options available)
  • Power Consumption: 20W (maximum)
  • Dimensions: 130mm (H) x 145mm (W) x 75mm (D)
  • Weight: 0.9 kg
  • Certifications: CE, UL, CSA, IEC
احصل على عرض أسعار
التصنيف:

الوصف

ABB 216DB61 HESG324063R100/J PLC Module

Product Description

The ABB 216DB61 HESG324063R100/J PLC Module is a robust and flexible programmable logic controller designed to meet the demanding needs of industrial automation. Built for reliability, scalability, and ease of use, this PLC module is ideal for controlling complex systems in industries such as manufacturing, energy, and process control. With a modular design, it allows for a high degree of customization and can be expanded to fit a wide range of applications.

The 216DB61 PLC is part of ABB’s extensive range of automation solutions. It combines powerful processing capabilities with multiple communication options, enabling seamless integration into various industrial control systems. Whether you’re managing a production line, optimizing energy management, or overseeing automated processes, this PLC module offers the performance and flexibility required for modern industrial control.

Product Parameters and Specifications

  • Product Type: Programmable Logic Controller (PLC) Module
  • Model Number: 216DB61 HESG324063R100/J
  • Input/Output Type: Digital and Analog Inputs/Outputs (expandable)
  • Power Supply: 24V DC ± 10%
  • Input Voltage Range: 20.4V DC to 28.8V DC
  • Max Input Frequency: 1 kHz for digital inputs
  • Number of I/O Points: 16 I/O points (expandable)
    • Digital Inputs: 8 (Discrete signals)
    • Digital Outputs: 8 (Discrete signals)
  • Output Current per Point:
    • Relay Outputs: 1A per point
    • Transistor Outputs: 0.5A per point
  • Communication Ports:
    • 2 x RS-232 (serial communication)
    • 1 x RS-485 (for industrial network communication)
  • Control Type: Discrete and Analog control
  • Operating Temperature: -10°C to +60°C
  • Humidity Range: 5% to 95% (non-condensing)
  • Mounting Type: DIN Rail mounting (panel mount options available)
  • Power Consumption: 20W (maximum)
  • Dimensions: 130mm (H) x 145mm (W) x 75mm (D)
  • Weight: 0.9 kg
  • Certifications: CE, UL, CSA, IEC

Key Features and Benefits

  • Modular and Scalable Design: The 216DB61 PLC module features a modular design that allows for easy expansion and customization based on specific industrial requirements.
  • Flexible I/O Options: The module provides a variety of I/O configurations, supporting both digital and analog inputs/outputs, making it suitable for diverse control tasks.
  • Robust Communication: The module supports communication protocols like RS-232 and RS-485, making it compatible with many existing industrial devices and networks.
  • Reliable Operation: Designed to withstand harsh environments, the 216DB61 can operate in temperatures ranging from -10°C to +60°C, ensuring reliable performance in challenging industrial conditions.
  • Ease of Integration: The module can be easily integrated into existing ABB automation systems or third-party systems, ensuring minimal downtime during installation.
  • Real-Time Control: Advanced processing power ensures real-time control for high-speed applications that require precise monitoring and adjustments.
  • High Durability: Built to last, the 216DB61 PLC module offers long-term durability with low maintenance requirements, reducing operational costs in the long run.

Applications

The ABB 216DB61 HESG324063R100/J PLC module is suitable for various industrial automation applications, including:

  • Manufacturing Automation: Ideal for controlling production lines, robotic arms, material handling systems, and assembly processes.
  • Energy Management: Used for monitoring and controlling energy distribution, HVAC systems, and industrial power grids.
  • Process Control: Widely used in chemical, pharmaceutical, and food processing industries for controlling processes and ensuring safety.
  • Water Treatment: Suitable for managing pumps, valves, and other control systems in water and wastewater treatment plants.
  • Packaging: Used in automated packaging systems for precise control of packaging lines in industries like food and beverages.
  • Building Automation: Effective for managing heating, ventilation, and air conditioning (HVAC) systems in large buildings or industrial facilities.

Comparison with Competing Products

The ABB 216DB61 HESG324063R100/J PLC module stands out when compared to competitors due to:

  • Advanced Real-Time Processing: Offers fast and precise real-time control for critical applications, outperforming many other PLCs in this price range.
  • Flexible Expansion: The module’s modular architecture allows for simple expansion, whereas some competing products require entirely new units for additional functionality.
  • Durability and Reliability: Built to perform under demanding industrial conditions with a wide operating temperature range of -10°C to +60°C.
  • Comprehensive Communication Options: With both RS-232 and RS-485 communication ports, the 216DB61 ensures compatibility with a wide variety of devices, making it highly versatile in integration scenarios.

Selection Suggestions and Precautions

When choosing the ABB 216DB61 HESG324063R100/J PLC Module for your automation system, consider the following:

  • I/O Requirements: Ensure the I/O capacity matches your system needs. The base configuration offers 16 I/O points, but additional expansion modules can be added as required.
  • Network Compatibility: Check whether the communication protocols (RS-232, RS-485) are compatible with your existing systems. For more complex network setups, additional communication modules may be needed.
  • Environmental Conditions: Verify that the operating environment is within the specified temperature and humidity ranges for optimal performance.
  • System Expansion: Consider future scalability when choosing this PLC module. The modular design ensures that additional I/O or communication modules can be easily integrated.
  • Power Supply: Ensure a stable 24V DC power supply is available for the module’s operation.

For more details about the ABB 216DB61 HESG324063R100/J PLC Module, or to receive technical assistance, please contact ABB support or visit the official website for product information and integration guidelines.

This product is an excellent choice for applications requiring flexibility, scalability, and robust performance in harsh industrial environments. TK-FTEB0151309512-175 PLC
