ABB+SLMG99

الوصف

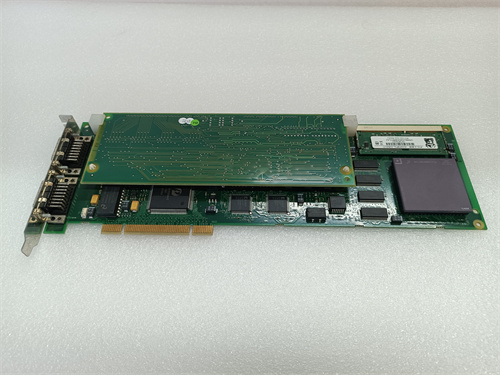

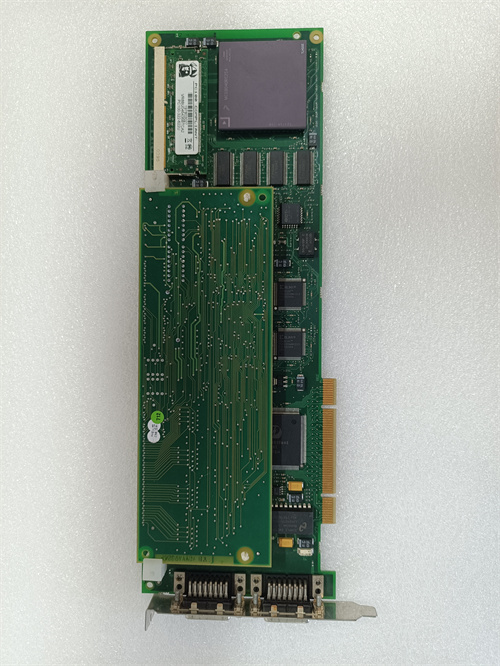

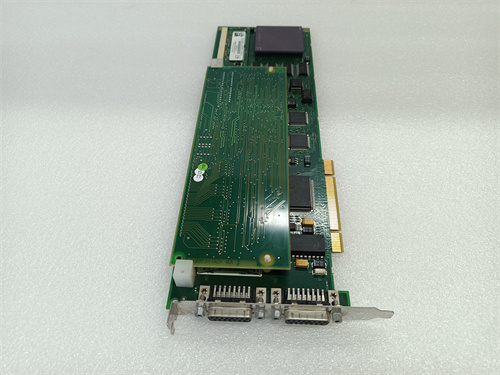

ABB+SLMG99 DCS/PLC Module

Product Name:

ABB+SLMG99 DCS/PLC Module

Product Description:

The ABB+SLMG99 is a DCS/PLC (Distributed Control System/Programmable Logic Controller) module manufactured by ABB, a global leader in industrial automation and control technologies. This module is designed to be part of ABB’s 800xA DCS or AC500 PLC systems, providing a flexible and powerful solution for industrial automation. It is primarily used in industries requiring high performance, reliability, and scalability, such as oil and gas, chemical processing, power generation, and manufacturing.

The SLMG99 module offers a comprehensive set of features for real-time control, data acquisition, and system integration. With support for a variety of I/O types (both analog and digital) and communication protocols, it enables seamless integration with other devices and systems. The module also provides high flexibility in terms of configuration and expansion, making it suitable for complex and mission-critical automation applications.

Product Parameters & Specifications:

General Information:

• Model Number: SLMG99
• Module Type: DCS/PLC Control Module
• Manufacturer: ABB
• Application: Industrial automation and control
• System Compatibility: ABB 800xA DCS, AC500 PLC, and other compatible automation systems
• Integration: Can be integrated with ABB’s Control Builder, System 800xA, and other ABB and third-party systems

Key Features:

• Real-Time Control:

  • Provides real-time monitoring and control of industrial processes, ensuring stable and accurate operations.

• Flexible I/O Configuration:

  • Supports a wide range of analog and digital input/output configurations to suit various industrial requirements, including sensors, actuators, and control devices.

• Communication Protocols:

  • Supports multiple communication protocols, such as Modbus, Profibus, Ethernet/IP, and ABB’s proprietary protocols like S100 or System 800xA for seamless integration into existing control systems.

• Modular Design:

  • Features a modular design that allows for easy expansion and customization, offering flexibility to scale up the system as per requirements.

• Fault Detection and Diagnostics:

  • The module is equipped with advanced fault detection and diagnostic features, reducing downtime and increasing operational reliability by providing early warnings for potential issues.

• High Availability:

  • Designed for high availability and redundancy in critical applications, ensuring continuous operations even in the event of failures in other system components.

• Energy Optimization:

  • Supports energy efficiency strategies, helping industries optimize energy consumption and reduce operational costs.

• User-Friendly Interface:

  • Compatible with ABB’s Control Builder and 800xA HMI for easy configuration, operation, and troubleshooting of systems.

Technical Specifications:

• I/O Types:

  • Analog I/O: 4-20 mA, 0-10V inputs and outputs for precise control of process variables such as temperature, pressure, and flow.
  • Digital I/O: Discrete input/output for contact sensors, limit switches, and actuators.

• Power Supply:

  • 24V DC power supply for standard operation. Additional power requirements may vary depending on configuration and load.

• Power Consumption:

  • Approximate power consumption: 10W – 20W, depending on connected devices and operational load.

• Communication Protocols Supported:

  • Modbus RTU/TCP
  • Profibus DP
  • Ethernet/IP
  • ABB proprietary protocols (e.g., S100, 800xA system)
  • Other industry-standard communication protocols may be supported with additional configuration.

• Operating Temperature:

  • Typically operates within a temperature range of -10°C to +60°C (specific ranges may vary depending on environmental conditions and application).

• Humidity:

  • 5% to 95% RH, non-condensing.

• Input and Output Details:

  • Analog Inputs: 4-20 mA, 0-10V for precise control of process variables.
  • Digital Inputs: Suitable for on/off signals from devices like limit switches and emergency stops.
  • Analog Outputs: 4-20 mA, 0-10V signals for controlling actuators, pumps, valves, and motors.
  • Digital Outputs: Relay or transistor outputs for controlling on/off devices or generating alarms.

• Signal Isolation:

  • Provides galvanic isolation to protect the system from voltage surges and external interference.

• Dimensions:

  • Height: 120 mm
  • Width: 90 mm
  • Depth: 140 mm

• Weight:

  • Approx. 1.5 kg, dependent on configuration and I/O types.

• Certifications:

  • CE Certification for compliance with European safety standards.
  • UL listed for North American applications.
  • RoHS compliant, ensuring that hazardous materials are not used in the manufacturing process.

Applications:

• Oil & Gas:

  • Monitoring and controlling systems such as pumps, compressors, and drilling equipment in offshore and onshore oil rigs and refineries.

• Power Generation:

  • Used in power plants for controlling turbine systems, generator monitoring, and electrical grid management.

• Chemical Processing:

  • Applied in chemical plants for the precise control of chemical reactions, temperature, pressure, and flow rates to ensure safe and efficient operations.

• Manufacturing:

  • Integrated into manufacturing lines for automating production processes, controlling machinery, robotics, and packaging systems.

• Water Treatment:

  • Used in water and wastewater treatment facilities for controlling filtration systems, pumps, and valves to ensure safe water processing.

Summary:

The ABB+SLMG99 DCS/PLC Module is a powerful and flexible module designed for real-time control and monitoring in various industrial automation applications. Its modular design, extensive I/O capabilities, and wide range of communication protocols make it suitable for industries like oil & gas, power generation, chemical processing, and manufacturing. The module offers advanced fault detection, energy optimization, and system integration capabilities, ensuring high reliability and performance for critical processes. Additionally, it supports ABB’s 800xA DCS, AC500 PLC, and other control systems, providing seamless integration into a wide array of industrial automation environments.
