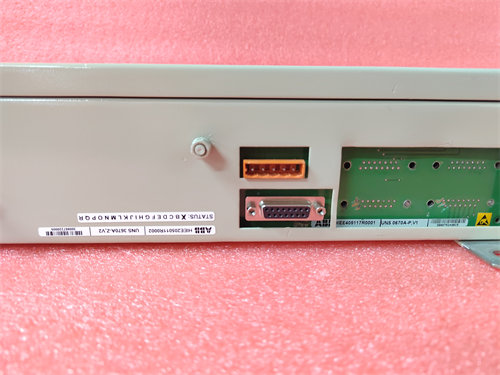

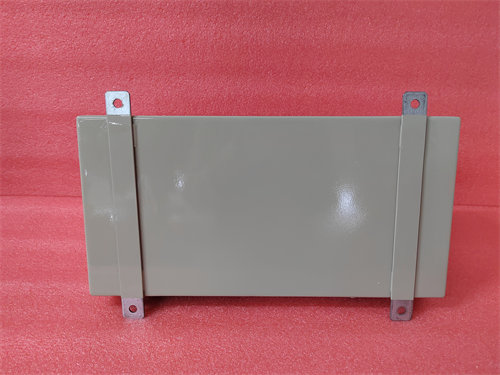

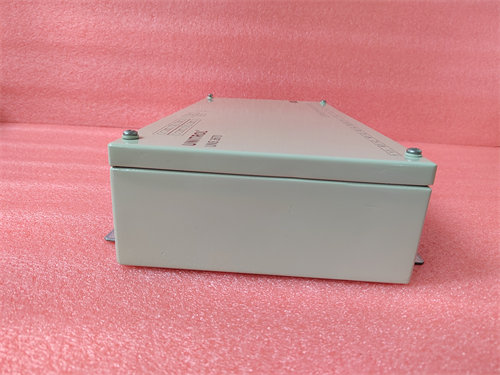

ABB+UNS3670A-Z V2 HIEE205011R0002

الوصف

Product Name:

ABB UNS3670A-Z V2 HIEE205011R0002 DCS PLC Module

Product Description:

The ABB UNS3670A-Z V2 HIEE205011R0002 is a Distributed Control System (DCS) PLC module designed for industrial automation and process control applications. It is part of the ABB 800xA control system and is built to provide reliable real-time control, high performance, and scalability for complex process control systems in industries such as power generation, oil & gas, chemical production, and manufacturing. The module is engineered for flexibility, supporting both digital and analog I/O channels and offering compatibility with various industry-standard communication protocols for seamless integration into existing control systems.

With its modular architecture, the UNS3670A-Z V2 allows for efficient system expansion and is designed to handle critical process control tasks in high-demand environments. Its redundant communication paths and power supply configurations ensure high availability, making it an ideal choice for mission-critical operations. Whether for monitoring, controlling, or automating industrial processes, this module helps improve overall operational efficiency and uptime.

Product Parameters:

• Module Type: Distributed Control System (DCS) PLC Module
• Compatibility: Fully compatible with ABB 800xA control systems and other ABB automation platforms.
• I/O Types: Supports digital and analog I/O, configurable for process control needs.
• Communication Protocols: Includes support for Ethernet/IP, Modbus, Profibus, and ABB proprietary protocols for seamless system integration.
• Redundancy: Offers redundant communication paths and power supplies, providing high reliability and minimal downtime.
• Field Device Integration: Compatible with a wide range of field devices, such as sensors, actuators, and valves.
• Mounting: Designed for rack-mounted installation in standard 19-inch racks or custom enclosures, making it adaptable to various installation environments.

Product Specifications:

1. Processor and Performance:

• Processor:
  • The module is equipped with a high-performance processor capable of executing complex process control algorithms with low latency, ensuring real-time operation.
• Real-Time Control:
  • Provides real-time data processing to support fast response times for controlling critical parameters such as temperature, pressure, and flow.

2. Memory:

• RAM:
  • Includes dynamic RAM, typically ranging from 4MB to 32MB, depending on the configuration, enabling high-speed processing of control algorithms and data.
• Non-Volatile Memory:
  • Equipped with flash memory or EEPROM for storing configuration data and system settings, ensuring the system retains critical information in the event of power loss.

3. I/O and Expansion:

• I/O Capacity:
  • Supports a large number of digital and analog I/O channels, which can be customized according to the specific application needs (e.g., 16-64 digital I/O channels per module).
• I/O Expansion:
  • The modular design allows easy addition of more I/O modules or communication cards, expanding the system as the automation needs grow.

4. Communication and Networking:

• Communication Protocols:
  • The UNS3670A-Z V2 supports multiple communication protocols, including:
    • Ethernet/IP
    • Modbus
    • Profibus
    • ABB proprietary communication protocols
• Redundant Communication:
  • Features redundant communication paths to ensure high system availability and eliminate the risk of communication failure.

5. Power Requirements:

• Operating Voltage:
  • The module operates on 24V DC or 48V DC, with redundant power inputs for enhanced reliability and fault tolerance.
• Power Consumption:
  • The power consumption is typically between 30W and 60W, depending on the module’s configuration and connected I/O.

6. Environmental Specifications:

• Operating Temperature Range:

  • Designed to operate within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.

• Humidity:

  • Can operate in environments with 5% to 95% non-condensing humidity.

• Protection Rating:

  • Typically has an IP20 rating, which provides protection against dust ingress but not water. Some configurations may support higher protection levels like IP65 for harsher environments.

• Vibration Resistance:

  • Meets IEC 60068 standards for shock and vibration resistance, ensuring reliable performance under mechanical stresses common in industrial environments.

7. Physical and Mechanical Specifications:

• Form Factor:
  • The module is designed for rack mounting in 19-inch control panels or custom enclosures, making it easy to integrate into existing systems.
• Dimensions:
  • Approximate dimensions: 160mm (H) x 120mm (W) x 60mm (D).
• Weight:
  • The weight is typically between 1.8 kg and 2.2 kg, depending on the configuration and additional I/O options.

Key Features and Benefits:

• Real-Time Control:

  • Optimized for real-time control of critical industrial processes, ensuring fast and precise responses to fluctuating parameters.

• Redundancy:

  • Features redundant power supplies, I/O modules, and communication paths, which ensure system reliability and uptime, even in the event of component failure.

• High Flexibility and Scalability:

  • The modular nature of the UNS3670A-Z V2 allows for flexible system expansion and easy adaptation to evolving automation needs in industries like oil & gas, chemical processing, and power generation.

• Seamless Integration:

  • Seamlessly integrates into the ABB 800xA control system, enabling quick deployment and reducing the effort required for system integration.

• Wide Range of Applications:

  • Ideal for applications in power plants, refineries, chemical factories, water treatment facilities, and automated manufacturing systems that require high reliability, scalability, and real-time control.

Applications:

• Power Generation:

  • Used for controlling turbine and generator systems in thermal, hydroelectric, and nuclear power plants.

• Oil & Gas:

  • Supports refinery operations, pipeline monitoring, and offshore platform control, ensuring continuous, safe, and efficient operations.

• Chemical Processing:

  • Handles complex processes like batch processing, distillation, and reaction control in chemical production.

• Manufacturing Automation:

  • Manages automated processes in manufacturing industries, controlling systems such as conveyor belts, robotic arms, and assembly lines.

• Water Treatment:

  • Used in municipal water treatment plants for managing filtration, chemical dosing, and flow regulation.

Conclusion:

The ABB UNS3670A-Z V2 HIEE205011R0002 DCS PLC Module is a powerful and flexible controller designed for industrial process control systems. It combines high-performance processing, redundancy, and scalability to deliver reliable control in demanding industrial environments. Fully compatible with ABB 800xA systems, it supports a wide range of communication protocols and is suited for applications in industries such as oil & gas, power generation, chemical processing, and manufacturing. This module ensures real-time control, system reliability, and high availability, making it an essential component in modern industrial automation solutions.
