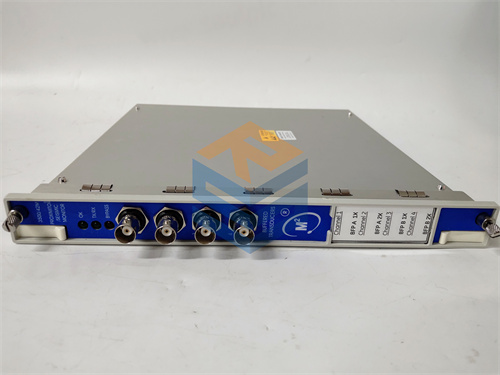

BENTLY+3500/42M 140734-02

Product Name:

BENTLY+3500/42M 140734-02 – PLC Monitoring Module

Product Description:

The BENTLY+3500/42M 140734-02 is a condition monitoring module designed for use within the Bently Nevada 3500 Series machinery protection and monitoring systems. It is specifically engineered to provide advanced monitoring capabilities for machine vibration, temperature, and other critical mechanical parameters in industrial equipment such as turbines, compressors, pumps, and other rotating machinery.

The 3500/42M module offers precise, real-time measurement and analysis of vibration signals, supporting dynamic monitoring and predictive maintenance strategies to prevent equipment failures before they happen. It integrates seamlessly with Bently Nevada 3500 System, providing continuous data collection, alarm management, and machine health diagnostics.

This module is often used in industries such as oil and gas, power generation, mining, and chemical processing, where machinery reliability and safety are critical to operational continuity.

احصل على عرض أسعار
التصنيف:

الوصف

BENTLY+3500/42M 140734-02 PLC Module

Product Name:

BENTLY+3500/42M 140734-02 – PLC Monitoring Module

Product Description:

The BENTLY+3500/42M 140734-02 is a condition monitoring module designed for use within the Bently Nevada 3500 Series machinery protection and monitoring systems. It is specifically engineered to provide advanced monitoring capabilities for machine vibration, temperature, and other critical mechanical parameters in industrial equipment such as turbines, compressors, pumps, and other rotating machinery.

The 3500/42M module offers precise, real-time measurement and analysis of vibration signals, supporting dynamic monitoring and predictive maintenance strategies to prevent equipment failures before they happen. It integrates seamlessly with Bently Nevada 3500 System, providing continuous data collection, alarm management, and machine health diagnostics.

This module is often used in industries such as oil and gas, power generation, mining, and chemical processing, where machinery reliability and safety are critical to operational continuity.

Key Features:

  1. Real-Time Vibration and Condition Monitoring:

    • The 3500/42M provides continuous monitoring of vibration and other key mechanical parameters, delivering early detection of potential faults.

  2. Dynamic Data Processing:

    • The module processes real-time data from multiple sensors, allowing operators to track machinery performance and make data-driven decisions.

  3. Predictive Maintenance:

    • Supports predictive maintenance by providing early warnings of potential failures such as bearing wear, shaft misalignment, and rotor imbalance, reducing downtime and maintenance costs.

  4. Comprehensive Alarm Management:

    • Built-in alarm thresholds and event logging help operators prioritize maintenance activities based on the severity of detected anomalies.

  5. Easy Integration:

    • Seamlessly integrates with the broader Bently Nevada 3500 System, offering easy configuration and system expansion.

  6. High-Precision Measurements:

    • Provides high-accuracy vibration readings for critical machines, ensuring safety and optimal performance.

  7. Field-Replaceable:

    • Designed with modular components for easy field replacement, minimizing downtime during maintenance or system upgrades.

  8. Robust Design for Harsh Environments:

    • Built to withstand harsh industrial environments, including high vibration, temperature fluctuations, and electromagnetic interference (EMI).

  9. Redundancy Support:

    • Supports redundant configurations, ensuring that critical machine data continues to be monitored even if one channel fails.

Product Parameters & Specifications:

General Information:

  • Model:

    • BENTLY+3500/42M 140734-02

  • Brand:

    • Bently Nevada

  • Category:

    • Condition Monitoring Module

  • Control Platform:

    • Bently Nevada 3500 Series Machinery Protection System

  • Application:

    • Vibration Monitoring, Predictive Maintenance, Machine Health Diagnostics

  • Part Number:

    • 140734-02
Power Supply:

  • Nominal Voltage:

    • 125 VDC (typically used for industrial systems)

  • Voltage Range:

    • +105 VDC to +140 VDC (supports industrial power supplies)

  • Power Consumption:

    • Typically 15W depending on configuration and sensors connected.
Operating Conditions:

  • Operating Temperature Range:

    • -40°C to +70°C (-40°F to 158°F)

  • Storage Temperature Range:

    • -40°C to +85°C (-40°F to 185°F)

  • Humidity:

    • 5% to 95% (non-condensing)

  • Shock Resistance:

    • Designed to withstand severe shock and vibration typically found in industrial applications.

  • Protection Rating:

    • IP20 (for protection against contact with electrical components)
I/O Specifications:

  • Vibration Inputs:

    • Supports dynamic vibration sensors, typically seismic transducers for machine condition monitoring.

  • Signal Types:

    • AC or DC signals from vibration sensors.

  • Alarm Thresholds:

    • Configurable alarm levels based on vibration readings or other parameter deviations (e.g., temperature, speed).

  • Data Transmission:

    • Real-time data processing with options for historical data logging and trend analysis.

  • Outputs:

    • Analog output for vibration or machine health parameters (e.g., 4-20mA output for system integration).
Performance & Control Features:

  • Signal Processing:

    • Supports multi-channel signal processing for detailed, high-accuracy monitoring of rotating machinery components.

  • Real-Time Data Acquisition:

    • Provides continuous monitoring of machine vibration with real-time data streaming to the central control system.

  • Fault Detection Algorithms:

    • Built-in algorithms for early fault detection (e.g., imbalance, misalignment, bearing faults, etc.).

  • Alarm Management:

    • Customizable alarms and event history logging to provide actionable insights for predictive maintenance.

  • Predictive Diagnostics:

    • The module helps predict machine failures before they occur, minimizing unplanned downtime.
Compliance & Certifications:

  • Safety Standards:

    • Compliant with CE, UL, and CSA for industrial safety.

  • EMC Compliance:

    • Meets Electromagnetic Compatibility (EMC) requirements for interference immunity in industrial environments.

  • Environmental Compliance:

    • Meets RoHS standards and environmental regulations for the manufacturing process.

Applications:

  1. Turbine Monitoring:

    • The 3500/42M is widely used in turbine monitoring for vibration, speed, and bearing condition monitoring.

  2. Compressor and Pump Monitoring:

    • Helps prevent failure in compressors, pumps, and other critical rotating machinery in industries like oil and gas, chemical processing, and power generation.

  3. Predictive Maintenance in Mining:

    • Used to monitor and analyze machinery used in mining operations to avoid unplanned downtime and reduce maintenance costs.

  4. Power Generation Plants:

    • Applied in power plants to monitor turbines, generators, and pumps, ensuring their health and maximizing operational efficiency.

  5. Oil and Gas Industry:

    • Continuously monitors rotating equipment in drilling rigs, refineries, and pumping stations, ensuring they operate within safe parameters.

Summary of Key Features:

  • Real-time vibration monitoring for critical rotating machinery.
  • Predictive maintenance capabilities to reduce downtime and maintenance costs.
  • High-precision data acquisition with advanced signal processing.
  • Seamless integration with Bently Nevada 3500 Machinery Protection Systems.
  • Customizable alarm management for proactive fault detection and remediation.
  • Built for use in harsh industrial environments, including extreme temperatures, high vibrations, and electrical interference.
  • Field-replaceable components for quick and easy maintenance.

Let me know if you need further specifications or details! IS200TBCIH2B PLC
