BENTLY+3500/94 147663-01

الوصف

Product Name:

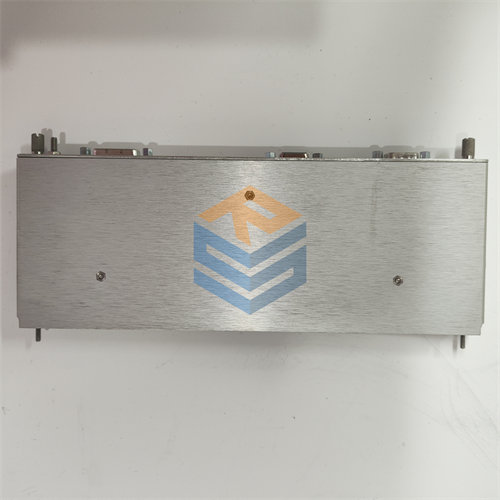

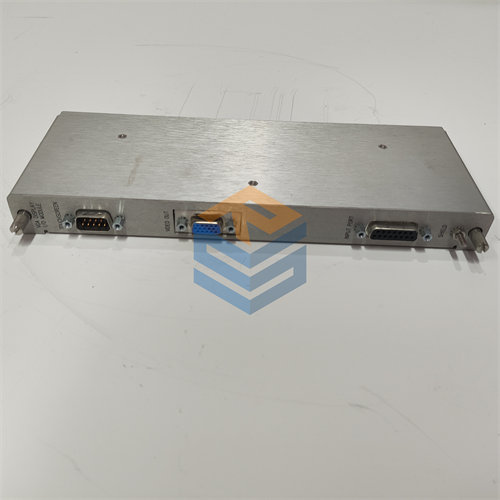

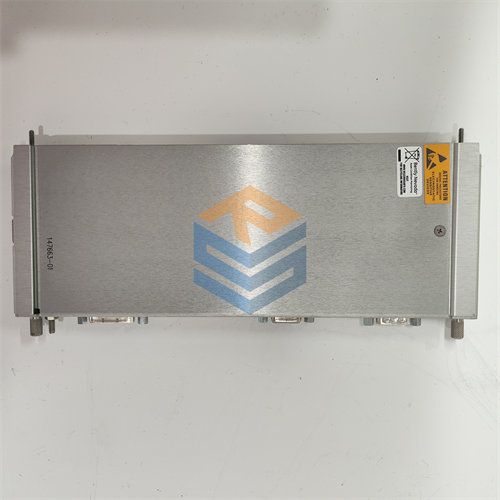

Bently Nevada 3500/94 147663-01 DCS/PLC Module

Product Description:

The Bently Nevada 3500/94 is a Vibration Monitoring Module used as part of the 3500 Series Machinery Protection System. The 3500/94 module specifically focuses on monitoring vibration in critical machinery and ensuring the safety and reliability of rotating equipment such as compressors, turbines, and pumps in industries like oil & gas, power generation, chemical processing, and manufacturing.

The module is designed to provide real-time, continuous monitoring of equipment health, detecting vibration anomalies that may indicate wear, misalignment, or impending mechanical failures. By detecting such issues early, the system can trigger alarms or shutdowns to prevent costly equipment damage and unplanned downtime. This makes the 3500/94 an essential part of condition monitoring systems in critical industrial operations.

Product Parameters:

• Module Type: Vibration Monitoring Module for 3500 Machinery Protection System.
• Model Number: 3500/94 (also known as 147663-01).
• Application: Condition monitoring of rotating machinery such as turbines, pumps, compressors, etc.
• Compatibility: Integrates with the Bently Nevada 3500 Series for vibration, speed, and position monitoring.
• Power Supply: Typically 24V DC.
• Mounting: Rack-mounted within the Bently Nevada 3500 rack system.
• Communication Protocol: Proprietary Bently Nevada protocols for high-speed data transfer.

Product Specifications:

1. Input and Output Configuration:

• Inputs:
  • The 3500/94 module accepts input signals from accelerometers or velocity transducers to monitor vibrations in critical machinery.
  • Channel Types: Up to 4 channels per module, each for monitoring an individual piece of equipment.
  • Each channel can accept DC-coupled input from sensors with 4-20mA or 0-10V analog signals.
• Outputs:
  • The module can provide analog output for each channel, enabling integration with other systems or for analog trend monitoring.
  • Alarm outputs are available for triggering actions based on vibration thresholds or fault conditions.

2. Performance and Functionality:

• Signal Processing: The module processes sensor data for vibration analysis, such as acceleration, velocity, and displacement.
• Measurement Range:
  • Vibration Measurement: Designed to measure low to high frequency vibrations in a wide range of machinery.
  • Can monitor vibration in axial, radial, or tangential directions, depending on sensor placement.
• Real-Time Data Analysis:
  • The module includes real-time signal processing and alarm threshold capabilities.
  • Provides data analysis for vibration amplitude, frequency analysis, and trend logging to predict potential failures.

3. Communication Protocol:

• Bently Nevada 3500 Series Protocols:
  • The 3500/94 module integrates with other modules in the 3500 series, allowing for comprehensive machinery protection and condition monitoring.
  • Data Communication: The module communicates via the 3500 Rack System, providing continuous data to other control or monitoring systems.
• Interfacing with DCS/PLC Systems:
  • The module can be connected to a DCS (Distributed Control System) or PLC (Programmable Logic Controller) for seamless integration into the plant’s control architecture.
  • Typically interfaces with systems for alarm handling, data trending, and fault reporting.

4. Power and Environmental Specifications:

• Power Supply:
  • Standard 24V DC power supply requirement.
  • Power consumption is optimized for energy efficiency, with low operational demands.
• Environmental Conditions:
  • Operating Temperature: -40°C to 70°C (-40°F to 158°F), making it suitable for harsh industrial environments.
  • Humidity: Can function in environments with 5% to 95% relative humidity (non-condensing).
  • Vibration Resistance: The module is designed for use in environments with high levels of vibration.

5. Safety and Reliability:

• High Reliability Design: The 3500/94 is built for high MTBF (Mean Time Between Failures) and availability, ensuring long-term operation with minimal maintenance.
• Built-in Diagnostics: The module has self-diagnostic capabilities, alerting the user to potential failures and offering preventive maintenance suggestions.
• Fail-Safe Operation: In case of failure, the module can continue to operate in a degraded mode to maintain essential monitoring.

Applications:

The Bently Nevada 3500/94 module is primarily used in machinery protection and predictive maintenance for rotating equipment across various industries. Some of the key applications include:

1. Power Generation: Monitoring the health of gas turbines, steam turbines, and generators to prevent costly downtime or catastrophic failures.
2. Oil & Gas: Protecting equipment such as compressors, pumps, and drill rigs that are exposed to harsh operational conditions.
3. Chemical Processing: Condition monitoring of agitators, mixers, and pumps to ensure safe and reliable operations in chemical plants.
4. Manufacturing and Heavy Industry: Vibration monitoring of machinery such as motors, fans, and conveyor belts to optimize machine performance and prevent unplanned shutdowns.
5. Mining and Metals: Vibration protection for critical machinery such as crushers, grinders, and conveyor systems.

Key Features:

• Multiple Channels per Module: Supports up to 4 channels for comprehensive vibration monitoring across several pieces of machinery.
• Real-Time Vibration Analysis: Continuously analyzes vibration data to provide actionable insights for machinery health.
• Proprietary Communication Protocols: Seamlessly integrates into the Bently Nevada 3500 Series machinery protection systems.
• Built-in Alarm and Diagnostic Features: Provides early warning of potential failures, reducing maintenance costs and unplanned downtime.
• Flexible Sensor Inputs: Accepts multiple sensor types (e.g., accelerometers, velocity transducers) for various machine monitoring needs.
• SIL Compliant: Supports Safety Integrity Level (SIL) requirements for high-risk machinery protection.

Conclusion:

The Bently Nevada 3500/94 147663-01 DCS/PLC Module is a critical component for the 3500 Series Machinery Protection System, focused on monitoring and protecting the vibration health of rotating equipment in industrial settings. With its ability to handle multiple input channels, its real-time data analysis, and alarm capabilities, it is ideal for high-demand applications in industries like oil & gas, power generation, and manufacturing. The module helps prevent unexpected failures by providing early warning of mechanical issues, ultimately ensuring operational continuity and reducing maintenance costs.
