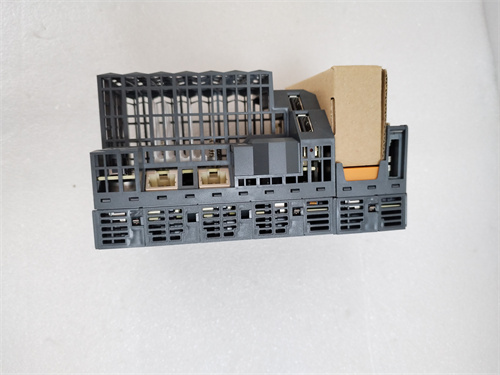

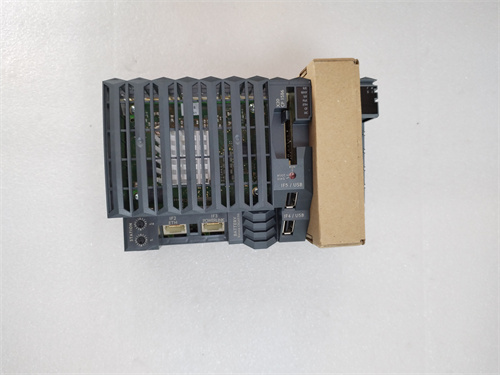

  • Model Number: B&R X20CP1486
  • Module Type: PLC Processor Module
  • Architecture: Distributed Control System (DCS) compatible
  • Integration: Can be integrated into the X20 modular I/O system.
  • Application: Suitable for high-performance control tasks in industries like automotive, pharmaceutical, food processing, and machine control.
  • Processor Type: Embedded ARM-based processor for high-speed control and diagnostics.
  • Operating System: Runs the B&R Automation Runtime Environment (Automation Studio), which supports a wide range of programming standards, including IEC 61131-3, C, and C++.
احصل على عرض أسعار
التصنيف:

الوصف

The B&R X20CP1486 is a PLC (Programmable Logic Controller) Module that is part of the X20 series from B&R Industrial Automation. The X20 series is known for its modular design and high-performance capabilities, making it well-suited for a wide variety of industrial automation tasks. The X20CP1486 specifically is designed to handle high-speed control tasks and is often used in DCS (Distributed Control Systems) applications for process automation, machine control, and various other industrial settings.

Here’s an overview of the B&R X20CP1486 DCS PLC Module:

Product Name

  • B&R X20CP1486 PLC Module

Product Description

The B&R X20CP1486 is a high-performance PLC processor module designed for use in Distributed Control Systems (DCS). It combines real-time control capabilities with a modular, flexible design, and is part of the X20 series of B&R controllers. This module is particularly suited for automation in industries such as automotive, food and beverage, pharmaceuticals, packaging, and machine building.

The X20CP1486 features an embedded processor and is capable of handling complex control tasks with high reliability. It offers various features that make it ideal for industrial environments, including extended connectivity, high-speed I/O processing, and support for distributed control in large-scale automation systems.

Product Parameters & Specifications

General Features:

  • Model Number: B&R X20CP1486
  • Module Type: PLC Processor Module
  • Architecture: Distributed Control System (DCS) compatible
  • Integration: Can be integrated into the X20 modular I/O system.
  • Application: Suitable for high-performance control tasks in industries like automotive, pharmaceutical, food processing, and machine control.
  • Processor Type: Embedded ARM-based processor for high-speed control and diagnostics.
  • Operating System: Runs the B&R Automation Runtime Environment (Automation Studio), which supports a wide range of programming standards, including IEC 61131-3, C, and C++.

Electrical and Power Specifications:

  • Nominal Voltage: 24V DC (typical for B&R PLCs)
  • Power Consumption: Approximately 12W (varies based on module configuration and load).
  • Current Consumption: 500mA to 1A (depending on configuration).
  • Input Voltage Range: Typically 20V DC to 28V DC.

Processor and Performance:

  • Processor Speed: High-performance ARM-based processor for rapid execution of control tasks.
  • Processing Power: Multi-core processing (dual or quad-core), optimized for real-time control operations.
  • I/O Handling: High-speed I/O data exchange with distributed modules for real-time system integration.

I/O Specifications:

  • Integrated I/O: The X20CP1486 supports various digital, analog, and communication I/O modules in the X20 series, allowing users to configure the system based on application requirements.
  • Modular I/O System: Supports flexible I/O configurations that can be extended via X20 I/O modules. I/O modules can include digital inputs/outputs, analog inputs/outputs, high-speed counters, and communication interfaces.

Communication Interfaces:

  • Ethernet: Built-in Ethernet connectivity for communication between modules and integration with other systems.
  • Serial Communication: Supports RS232, RS485 for serial communication with external devices.
  • Fieldbus: Supports various fieldbus protocols, such as PROFINET, EtherCAT, Modbus, and CANopen.
  • Distributed I/O: Supports distributed I/O setups via the X20 I/O system, which allows you to place I/O modules at remote locations to reduce wiring and improve system scalability.

Software and Programming:

  • Automation Studio: The X20CP1486 can be programmed and configured using B&R’s Automation Studio software, which supports multiple programming languages such as:

    • IEC 61131-3 languages (Ladder Diagram, Structured Text, Function Block Diagram, Instruction List, and Sequential Function Chart).
    • C and C++ for advanced applications and integration.
    • Python scripting for modern control applications and data manipulation.

  • Libraries and Templates: Access to pre-built libraries for common industrial applications, simplifying programming and accelerating development time.

Diagnostic and Monitoring Features:

  • Status LEDs: Equipped with LED indicators for easy monitoring of module status, including power, communication, and error states.
  • Real-time Diagnostics: Built-in diagnostic tools in Automation Studio provide detailed error reporting, performance tracking, and system health checks.
  • Fault Tolerance: In combination with the X20 I/O modules, the X20CP1486 offers fault detection and system monitoring features, enhancing the reliability of critical applications.

Environmental and Mechanical Specifications:

  • Operating Temperature: Typically operates between 0°C to 55°C.
  • Storage Temperature: Typically between -25°C to 70°C.
  • Humidity: Designed to operate in environments with 5% to 95% non-condensing humidity.
  • Vibration Resistance: Built to withstand industrial vibrations, conforming to standards like IEC 60068.
  • Dimensions: Around 160mm x 100mm x 75mm (W x H x D), but this may vary depending on specific configurations or additional modules.
  • Weight: Around 500g to 700g, depending on the exact configuration.

Safety and Compliance:

  • CE Marked: Meets European Union safety, health, and environmental requirements.
  • UL Listed: Certified for use in North American markets under UL standards.
  • ISO 9001 Certified: Produced according to quality management systems.
  • EMC Compliance: Meets industrial electromagnetic compatibility (EMC) standards for noise immunity.

Key Features & Benefits

  1. Modular and Scalable: The X20CP1486 is part of the B&R X20 modular platform, allowing users to easily expand the system by adding more I/O modules as needed. This makes it highly flexible and scalable for a wide variety of applications.
  2. High Performance: With an ARM-based processor and high-speed real-time control, the X20CP1486 ensures fast execution and synchronization of control tasks, making it suitable for demanding industrial applications.
  3. Flexible Communication: The module supports Ethernet, PROFINET, EtherCAT, and other protocols, ensuring it can integrate easily into different industrial communication networks.
  4. Advanced Diagnostics: The module includes built-in diagnostics and real-time system monitoring, which improves maintenance and troubleshooting.
  5. Broad Application Support: Suitable for a wide range of industries such as automotive, packaging, food & beverage, and pharmaceuticals. It is ideal for high-performance, real-time control systems.
  6. Integration with B&R Automation Studio: Seamless integration with Automation Studio allows for advanced programming, simulation, and debugging, increasing development efficiency.

Applications and Use Cases

  • Machine Control: The X20CP1486 is ideal for controlling complex machines or production lines that require high-speed, real-time control and communication.
  • Process Automation: Used in process industries such as food processing, chemicals, pharmaceuticals, and oil & gas, where fast and reliable control is essential for operational efficiency and safety.
  • Automotive: Suitable for automation tasks in automotive manufacturing, including robotic arms, conveyor belts, and other critical processes.
  • Packaging and Logistics: Used for controlling automated packaging systems, material handling equipment, and conveyors in logistics centers and production plants.

Comparison with Competitors

  • Siemens S7-1200 / S7-1500: While Siemens PLC systems are widely used in the industry, B&R’s X20CP1486 offers a more flexible, modular design that can be extended more easily for different I/O configurations. Additionally, B&R provides automation runtime environments and advanced programming tools that make the system more versatile.

  • Beckhoff CX Series: The Beckhoff CX series offers similar features, but the B&R X20CP1486 has better support for modular I/O systems and real-time control features suited to larger, distributed applications.

Conclusion

The B&R X20CP1486 PLC module is an advanced, high-performance processor designed for complex, high-speed control applications. Its modular design, robust communication options, and integration with Automation Studio software make it an excellent choice for a wide range of industries, from automotive to pharmaceuticals. The flexibility, scalability, and reliability of this module enable users to build effective and future-proof automation solutions.
