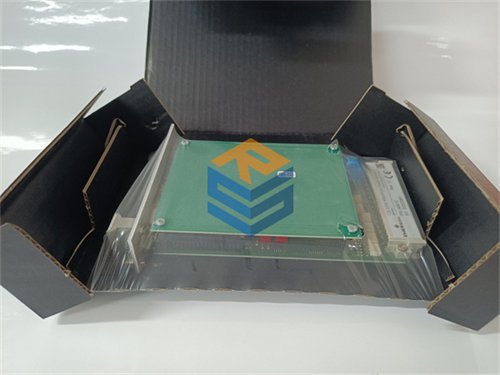

EMERSON A6410

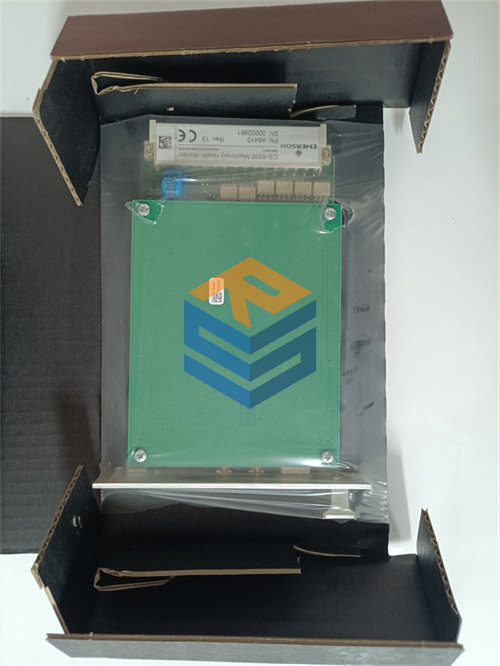

⁦EMERSON A6410⁩ - الصورة ⁦2⁩
⁦EMERSON A6410⁩ - الصورة ⁦3⁩

EMERSON A6410

Have you ever considered the immense forces and precision involved in operating a massive steam turbine in a power plant? The metal components expand and contract significantly with temperature changes, and even a slight misalignment or restricted expansion can lead to catastrophic damage. This is where a specialized guardian like the Emerson A6410 comes into play. It’s not just a sensor; it’s a vital part of the nervous system that monitors the subtle “breathing” of these colossal machines, ensuring they remain safe and operational.

I recall a situation where a critical gas turbine was experiencing minor but persistent issues during startup. Operators were constantly worried about “crabbing” – where the turbine casing bends because one side expands more freely than the other, leading to rotor-to-stator rubs. When we integrated the Emerson A6410 modules into their AMS 6500 system, it provided crystal-clear data on the differential case expansion. This allowed the engineers to pinpoint the exact issue with the guide rails and implement a precise solution. The A6410 gave them the confidence to operate the turbine safely and efficiently, turning a major headache into a manageable situation. It’s amazing how a dedicated monitoring module can make such a tangible difference!

Precision Monitoring for Critical Assets: The Emerson A6410 is designed for the high-reliability demands of critical rotating machinery. Its primary function is to accurately monitor valve position (typically the main steam inlet valve stem position, often displayed as a percentage open, giving operators an indication of turbine load) and machinery case expansion. Case expansion monitoring is especially critical during machine startup and shutdown. It typically uses inductive displacement sensors (LVDTs) mounted to track the axial movement of the turbine casing. By comparing these expansion rates on both sides of the turbine, the A6410 helps prevent dangerous “crabbing” or bending of the casing, which could lead to rotor-stator contact.

Dual-Channel Versatility and Advanced Diagnostics: As a dual-channel module, the A6410 offers flexibility. One channel can be configured to measure both static values (like case expansion) and dynamic quantities (such as displacement, angles, forces, or torsions) using inductive transducers. The second channel is typically reserved for static measurements and relative displacements. This dual-channel capability maximizes monitoring efficiency within a single slot. Furthermore, the A6410, as part of the AMS 6500 system, integrates with AMS software, providing maintenance personnel with advanced predictive and performance diagnostic tools. This allows for early detection of machine malfunctions, leading to proactive maintenance and reduced unscheduled downtime.

API 670 Compliance and Robust Design: The A6410 is API 670 compliant, meaning it adheres to the stringent standards set by the American Petroleum Institute for machinery protection systems. This compliance is a testament to its reliability and accuracy in critical applications. It’s a 1-slot, 3U-sized plug-in module, which helps in reducing cabinet space requirements compared to older, larger cards. Key features include hot-swappable capability, password-protected user configuration, and self-test features that monitor hardware, power inputs, hardware temperature, sensors, and cables. It also provides various outputs like pre- and post-buffered and proportional outputs (0/4-20 mA and 0-10 V) for seamless integration with control systems.



Technical Specifications:



Parameter Value
Product Type Dual Channel Valve and Case Expansion Monitor
System Compatibility Emerson AMS 6500 Machinery Health Monitor (1-slot module)
Channels 2 (Dual Channel)
Sensor Type Designed for use with Inductive Displacement Sensors (e.g., Emerson 9350)
Measurement Functions Valve Position, Case Expansion, Displacement, Angle, Force, Torsion
Output Types 0/4-20 mA (proportional to main value), 0-10 V (proportional to main value), Raw Buffered Output Signal (0-12 V peak-to-peak)
Compliance API 670
Features Hot-swappable, Password-protected configuration, Self-test features, LED indicators
Mounting PCB/EURO card format, DIN 41494 compliant
Dimensions 100 x 160 mm (3.937 x 6.300 in) (PCB); Width: 30.0 mm (1.181 in); Height: 128.4 mm (5.055 in)
Operating Temperature Standard industrial ranges (check specific datasheet for exact range)
Integration Seamless with PlantWeb® and AMS software for diagnostics and control
احصل على عرض أسعار
التصنيف:

الوصف

As an industrial automation expert, I can tell you that the Emerson A6410 is a highly specialized and crucial component within the Emerson AMS 6500 Machinery Health Monitor system. Specifically, the A6410 is a Dual Channel Valve and Case Expansion Monitor.

This isn’t just a generic monitoring card; it’s designed to provide precise and reliable protection for the most critical rotating machinery in a plant, such as steam turbines, gas turbines, compressors, and hydro turbomachinery. It plays a vital role in ensuring these high-value assets operate safely and efficiently by detecting subtle changes in valve position and thermal expansion.



Part One: Optimized SEO Titles



  1. Emerson A6410: Dual Channel Valve and Case Expansion Monitor
  2. A6410 Emerson AMS 6500: Machinery Protection Module
  3. Valve & Case Expansion Monitor A6410: For Turbine Protection
  4. Emerson A6410: API 670 Compliant Machine Health Monitoring
  5. Buy A6410: Genuine Emerson EPRO Protection Cards
  6. A6410 for Sale: Enhance Rotating Machinery Reliability
  7. Emerson AMS 6500 A6410: Precise Displacement Monitoring
  8. A6410: Early Fault Detection for Turbomachinery
  9. Emerson A6410: Integral to PlantWeb® and AMS Software
  10. A6410 Monitor: Reducing Downtime in Critical Operations



Part Two: Brief Product Description



The Emerson A6410 Dual Channel Valve and Case Expansion Monitor is a 1-slot plug-in module for the Emerson AMS 6500 Machinery Health Monitor system. It’s engineered to accurately monitor valve position and the thermal expansion of machinery casings, primarily in large rotating equipment like turbines and compressors. Compliant with API 670 standards, it provides reliable machinery protection by comparing parameters against alarm setpoints and activating alarms and relays when necessary.

  • Product Type: Valve and Case Expansion Monitor Module
  • System: Emerson AMS 6500 Machinery Health Monitor (formerly CSI 6500)
  • Function: Monitors valve position and machinery case expansion
  • Channels: Dual-channel
  • Compliance: API 670



Part Three: Detailed Product Description



Have you ever considered the immense forces and precision involved in operating a massive steam turbine in a power plant? The metal components expand and contract significantly with temperature changes, and even a slight misalignment or restricted expansion can lead to catastrophic damage. This is where a specialized guardian like the Emerson A6410 comes into play. It’s not just a sensor; it’s a vital part of the nervous system that monitors the subtle “breathing” of these colossal machines, ensuring they remain safe and operational.

I recall a situation where a critical gas turbine was experiencing minor but persistent issues during startup. Operators were constantly worried about “crabbing” – where the turbine casing bends because one side expands more freely than the other, leading to rotor-to-stator rubs. When we integrated the Emerson A6410 modules into their AMS 6500 system, it provided crystal-clear data on the differential case expansion. This allowed the engineers to pinpoint the exact issue with the guide rails and implement a precise solution. The A6410 gave them the confidence to operate the turbine safely and efficiently, turning a major headache into a manageable situation. It’s amazing how a dedicated monitoring module can make such a tangible difference!

Precision Monitoring for Critical Assets: The Emerson A6410 is designed for the high-reliability demands of critical rotating machinery. Its primary function is to accurately monitor valve position (typically the main steam inlet valve stem position, often displayed as a percentage open, giving operators an indication of turbine load) and machinery case expansion. Case expansion monitoring is especially critical during machine startup and shutdown. It typically uses inductive displacement sensors (LVDTs) mounted to track the axial movement of the turbine casing. By comparing these expansion rates on both sides of the turbine, the A6410 helps prevent dangerous “crabbing” or bending of the casing, which could lead to rotor-stator contact.

Dual-Channel Versatility and Advanced Diagnostics: As a dual-channel module, the A6410 offers flexibility. One channel can be configured to measure both static values (like case expansion) and dynamic quantities (such as displacement, angles, forces, or torsions) using inductive transducers. The second channel is typically reserved for static measurements and relative displacements. This dual-channel capability maximizes monitoring efficiency within a single slot. Furthermore, the A6410, as part of the AMS 6500 system, integrates with AMS software, providing maintenance personnel with advanced predictive and performance diagnostic tools. This allows for early detection of machine malfunctions, leading to proactive maintenance and reduced unscheduled downtime.

API 670 Compliance and Robust Design: The A6410 is API 670 compliant, meaning it adheres to the stringent standards set by the American Petroleum Institute for machinery protection systems. This compliance is a testament to its reliability and accuracy in critical applications. It’s a 1-slot, 3U-sized plug-in module, which helps in reducing cabinet space requirements compared to older, larger cards. Key features include hot-swappable capability, password-protected user configuration, and self-test features that monitor hardware, power inputs, hardware temperature, sensors, and cables. It also provides various outputs like pre- and post-buffered and proportional outputs (0/4-20 mA and 0-10 V) for seamless integration with control systems.



Technical Specifications:



Parameter Value
Product Type Dual Channel Valve and Case Expansion Monitor
System Compatibility Emerson AMS 6500 Machinery Health Monitor (1-slot module)
Channels 2 (Dual Channel)
Sensor Type Designed for use with Inductive Displacement Sensors (e.g., Emerson 9350)
Measurement Functions Valve Position, Case Expansion, Displacement, Angle, Force, Torsion
Output Types 0/4-20 mA (proportional to main value), 0-10 V (proportional to main value), Raw Buffered Output Signal (0-12 V peak-to-peak)
Compliance API 670
Features Hot-swappable, Password-protected configuration, Self-test features, LED indicators
Mounting PCB/EURO card format, DIN 41494 compliant
Dimensions 100 x 160 mm (3.937 x 6.300 in) (PCB); Width: 30.0 mm (1.181 in); Height: 128.4 mm (5.055 in)
Operating Temperature Standard industrial ranges (check specific datasheet for exact range)
Integration Seamless with PlantWeb® and AMS software for diagnostics and control



Key Applications:



The Emerson A6410 is essential for industries relying on large, critical rotating machinery:

  • Power Generation Plants (Thermal, Nuclear, Hydro): Monitoring steam turbines, gas turbines, and generators for valve position and thermal expansion to prevent damage during startup, shutdown, and normal operation.
  • Oil & Gas Refineries and Pipelines: Protecting large compressors and pumps from case expansion issues that could lead to internal rubbing or misalignment.
  • Chemical Processing Facilities: Ensuring the safe and continuous operation of critical pumps and turbines that handle volatile or high-temperature fluids.
  • Steel and Metal Industries: Monitoring expansion and position in large rolling mill machinery and other heavy rotating equipment.
  • Marine Propulsion Systems: In large vessels, monitoring the expansion and alignment of turbine or engine components for safe operation.



Related Products:



To form a complete machinery protection system with the Emerson A6410, you would integrate it with other components of the AMS 6500 system, including:

  • Emerson AMS 6500 Chassis: The rack or frame (e.g., 19″ wide chassis) that houses the A6410 and other protection modules.
  • Emerson AMS 6500 Power Supply Module: To provide power to the chassis and its installed modules.
  • Emerson Inductive Displacement Sensors: Specifically, models like the 9350 series are typically used with the A6410 for accurate displacement measurements.
  • Other AMS 6500 Monitor Modules: Such as vibration monitors (e.g., A6110, A6210), speed monitors (A6312), or temperature monitors (A6630) to build a comprehensive API 670 compliant system.
  • Emerson DeltaV or Ovation Process Automation Systems: For seamless integration of machinery health information into the plant’s main control system.
  • Emerson AMS Machinery Manager Software: For advanced predictive and performance diagnostics, trending, and alarm management.
