EMERSON+5X00109G02
⁦EMERSON+5X00109G02⁩ - الصورة ⁦2⁩

EMERSON+5X00109G02

  • EMERSON+5X00109G02

Product Type:

  • DCS PLC Control Module

Manufacturer:

  • Emerson Electric Co.

Control System Compatibility:

  • DeltaV™ Distributed Control System (DCS)

Physical and Mechanical Characteristics:

  • Form Factor: Typically rack-mounted or DIN rail mounted depending on configuration.
  • Dimensions: Approx. 8.6 x 16.5 x 6.5 cm (varies based on exact model configuration).
  • Weight: Approx. 1.5–2 kg (depending on power options and module configuration).
  • Mounting: Rack-mounted within DeltaV™ system chassis or DIN rail mounted for more modular setups.
  • Cooling: Passive cooling, with optional active cooling in high-density configurations.
  • Power Supply: Operates at 24V DC, typically used in industrial control systems.
احصل على عرض أسعار
التصنيف:

الوصف

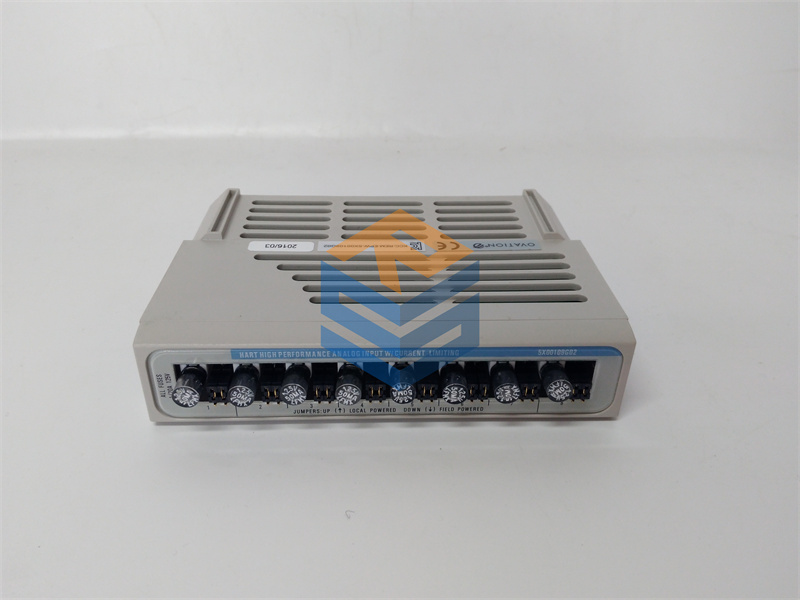

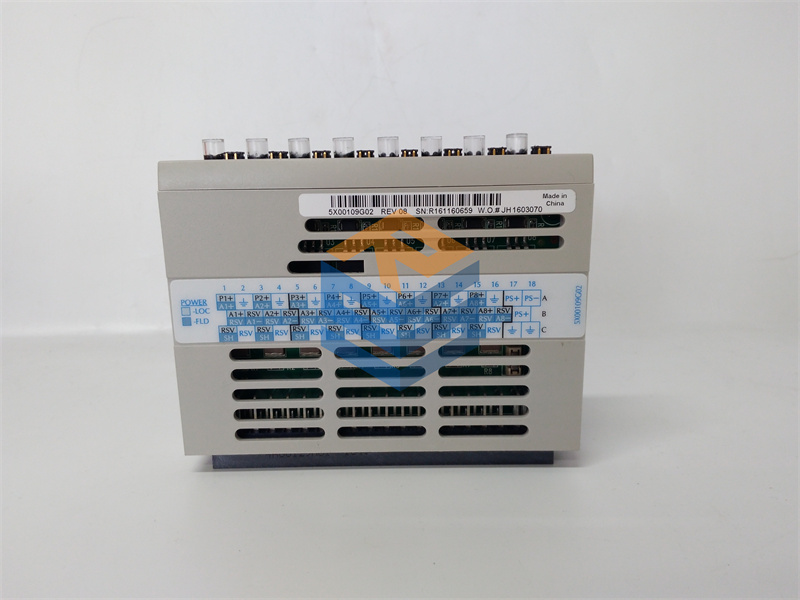

EMERSON+5X00109G02 DCS PLC Module

1. Product Name:

EMERSON+5X00109G02 DCS PLC Module

2. Product Description:

The EMERSON+5X00109G02 DCS PLC Module is an advanced, high-performance control module designed for use in Emerson’s DeltaV™ Distributed Control System (DCS). This module is engineered to provide exceptional automation and control for a wide variety of industrial processes, ensuring optimized operations across multiple sectors, such as chemical processing, oil & gas, power generation, pharmaceuticals, and food & beverage.

The 5X00109G02 module serves as a programmable logic controller (PLC) within the DCS environment, designed to offer high-speed data processing, flexible I/O configurations, redundant architecture, and seamless integration with other Emerson control systems. It is built for mission-critical applications, delivering high availability and reliability in complex, high-demand environments.

With advanced diagnostics, hot-swappable capabilities, and scalability, this module is ideal for industries that require continuous, real-time monitoring and control of various parameters such as temperature, pressure, flow, and level. The EMERSON+5X00109G02 DCS PLC Module helps ensure process safety, regulatory compliance, and efficiency in dynamic operational settings.

3. Product Parameters and Specifications:

Model Number:

  • EMERSON+5X00109G02

Product Type:

  • DCS PLC Control Module

Manufacturer:

  • Emerson Electric Co.

Control System Compatibility:

  • DeltaV™ Distributed Control System (DCS)

Physical and Mechanical Characteristics:

  • Form Factor: Typically rack-mounted or DIN rail mounted depending on configuration.
  • Dimensions: Approx. 8.6 x 16.5 x 6.5 cm (varies based on exact model configuration).
  • Weight: Approx. 1.5–2 kg (depending on power options and module configuration).
  • Mounting: Rack-mounted within DeltaV™ system chassis or DIN rail mounted for more modular setups.
  • Cooling: Passive cooling, with optional active cooling in high-density configurations.
  • Power Supply: Operates at 24V DC, typically used in industrial control systems.

Operating Conditions:

  • Operating Temperature: 0°C to 60°C (32°F to 140°F), suitable for standard industrial environments.
  • Storage Temperature: -40°C to 85°C.
  • Humidity: 10% to 95% (non-condensing).
  • Vibration Resistance: Designed to handle moderate industrial vibration levels.
  • Shock Resistance: Capable of enduring typical industrial shock levels during handling and installation.

Key Features:

  • High-Speed Processing: Designed for real-time control of industrial processes, allowing for immediate response to system changes.
  • Redundant Power Supply: Supports redundant power for continuous operation in case of power failure.
  • Hot-Swappable: Capable of being hot-swapped with no system downtime, ensuring minimal disruptions.
  • Modular I/O Configuration: Compatible with digital and analog I/O modules for flexible system configuration.
  • Advanced Diagnostics: Built-in self-diagnostics to detect and alert for system faults, reducing troubleshooting time.
  • Scalability: Easily expandable by adding additional I/O modules, allowing the system to grow with process demands.
  • Ethernet Communication: Compatible with Ethernet-based communication protocols like Ethernet/IP, Modbus TCP, and PROFINET, ensuring integration into a variety of automation networks.

Communication and Protocols:

  • Communication Protocols: The module supports Ethernet/IP, Modbus TCP, PROFINET, and other industry-standard protocols, ensuring seamless integration into existing Emerson systems and third-party devices.
  • Redundant Communication: Features redundant communication paths, enhancing reliability and fault tolerance in critical applications.
  • Remote Monitoring: Supports remote diagnostics and monitoring for simplified maintenance and troubleshooting.

I/O Capabilities:

  • Digital I/O: Supports discrete signals for on/off control applications (e.g., switches, sensors, relays).
  • Analog I/O: Capable of handling continuous signals for process variables such as temperature, pressure, flow, and level measurement.
  • Fieldbus Integration: Supports integration with fieldbus I/O systems, providing increased flexibility in system design and configuration.

4. Safety and Compliance:

  • Safety Integrity Level (SIL): Designed for use in SIL2 and SIL3 safety-critical applications, ensuring compliance with industry safety standards.
  • Environmental Compliance: Meets international standards such as RoHS and WEEE for environmental protection.
  • Certifications: Certified with UL, CE, and CSA marks to meet global industrial safety and performance standards.

5. Applications:

The EMERSON+5X00109G02 DCS PLC Module is used in a variety of critical industrial applications, such as:

  1. Chemical and Petrochemical:

    • Process control in reactors, distillation columns, and chemical mixing operations.
    • Safety instrumented systems (SIS) for emergency shutdowns (ESD).

  2. Oil & Gas:

    • Pipeline monitoring, drilling operations, and refining processes.
    • Flow control and pressure monitoring in offshore and onshore facilities.

  3. Power Generation:

    • Turbine control, boiler monitoring, and energy distribution.
    • Renewable energy systems such as wind and solar farms.

  4. Pharmaceutical and Food & Beverage:

    • Sterilization, temperature control, and packaging automation.
    • Batch processing and quality control systems.

  5. Water and Wastewater Treatment:

    • Real-time monitoring of water quality parameters (e.g., pH, turbidity, conductivity).
    • Flow control in large-scale treatment plants.

6. Conclusion:

The EMERSON+5X00109G02 DCS PLC Module provides powerful, reliable control and automation for industries requiring high-performance process control and safety compliance. With advanced communication options, redundancy, modular I/O, and support for real-time monitoring, the module is an ideal choice for large-scale automation projects in industries such as chemical manufacturing, power generation, oil & gas, and pharmaceuticals. Its scalability, fault tolerance, and advanced diagnostics ensure continuous, efficient, and safe operation in demanding environments. ABB CDA11-FBP.0
