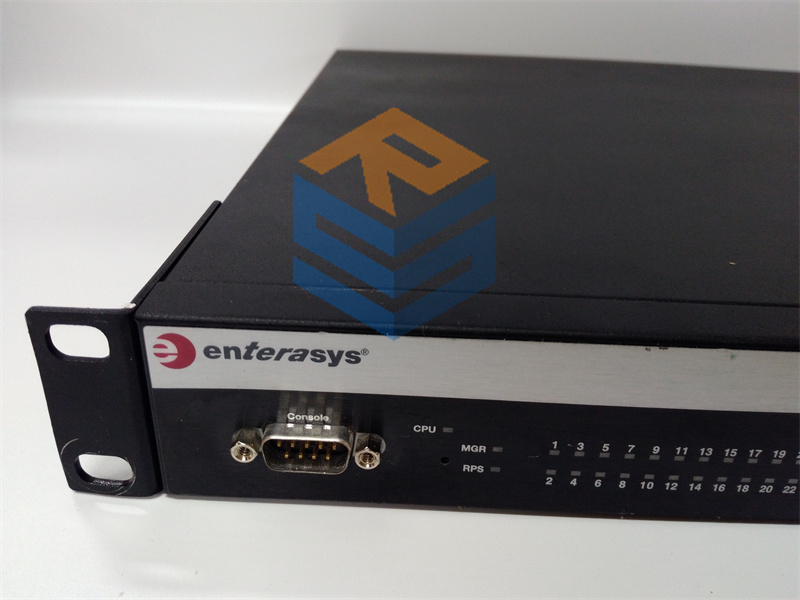

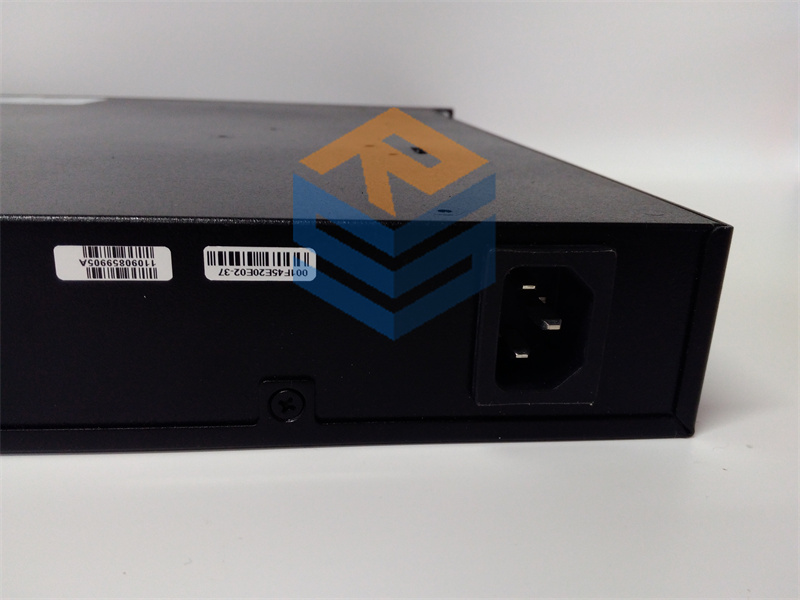

Enterasys A4H124-24TX P0973JM PLC Module
Product Name:
Enterasys A4H124-24TX P0973JM PLC Module
Product Description:
The Enterasys A4H124-24TX P0973JM is a network switch module designed for industrial automation and networking systems. Manufactured by Enterasys Networks, a division of Extreme Networks, this module is intended to be used in conjunction with PLC (Programmable Logic Controllers) and other industrial control systems that require reliable and high-performance network connectivity.
The A4H124-24TX P0973JM module features a 24-port 10/100/1000 Mbps Ethernet switch, providing robust network connectivity for industrial applications, such as factory automation, process control, and critical communication systems. The module is engineered to deliver reliable data transfer speeds and optimized network performance, allowing seamless communication between various automation devices, sensors, and control systems.
As part of Enterasys’ suite of network equipment, this module can be integrated with PLC systems, SCADA systems, and industrial IoT solutions, ensuring secure, fast, and scalable communication across industrial networks.
Product Parameters & Specifications:
General Information:
- Model: A4H124-24TX
- Part Number: P0973JM
- Type: Network Switch Module
- Brand: Enterasys (Extreme Networks)
- Category: Industrial Networking Equipment
Key Features:
-
24-Port Ethernet Switch:
- The A4H124-24TX module is equipped with 24 Ethernet ports for network connectivity, supporting 10/100/1000 Mbps speeds. It enables fast data transfer rates, ensuring efficient communication in automation and control networks.
-
Gigabit Ethernet Support:
- The module supports Gigabit Ethernet (1 Gbps) speeds, which is ideal for high-performance industrial networks where rapid data transmission is required.
-
Layer 2 Switching:
- The module operates as a Layer 2 Ethernet switch, meaning it forwards data at the data link layer (MAC address level), providing fast and efficient traffic management for devices connected to the network.
-
Quality of Service (QoS):
- The A4H124-24TX module supports Quality of Service (QoS), allowing for the prioritization of certain types of traffic, such as real-time control data and critical system communications, over less time-sensitive data.
-
Power over Ethernet (PoE):
- Some of the ports on the A4H124-24TX may support Power over Ethernet (PoE), allowing network devices (e.g., IP cameras, sensors, or wireless access points) to be powered directly through the Ethernet cable, reducing the need for separate power supplies.
-
Compact and Reliable Design:
- Designed for industrial environments, the module has a ruggedized form factor that can withstand harsh conditions, including temperature fluctuations, vibrations, and dust.
-
Secure and Scalable Networking:
- The module is ideal for creating secure and scalable networks that can grow as the requirements of the control system evolve. It supports VLANs, Access Control Lists (ACLs), and other security measures to protect network traffic and sensitive data.
Electrical and Environmental Specifications:
-
Operating Voltage:
- The module typically operates on 12V DC or 24V DC power inputs (depending on the setup), often supplied by a central power source or PLC power supply.
-
Power Consumption:
- Typically 30W to 50W, depending on the active ports and data traffic load.
-
Temperature Range:
- Operating Temperature: 0°C to 50°C (32°F to 122°F).
- Storage Temperature: -20°C to 70°C (-4°F to 158°F).
-
Humidity:
- Operating Humidity: 10% to 90% non-condensing.
-
Vibration Resistance:
- The module is designed to withstand moderate vibration typical in industrial settings and complies with IEC 60068-2-6 vibration standards.
-
Protection Class:
- IP20 protection rating, indicating protection from solid objects greater than 12mm (not dust-tight, but provides protection from touch).
Inputs/Outputs:
- Ethernet Ports:
- 24 x 10/100/1000Base-T Ethernet ports (Gigabit Ethernet), allowing for multiple devices to be connected to the network simultaneously.
- Port Configuration:
- Each of the Ethernet ports supports auto-negotiation for speed and duplex mode, ensuring optimal performance in different network conditions.
- PoE (Power over Ethernet):
- Some of the ports may support Power over Ethernet (PoE), providing power to devices like IP cameras or access points over the same Ethernet cable.
Network & Communication Features:
-
VLAN Support:
- The module supports VLANs (Virtual Local Area Networks), allowing for network segmentation and traffic isolation for enhanced security and efficiency.
-
QoS (Quality of Service):
- Implements QoS to prioritize critical data traffic, ensuring high-performance communication for real-time control applications.
-
Spanning Tree Protocol (STP):
- Supports STP for loop-free redundant network paths, enhancing network reliability.
-
Port Mirroring:
- Provides port mirroring for traffic monitoring and troubleshooting.
-
Link Aggregation:
- Supports Link Aggregation to combine multiple Ethernet links for increased bandwidth and redundancy.
Certifications & Compliance:
-
IEEE 802.3 Standards:
- Complies with IEEE 802.3 standards for Ethernet networking, ensuring compatibility with a wide range of network devices.
-
CE Certified:
- Complies with CE marking requirements for safety and environmental standards in Europe.
-
RoHS Compliant:
- Fully compliant with the RoHS (Restriction of Hazardous Substances) directive, ensuring environmentally friendly design and manufacturing practices.
-
UL Listed:
- The module meets UL safety standards, ensuring safe use in industrial environments.
Typical Applications:
-
Industrial Networking:
- Used in industrial environments to provide reliable Ethernet-based communication for automation systems, PLCs, sensors, and actuators.
-
Factory Automation:
- Ideal for factory networks that need high-performance, high-availability, and secure communication to manage automated processes, robots, and machine-to-machine communication.
-
Process Control:
- Supports real-time communication in process control systems, where precise data transfer and network reliability are essential.
-
SCADA Systems:
- Can be integrated into SCADA systems for remote monitoring and control, providing the backbone for secure and fast data communication.
-
IoT and Smart Manufacturing:
- Suitable for connecting industrial IoT devices and sensors in smart manufacturing environments, enabling efficient data collection and analysis.
Summary of Key Features:
- 24 x Gigabit Ethernet ports for fast and reliable industrial networking.
- Power over Ethernet (PoE) support for powering connected devices.
- Quality of Service (QoS) for traffic prioritization in real-time applications.
- VLAN support and port mirroring for improved network management.
- Layer 2 switching with auto-negotiation and redundancy support for network reliability.
- Industrial-grade design with rugged construction for harsh environments.
- Compliance with major certifications like CE, RoHS, and UL for safety and environmental standards.
If you need further clarification or more details on specific aspects of this module, feel free to ask!
