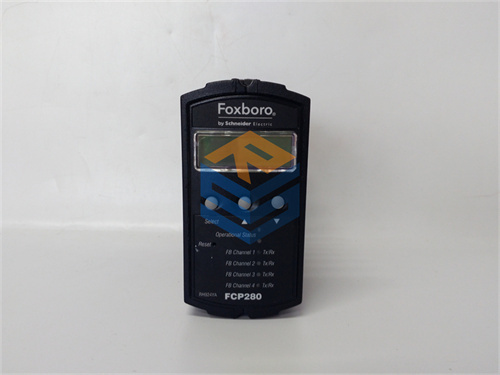

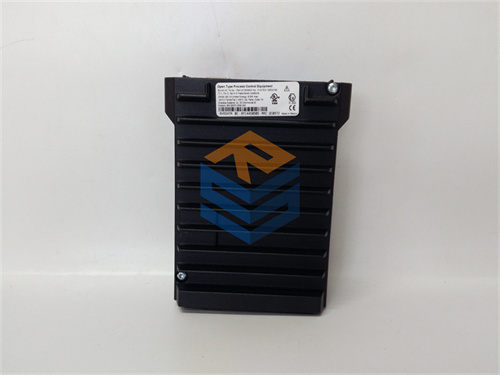

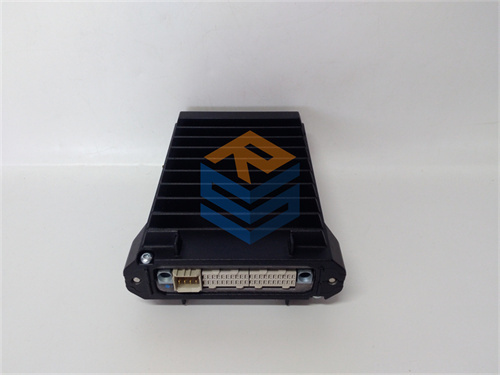

FOXBORO FCP280 RH924YA

الوصف

As an industrial automation expert, the FOXBORO FCP280 RH924YA is a high-performance and critical component within the Foxboro Distributed Control System (DCS), specifically recognized as a Field Control Processor. The “FCP” stands for Field Control Processor, and the “280” designates its model series. “RH924YA” is the specific part number or product code for this module.

This processor is the “brain” of a distributed control system, responsible for executing complex control strategies, processing data from field devices, and ensuring the smooth and reliable operation of an industrial plant. It’s designed to perform regulatory, logic, timing, and sequential control, as well as data acquisition and alarm detection/notification.

Crucially, the FCP280 offers optional fault-tolerant operation, meaning it can be deployed in a redundant configuration (two modules working in parallel) to provide the highest levels of availability and non-stop operation, which is vital for critical processes where downtime is unacceptable.

Part One: Optimized SEO Titles

1. FOXBORO FCP280 RH924YA: Field Control Processor (DCS)
2. RH924YA Foxboro: Fault-Tolerant Process Control Module
3. Foxboro FCP280: High-Performance Distributed Control System CPU
4. Buy FCP280 RH924YA: Genuine Foxboro DCS Controller
5. RH924YA for Sale: Enhancing Industrial Automation Reliability
6. FOXBORO FCP280: Regulatory, Logic, and Sequential Control
7. DCS Processor FCP280 RH924YA: For Critical Plant Operations
8. Foxboro FCP280: EcoStruxure Foxboro DCS Core Component
9. RH924YA Module: Ensuring Non-Stop Process Operation
10. FOXBORO FCP280: Advanced Data Acquisition & Alarm Management

Part Two: Brief Product Description

The FOXBORO FCP280 RH924YA is a powerful Field Control Processor module for the Foxboro (now Schneider Electric EcoStruxure Foxboro) Distributed Control System (DCS). It performs high-performance regulatory, logic, timing, and sequential control, along with data acquisition and alarm management. The FCP280 features a patented, optionally fault-tolerant design (using two modules in parallel) to deliver superior reliability and ensure non-stop operation for critical industrial processes. It connects to the Foxboro DCS control network via standard Ethernet and communicates with various Fieldbus Modules (FBMs).

• Product Type: Field Control Processor (CPU Module)
• Manufacturer: Foxboro (now part of Schneider Electric)
• Model/Part Number: FCP280 / RH924YA
• Primary Function: Executes control logic, data acquisition, alarm management
• Key Features: Optional fault tolerance, high performance, robust design for field mounting.

Part Three: Detailed Product Description

Have you ever considered the sheer complexity involved in orchestrating a modern industrial plant, where thousands of measurements, control valves, and motors must work in perfect harmony, often 24/7? At the heart of such an operation lies a sophisticated Distributed Control System (DCS), and a vital component within it is the FOXBORO FCP280 RH924YA Field Control Processor. This isn’t just a simple PLC; it’s a high-performance, often fault-tolerant “brain” designed to run the most critical and complex industrial processes with unwavering reliability.

I recall a major upgrade project at a large petrochemical refinery. Their old control system was showing its age, with increasing concerns about single points of failure. The decision was made to upgrade to a system utilizing the Foxboro FCP280s in a fault-tolerant configuration. During commissioning, a power surge hit one of the control cabinets. While some other equipment tripped, the FCP280 pair seamlessly transferred control, and the critical process continued without a hitch. This real-world demonstration of its “non-stop operation” capability cemented its value; the minimal downtime saved the plant potentially millions in lost production. The FCP280 truly delivers on its promise of high availability.

The Powerhouse of Process Control: The FOXBORO FCP280 RH924YA is engineered to deliver dependable performance for a wide range of control functions:

• Regulatory Control: Maintaining process variables (like temperature, pressure, flow) at desired setpoints using PID (Proportional-Integral-Derivative) and other advanced algorithms.
• Logic Control: Implementing discrete control based on Boolean logic (e.g., interlocks, sequences, safety functions).
• Timing and Sequential Control: Managing batch processes, startup/shutdown sequences, and other time-based operations.
• Data Acquisition: Collecting vast amounts of data from connected Fieldbus Modules (FBMs) that interface with field instruments.
• Alarm Detection and Notification: Constantly monitoring process values against set limits and generating alarms to alert operators of abnormal conditions.

The FCP280 offers significantly increased capacity and performance compared to previous Foxboro controllers, allowing it to handle more complex control strategies and a larger number of I/O points efficiently.

Patented Fault-Tolerant Design for Unmatched Availability: One of the most defining features of the FCP280 is its patented fault-tolerant design. In this configuration, two FCP280 modules are installed in parallel on a dedicated baseplate. Both modules receive and process information simultaneously. If one module experiences a hardware failure, the other immediately and seamlessly takes over control without any interruption to the process. Key aspects of this fault tolerance include:

• Bit-for-Bit Matching: Both modules continuously compare their outputs, ensuring that no bad messages are ever sent to the field.
• Online Image Upgrade (OLUG): Allows for firmware and software upgrades on a fault-tolerant pair without shutting down the process.
• Extensive Self-Diagnostics: Continuously monitors the health of both modules, detecting faults and facilitating swift resolution.

This level of redundancy is crucial for applications where even momentary downtime can lead to significant safety risks, environmental incidents, or massive financial losses.

Seamless Integration and Robustness: The FCP280 connects to the Foxboro DCS Control Network (The Mesh) via standard 100 Mbps Ethernet (fiber optic or copper), providing high-speed communication within the distributed architecture. It communicates with various Fieldbus Modules (FBMs), including both 100 Series and 200 Series FBMs, which handle the interface with field devices.

The module itself is designed for field mounting in enclosures and boasts a rugged, die-cast aluminum housing. It is rated for Class G3 harsh environments and is CE certified, meaning it can operate reliably in challenging industrial conditions without requiring expensive, specialized cabinets.

Technical Specifications (Based on common information, always consult official Foxboro/Schneider Electric PSS documents for precise details):

Key Applications:

The FOXBORO FCP280 RH924YA is a cornerstone in highly demanding and critical process industries:

• Refining and Petrochemicals: Complex control of distillation columns, reactors, furnaces, and pipeline operations where safety and efficiency are paramount.
• Power Generation: Managing boiler control, turbine operation, balance-of-plant systems, and grid synchronization in power plants.
• Chemicals and Specialty Chemicals: Precise control of batch processes, continuous reactions, and material blending.
• Mining and Metals: Automation of crushing, grinding, smelting, and refining processes.
• Water and Wastewater Treatment: Large-scale control of pumping stations, filtration, and chemical treatment processes.
• Food and Beverage: Automation of large-scale production, including brewing, pasteurization, and packaging lines.
• Life Sciences and Pharmaceuticals: Strict control over environmental conditions, mixing, and sterilization processes to meet regulatory standards.

Related Products:

The FOXBORO FCP280 RH924YA is part of the broader Foxboro DCS (now EcoStruxure Foxboro DCS) ecosystem. It works in conjunction with:

• Foxboro Baseplates: Specific baseplates (e.g., RH924YL for horizontal, RH924YF for vertical) designed to house one or two FCP280 modules.
• Foxboro Fieldbus Modules (FBMs): These are the I/O modules that connect directly to field instruments (sensors, actuators). The FCP280 supports both 100 Series and 200 Series FBMs (e.g., FBM201 Analog Input, FBM203 Analog Output, FBM232 Ethernet Communication Module).
• Network Adapters: Fiber (RH924WA) or Copper (RH924UQ) adapters installed on the baseplate for connecting to the control network.
• Foxboro DCS Control Network (The Mesh): The high-speed Ethernet network that facilitates communication between controllers, workstations, and other system components.
• Foxboro Evo Control Core Services Software: The necessary system software (v9.0 or later) required for the FCP280 to operate.
• Foxboro Workstations: Operator and engineering workstations running Foxboro HMI and configuration software.
