Brief Product Description

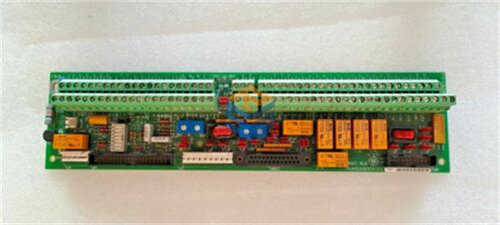

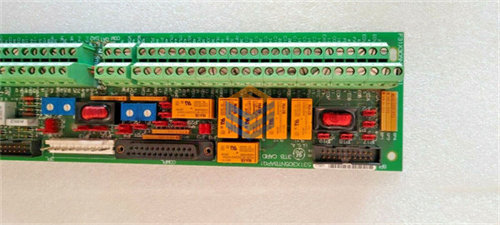

The GE 531X305NTBAPG1 is an NTB/3TB Terminal Board developed by General Electric. It serves as a comprehensive interface for external signal-level I/O in GE drive systems, especially those within the EX2000 Excitation System. This board integrates various functionalities, including analog and digital inputs, relay outputs, encoder interfaces, and provides regulated and unregulated power outputs for external devices. Its versatility makes it a crucial component for connecting and controlling diverse equipment in industrial automation, ensuring robust and flexible operation of GE drives and exciters.
- Product Type: NTB/3TB Terminal Board
- Manufacturer: General Electric (GE)
- Series Compatibility: Primarily 531X Series Drive Boards, and specifically used within the EX2000 Excitation System.
- Primary Function: Provides terminal connections and interface circuitry for external I/O signals, including analog, digital, and relay outputs, along with encoder support and power outputs.
Detailed Product Description
As someone deeply familiar with industrial control, I can tell you that the GE 531X305NTBAPG1 is far more than just a “board.” It’s a powerhouse of connectivity and interfacing, designed to bridge the gap between the sophisticated digital control logic of a GE drive system and the varied, often messy, world of physical sensors and actuators. In systems like the EX2000 Excitation System, which controls large generators and motors, precise and reliable signal conditioning is absolutely paramount.
The 531X305NTBAPG1 is typically housed within the drive (or exciter) cabinet. Its core role is to centralize the connection terminals for the majority of external, signal-level I/O. This means that instead of having numerous individual wires going directly into the main control board, they neatly terminate on the NTB/3TB board, making wiring cleaner, troubleshooting easier, and providing a crucial layer of signal conditioning and protection.
Comprehensive I/O Capabilities:
This board is a master of versatility, offering a wide array of I/O types:
- Digital Control Inputs: It supports multiple general-purpose control inputs (up to 24 VDC) as well as special-purpose digital inputs (like RESET and CONTROL ON). Hardware jumpers allow configuration for positive or negative logic, providing flexibility for different field devices.
- Low-Level Analog I/O: The board includes provisions for low-level analog inputs and outputs, which are essential for connecting to sensors (e.g., temperature, pressure, flow) and sending analog control signals. Four potentiometers on the board allow for precise scaling of these analog I/O signals.
- Relay Outputs: A crucial feature for controlling discrete devices. The board provides a combination of seven Form A and Form C relay outputs. These relays have contacts rated at 120 VAC, making them suitable for switching various external loads like contactors, indicator lights, or small motors.
- Encoder Interface: For applications requiring precise speed and position feedback (common in motor drive systems), the NTB/3TB includes a differential A-quad-B encoder interface with a marker channel. This interface is optically isolated for noise immunity and can be configured via jumpers for +5 V or 15 V encoders.
Power Distribution and Robustness:
Beyond just I/O, the 531X305NTBAPG1 also acts as a power distribution point for external use. It provides:
- Regulated +5 VDC and +15 VDC outputs, each with a 300 mA current capacity.
- Unregulated 24 VDC output with a 500 mA current capacity.
- 120 VAC output with a 0.5 A current capacity.
This integrated power supply capability means fewer external components are needed, simplifying wiring and reducing potential points of failure. The board is part of the robust 531X series, known for its durability and suitability for demanding industrial environments. Proper handling and installation by trained personnel are always recommended due to the sensitive electronic components and high-voltage connections.
Technical Specifications
Key Features and Advantages
- Versatile I/O Interface: The ability to handle a mix of analog, digital, and relay signals, along with encoder feedback, makes it a highly versatile hub for connecting various field devices to the drive control system.
- Integrated Power Supply for External Devices: By providing regulated and unregulated power outputs, it simplifies the wiring for external sensors and actuators, reducing the need for separate power supplies.
- Enhanced Drive System Integration: Designed specifically for GE’s 531X series drives and the EX2000 Excitation System, it ensures seamless compatibility and optimized performance.
- Improved Troubleshooting and Maintenance: Centralizing I/O connections on a single board with clear terminals makes it easier for technicians to trace signals, diagnose issues, and perform maintenance.
- Robust and Reliable Design: As a component of GE’s industrial control lineup, it’s built to withstand the demanding conditions found in plant environments, contributing to system uptime and longevity.
- Configurable Settings: Jumpers and potentiometers allow for on-board configuration of inputs (logic type, encoder voltage) and analog signal scaling, providing flexibility to adapt to specific application requirements.
Application Areas
The GE 531X305NTBAPG1 is primarily found in applications involving large motors, generators, and industrial drive systems where precise control and extensive external interfacing are required:
- Power Generation Plants: Crucial in the EX2000 Excitation System for controlling the excitation of large generators, ensuring stable voltage output and grid synchronization.
- Industrial Drive Systems: Used in various industrial processes that rely on large AC or DC motor drives, such as steel mills, paper mills, mining operations, and material handling systems, to interface with field sensors, actuators, and control devices.
- Metal Processing: In rolling mills and other metal processing applications, where precise speed, tension, and position control of heavy machinery are vital.
- Pulp and Paper Industry: Controlling large motors and processes that demand high precision and robust I/O capabilities.
- Oil & Gas: In pump and compressor stations where large motors or generators require sophisticated control and extensive field device integration.
Related Products
The GE 531X305NTBAPG1 operates as part of a larger GE drive or excitation system. Here are some related components you’d typically find working alongside it:
- GE 531X Series Drive Control Boards (e.g., 531X301DCCAFG2, 531X300CCHAFM5): These are the main control boards of the drive system to which the NTB/3TB connects. They process the core drive logic and send/receive signals via the terminal board.
- GE 531X Series Power Supply Boards (e.g., 531X303MCPARG1): These boards provide the necessary power to the drive control board and, in turn, often connect to the NTB/3TB to supply power outputs for external use.
- GE EX2000 Excitation System Components: The broader system includes various modules for control, regulation, and protection of generator excitation. The 531X305NTBAPG1 is a foundational piece for its external connectivity.
- Industrial Sensors and Actuators: This board directly interfaces with real-world devices such as proximity sensors, limit switches, pressure transducers, temperature sensors, solenoid valves, and motor contactors.
- Human-Machine Interfaces (HMIs) / Operator Panels: While not directly connected, the signals processed by the NTB/3TB often relate to information displayed on HMIs, allowing operators to monitor and interact with the drive system.
The GE 531X305NTBAPG1 is a workhorse, a testament to GE’s commitment to robust and integrated industrial control. Its comprehensive I/O and power distribution capabilities make it indispensable for demanding drive and excitation applications.
