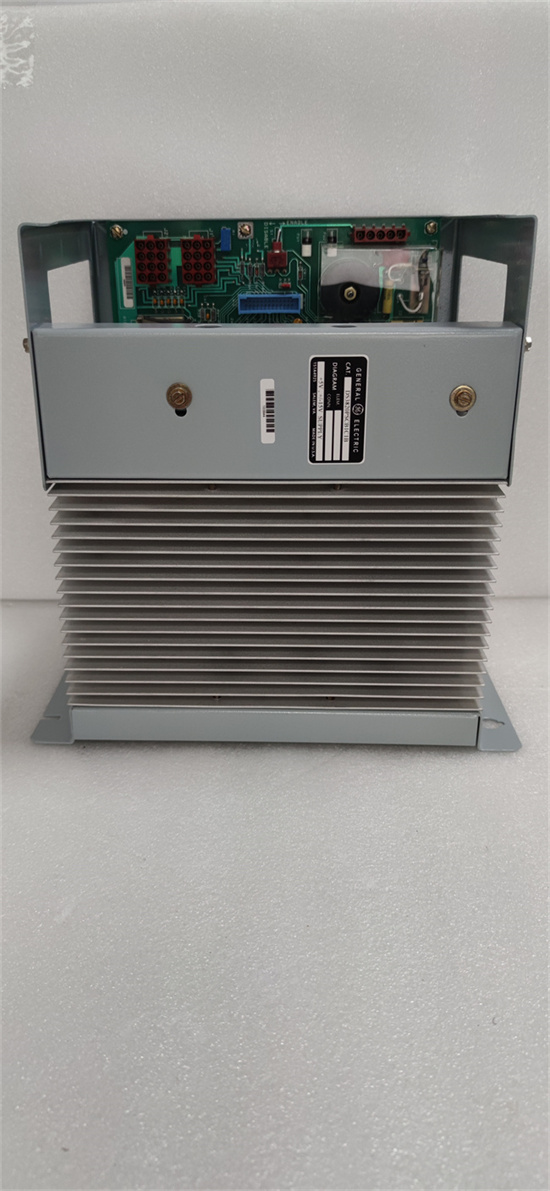

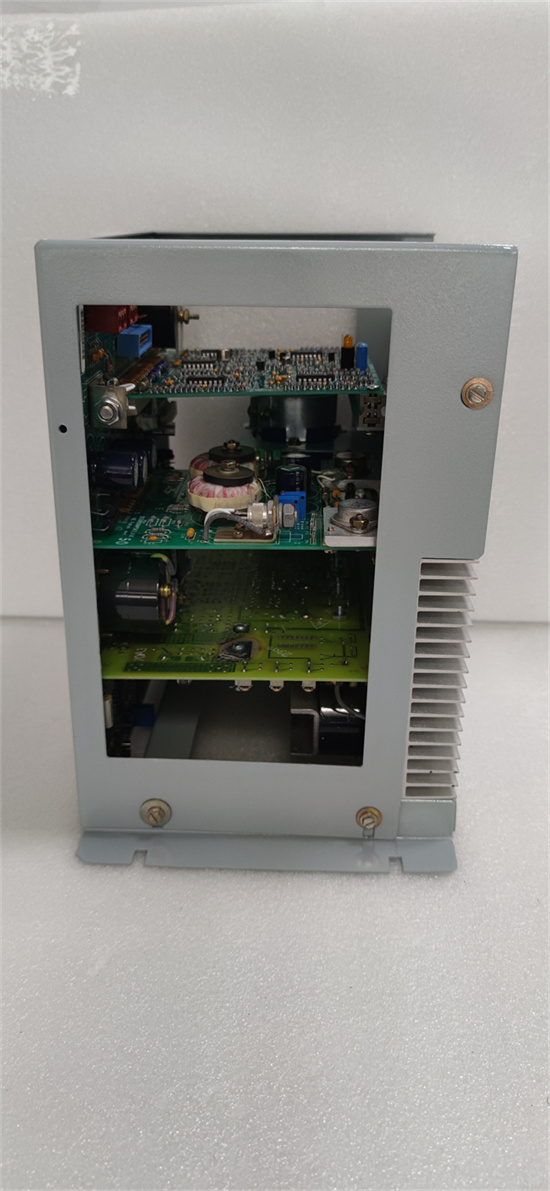

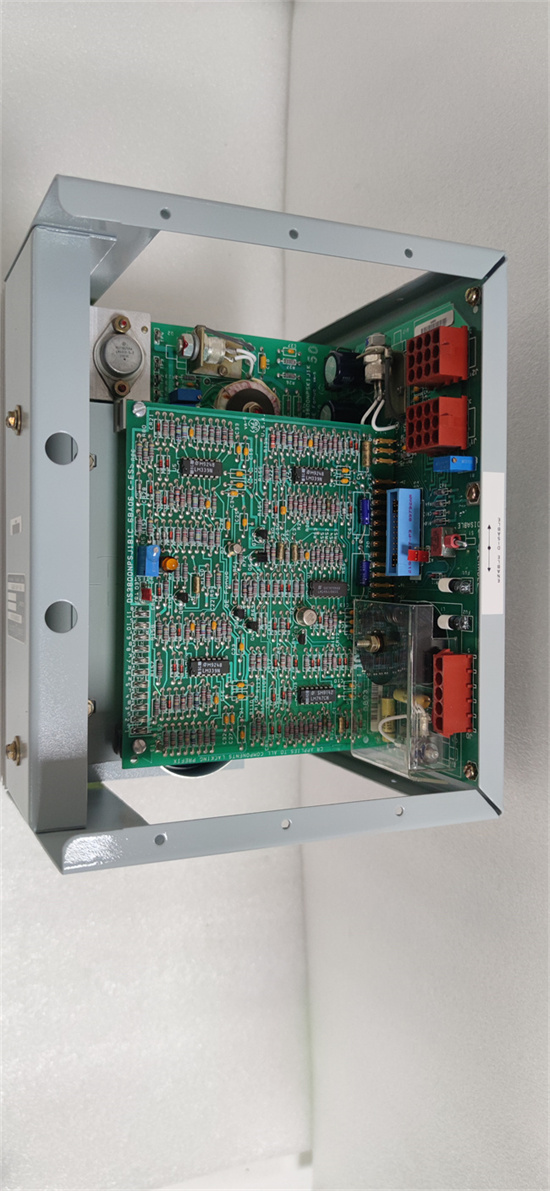

The GE DS3820DMVB is a Discrete Input Module for the GE Speedtronic Mark IV turbine control system. It’s an I/O (Input/Output) module that handles digital signals such as on/off status from switches, pushbuttons, and protective devices. The “125VDC” designation specifies that it is designed to accept signals with a voltage of 125 volts direct current.
Function and Purpose ⚙️
The main role of the DS3820DMVB is to act as a crucial interface between the turbine’s physical field devices and the electronic control system. It receives signals from devices that provide a simple on/off, open/closed, or present/not-present status. The module then translates these high-voltage DC signals (125 VDC) into a low-voltage format that the system’s main processor can understand and process.
This is a critical function for monitoring various states of the turbine, such as:
- Valve status: Open or closed.
- Switch position: Start/stop switches or limit switches on mechanical components.
- Protective relay status: Alarms or trip signals from protective devices.
Related Components
The DS3820DMVB works in conjunction with other components of the Mark IV system:
- Processor Cards: The main CPU, such as the DS3800HCDA, receives the digital data from the DS3820DMVB to make control decisions.
- Backplane: The module plugs into the system’s backplane (e.g., the DS3800XCIB), which provides it with power and the data bus to communicate with other modules.
- Terminal Boards: The DS3820DMVB is likely a part of a larger board or enclosure that includes the physical screw terminals for connecting the field wiring.
