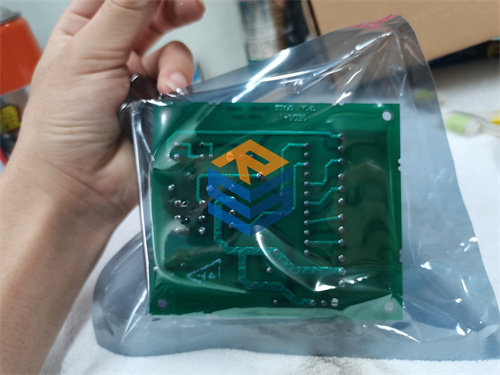

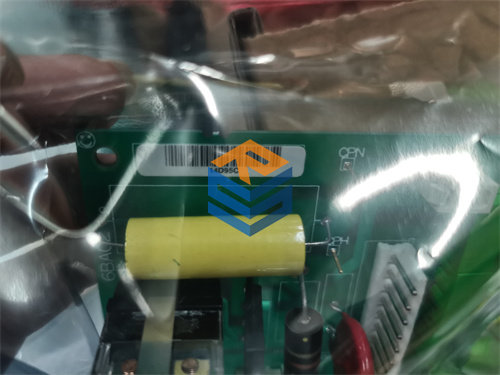

GE DS3820DMVC MKIV, 24/28VDC Discrete Input Module

الوصف

The GE DS3820DMVC is a 24/28VDC Discrete Input Module for the Mark IV Speedtronic turbine control system. Its primary purpose is to provide an interface for processing on/off signals from various field devices that operate at the common industrial voltage of 24/28 VDC.

Technical Breakdown 🧠

This module is a crucial component for gathering information about the on/off state of critical equipment and for monitoring safety conditions.

• Dedicated Low-Voltage Inputs: The DS3820DMVC is specifically designed to handle 24/28 VDC discrete input signals. This voltage level is the most widely used standard in modern industrial control for sensors, pushbuttons, limit switches, and other binary devices.
• Signal Conditioning & Protection: The module is equipped with robust circuitry to condition the signals from the field. This is vital for filtering out electrical noise and providing electrical isolation to protect the sensitive internal electronics of the control system from voltage spikes and interference. It correctly converts the incoming 24/28 VDC signal into a clean, low-voltage signal that the main processor can safely read.
• System Integration: As a core I/O component of the Mark IV system, this module connects to the main control processor via a backplane. It acts as the bridge that allows the digital logic of the controller to “see” the physical state of the field devices and respond accordingly.

Applications 🏭

The DS3820DMVC is used in Mark IV turbine control systems to:

• Monitor Low-Voltage Equipment: Tracks the on/off state of control relays, sensors, and other auxiliary equipment that operate at 24/28 VDC.
• Process Safety Inputs: Reads signals from safety switches, such as emergency stops and pressure switches.
• Read Operator Inputs: Processes signals from operator pushbuttons and selector switches on the control panel.
• Provide Fault Monitoring: Senses contact closures that indicate fault or alarm conditions
