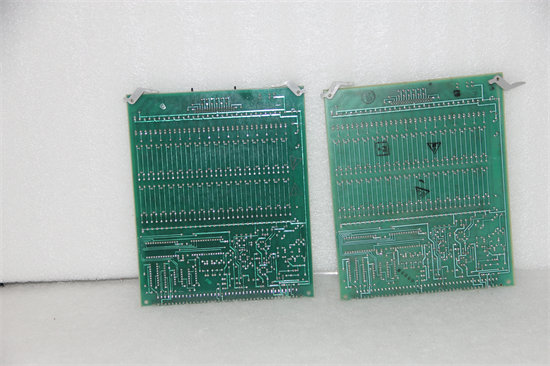

GE DS3820DPAD Controller Module

الوصف

The GE DS3820DPAD is a Controller Module for the Mark IV Speedtronic turbine control system. It functions as the central processing unit (CPU) and the “brain” of the Mark IV control panel, responsible for executing all control logic, processing I/O signals, and managing communications for a gas, steam, or hydro turbine.

Technical Breakdown 🧠

This module is the core of the Mark IV system, where all critical decisions are made and executed.

• Central Processing Unit: The DS3820DPAD board contains the main microprocessor, memory (including EPROMs for firmware and application code), and the core circuitry required for all control functions. It reads data from various input modules (analog, discrete, etc.), processes it according to the turbine’s control program, and sends commands back to output modules to control devices like valves and relays.
• System Integration: Unlike the Triple Modular Redundancy (TMR) architecture of the later Mark V, the Mark IV system typically relies on a single processor module, making its reliability and performance paramount. The DPAD module connects to all other I/O boards via a backplane or ribbon cable, acting as the central hub for all data flow within the control cabinet.
• On-Board Diagnostics: The module is equipped with various status indicators and diagnostic capabilities to assist in troubleshooting. On-board LEDs provide a quick visual check of the module’s operational status, allowing maintenance personnel to diagnose faults and ensure the system is running correctly.

Applications 🏭

The DS3820DPAD is a foundational component in Mark IV turbine control systems, where it provides:

• Turbine Speed and Load Control: Manages the core governor functions to maintain desired speed and load output.
• Sequencing and Protection: Executes the complex startup and shutdown sequences and implements protective logic in response to alarms or trip conditions.
• Centralized I/O Management: Processes and coordinates all incoming and outgoing signals from the various I/O modules, ensuring the precise and synchronized operation of the turbine.
•
