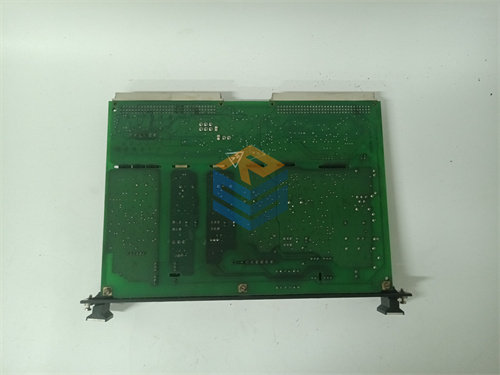

GE DS3820SVMA Self Verification Module

The GE DS3820SVMA is a Self Verification Module for the Mark IV Speedtronic turbine control system. Its primary purpose is to perform continuous, in-depth diagnostic checks on the control system’s internal hardware to ensure its integrity and reliability.

Technical Breakdown 🧠

This module is a critical component for system health monitoring and fault tolerance.

• Continuous Diagnostics: The DS3820SVMA is designed to run continuous self-checks and diagnostic routines. It verifies the functionality of internal circuits, memory, and communication pathways. This process ensures that the control system itself is operating correctly and is free from internal component failures that could lead to an unsafe or unreliable state.
• Fault Detection: This module’s core function is the proactive detection of internal faults within the control system hardware. Unlike a standard I/O board that monitors external field devices, the SVMA is dedicated to the health of the control system itself. If a fault is detected, it reports this status to the main processor, allowing for prompt action.
• Enhancing Fault Tolerance: In a triple-redundant or TMR (Triple Modular Redundancy) system, which is a hallmark of GE Speedtronic controls, self-verification is crucial. The DS3820SVMA contributes to the system’s overall fault-tolerant architecture by identifying a failed or failing component, allowing the system to logically vote out the bad actor and continue operation without a shutdown. This prevents failures from cascading and causing a complete system trip.

Applications 🏭

The DS3820SVMA is a vital safety and reliability component in Mark IV control panels to:

• Improve System Reliability: By continuously monitoring hardware, it helps prevent unexpected failures.
• Support Redundancy: It provides the diagnostic feedback needed for redundant systems to seamlessly operate.
• Reduce Downtime: Early fault detection allows for planned maintenance rather than emergency repairs.
