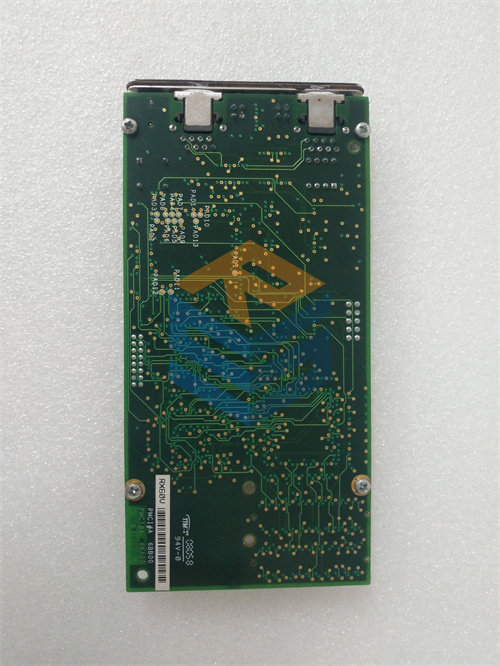

The GE DS3860HIOD is a Digital I/O Card for the Mark IV Speedtronic turbine control system. This module is the primary interface for handling discrete, on/off signals from and to field devices. The C-Coat designation signifies it has a Conformal Coating for enhanced durability in harsh industrial environments.
Technical Breakdown 🧠
This module is a core I/O component, essential for the logic-based control of a turbine.
- Digital I/O Function: The card manages binary, or discrete, signals. It reads the state of devices like limit switches, pressure switches, and pushbuttons, and it sends commands to actuate devices like solenoid valves, motor starters, and relays.
- Signal Conversion: The module performs two-way signal conversion. For digital inputs, it converts a physical state (e.g., a closed switch) into a digital signal (1) for the processor. For digital outputs, it converts a digital command from the processor (e.g., a 1) into a physical signal to energize a field device.
- Electrical Isolation: The card provides crucial electrical isolation between the control system’s sensitive internal electronics and the field wiring. This protects the system from electrical noise, voltage spikes, and ground loops that can originate in the industrial environment.
- Conformal Coating (C-Coat): A key feature is the conformal coating, a thin polymeric film applied to the circuit board. This layer acts as a barrier against moisture, dust, chemical contaminants, and corrosive gases, which are common in power plants. The coating significantly extends the card’s operational life and reliability in these demanding environments.
Applications 🏭
The DS3860HIOD is a fundamental component in Mark IV control panels for:
- Sequence of Events: Monitoring the on/off states of devices to control the startup and shutdown sequence of a turbine.
- Motor Control: Starting and stopping motors for pumps, fans, and other auxiliary equipment.
- Safety Interlocks: Reading the state of safety devices to ensure all conditions are met before a command is executed.
