GE HYDRAN M2

الوصف

SEO Optimized Headings:

• GE HYDRAN M2: Advanced Online DGA Monitor for Power Transformers.
• GE HYDRAN M2 Monitor: Real-time Dissolved Gas and Moisture Analysis.
• GE HYDRAN M2: Predictive Maintenance for Transformer Health.
• Online DGA System GE HYDRAN M2: Early Fault Detection in Transformers.
• GE HYDRAN M2: Maximizing Transformer Reliability and Lifespan.
• Transformer Monitoring with GE HYDRAN M2: Continuous Protection Against Failures.
• GE HYDRAN M2: Smart Solution for Grid Reliability.
• GE HYDRAN M2: Hydrogen and Moisture Monitoring for Transformers.
• GE HYDRAN M2: Proactive Transformer Management with DGA.
• GE HYDRAN M2: Essential Tool for Asset Performance Management.

Product Summary (Product Detail Card & Search Page Description):

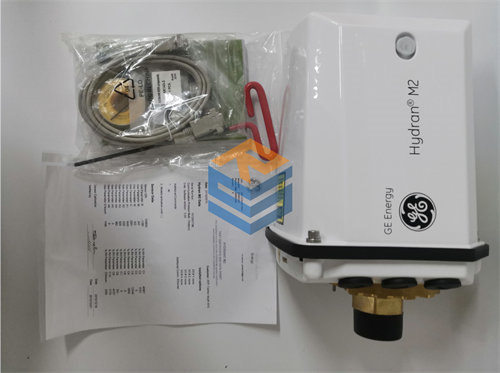

The GE HYDRAN M2 is an online, continuous dissolved gas analysis (DGA) and moisture-in-oil monitor for power transformers. It provides real-time detection of key fault gases, primarily hydrogen (H₂) and moisture in oil, enabling early detection of developing faults like overheating, partial discharge, and arcing. This unit helps power utilities and industrial clients optimize transformer maintenance, prevent unplanned outages, and extend asset life.

Product Type: Online Dissolved Gas Analysis (DGA) Monitor Key Measured Gases: Hydrogen (H₂), Moisture in Oil (H₂O) Application: Power Transformers, On-Load Tap Changers (OLTCs), Bushings Key Features: Continuous monitoring, early fault detection, alarm capabilities, communication options.

Detailed Product Description

Imagine a colossal power transformer, the backbone of our electrical grid, humming quietly, yet potentially harboring unseen threats within its insulating oil. These transformers are incredibly expensive, and their failure can lead to massive power outages and financial losses. This is where the GE HYDRAN M2 steps in. Frankly, it’s not just a monitoring device; it’s an early warning system, a vigilant guardian designed to listen to the silent whispers of a transformer in distress.

As an electrical engineer, I know that at the heart of transformer health monitoring is Dissolved Gas Analysis (DGA). When a transformer experiences issues like overheating, electrical arcing, or partial discharges, the insulating oil and paper decompose, releasing specific “fault gases” such as hydrogen, methane, ethylene, acetylene, and carbon monoxide. Analyzing these gases provides invaluable insights into the type and severity of an incipient fault. The GE HYDRAN M2, in particular, focuses on hydrogen (H₂), which is typically the first gas to appear for most electrical or thermal fault conditions, along with moisture in oil. While laboratory DGA provides a comprehensive multi-gas analysis, the HYDRAN M2’s strength lies in its continuous, real-time monitoring of these critical indicators. It’s like having a doctor permanently attached to your transformer, taking its pulse and blood pressure every second.

From the perspective of a utility asset manager or a maintenance supervisor, the value of the GE HYDRAN M2 is immense. Unplanned transformer outages are nightmares – they disrupt power, cost millions in repairs, and damage reputations. By continuously monitoring hydrogen and moisture levels, the HYDRAN M2 can detect abnormal gassing trends before they escalate into a catastrophic failure. It provides configurable alarms, allowing your team to respond proactively, schedule planned maintenance, or even take the transformer offline before a major incident occurs. This isn’t just about preventing failures; it’s about optimizing your maintenance strategy, extending the lifespan of your transformers by catching issues early, and ultimately, ensuring grid reliability. It’s an investment that pays for itself many times over by avoiding a single major outage.

Key Features and Core Benefits:

Continuous Online Monitoring of Hydrogen (H₂) and Moisture in Oil (H₂O): The GE HYDRAN M2 provides constant, real-time measurements of hydrogen, a universal fault gas indicating various transformer stresses, and moisture, which significantly degrades insulation paper. This continuous insight allows for immediate detection of changes in transformer condition, offering a crucial advantage over periodic manual oil sampling.

Early Fault Detection and Trending: By tracking the concentration and, more importantly, the rate of change (trending) of hydrogen and moisture, the HYDRAN M2 can alert personnel to developing faults such as overheating, partial discharges, and arcing, even before they become severe. This proactive warning capability helps prevent catastrophic failures and allows for timely intervention.

Integrated Moisture Sensor: The built-in moisture sensor provides valuable data on water content in the oil. High moisture levels can lead to insulation degradation and reduced dielectric strength, so continuous monitoring helps identify potential issues like seal leaks or insulation paper deterioration.

Intuitive Onboard Display and Interface: The unit features a backlit LCD display and a keypad for easy local operation, data viewing, and alarm acknowledgment. This user-friendly interface simplifies setup and basic troubleshooting directly at the transformer.

Flexible Communication Options: The HYDRAN M2 comes standard with RS-232 and RS-485 ports, supporting Modbus and DNP3.0 protocols. Optional Ethernet or fiber optic (TCP/IP) with IEC 61850 protocol support is also available. This extensive range of communication capabilities ensures seamless integration with SCADA systems, DCS, or remote monitoring platforms, allowing for centralized data analysis and control.

Configurable Alarms and Relay Outputs: The device offers multiple alarm settings for gas and moisture levels (Hi, HiHi), as well as system alarms. These alarms can be configured based on absolute gas levels or the rate of gas change. Five dry contact relays provide flexible alarm outputs for integration with external warning systems or trip circuits.

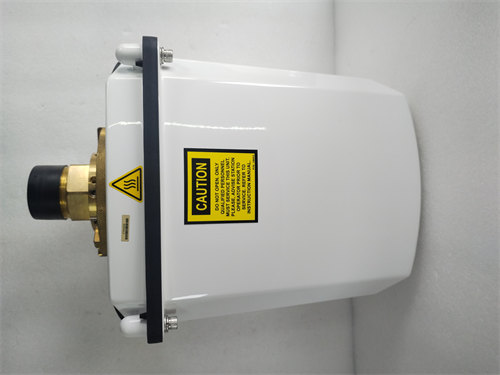

Robust and Field-Proven Design: With over 50,000 units installed globally, the HYDRAN series is known for its durability and reliability in harsh outdoor environments. It’s typically designed with a NEMA Type 4X / IP56 rating, ensuring protection against dust, water, and corrosion.

Technical Specifications:

Applications:

The GE HYDRAN M2 is indispensable in any sector that relies on the stable and continuous operation of large oil-filled power transformers. It’s the frontline defense against silent, internal threats that can lead to catastrophic failures. Imagine a large industrial plant where a single transformer outage can halt production for days; the HYDRAN M2 mitigates this risk by providing real-time insights, allowing for planned, rather than emergency, maintenance.

This unit is primarily used in:

• Electric Utilities & Grid Operators: For continuous monitoring of critical power transformers at substations, ensuring grid stability and preventing widespread outages.
• Power Plants (Generation): Monitoring generator step-up (GSU) transformers, auxiliary transformers, and other critical transformers to ensure reliable power generation.
• Large Industrial Facilities: Such as steel mills, chemical plants, mining operations, and pulp & paper mills, where large transformers are crucial for continuous production and operational safety.
• Renewable Energy Plants: Including large-scale wind farms and solar farms, to monitor the health of transformers connecting renewable energy sources to the grid.
• Oil & Gas Industry: For transformers powering pumps, compressors, and processing units in refineries, pipelines, and offshore platforms.
• Railway & Transportation Systems: Monitoring transformers in traction substations that supply power to electric trains.

Related Products You Might Be Interested In:

To build a comprehensive transformer monitoring and diagnostic system around the GE HYDRAN M2, you’d typically integrate it with other components or consider alternative DGA solutions. Here are some related products and solutions from GE Vernova (formerly part of GE Grid Solutions) and other leading manufacturers:

• GE HYDRAN M2-X / M2X-DP / M2-GP: These are newer, more advanced versions of the HYDRAN M2, offering additional gas measurements (e.g., CO, C₂H₂, C₂H₄) or enhanced features like full DGA (7-gas or 9-gas) capabilities. The M2-X is a direct successor, offering improved sensor life and often a broader range of measured gases.
• GE Kelman DGA 900 / DGA 900 Plus / Optimus DGA Monitor: For more comprehensive online multi-gas DGA, these advanced monitors from GE Vernova measure all nine fault gases (Hydrogen, Methane, Ethane, Ethylene, Acetylene, Carbon Monoxide, Carbon Dioxide, Oxygen, Nitrogen), providing a complete picture of transformer health.
• GE Perception Software: A powerful software suite for downloading, viewing, trending, and analyzing data from GE DGA monitors, enabling deeper insights into transformer health.
• GE MS3000 Moisture in Oil Sensor: A dedicated online moisture sensor for transformers, complementing the DGA units.
• Transformer Bushing Monitors: Devices like GE’s PMB (Partial Discharge Monitoring for Bushings) or other bushing health monitors (e.g., from Doble, Megger) to detect insulation degradation in transformer bushings.
• On-Load Tap Changer (OLTC) Monitors: Dedicated monitors for the OLTC, which is a common source of transformer faults.
• SCADA/DCS Systems: To integrate the data from the HYDRAN M2 into a centralized control and monitoring system (e.g., GE Grid Solutions’ DS Agile, Siemens Spectrum Power, ABB Ability™ System 800xA).
• Laboratory DGA Services & Kits: While online monitors provide real-time data, periodic laboratory DGA (using oil sample kits from companies like SDMyers or Doble) remains crucial for comprehensive analysis and validation.
• Transformer Cooling System Monitors: Monitoring devices for transformer cooling pumps, fans, and oil temperatures to ensure efficient heat dissipation.
