GE IC695CPU315-BB

الوصف

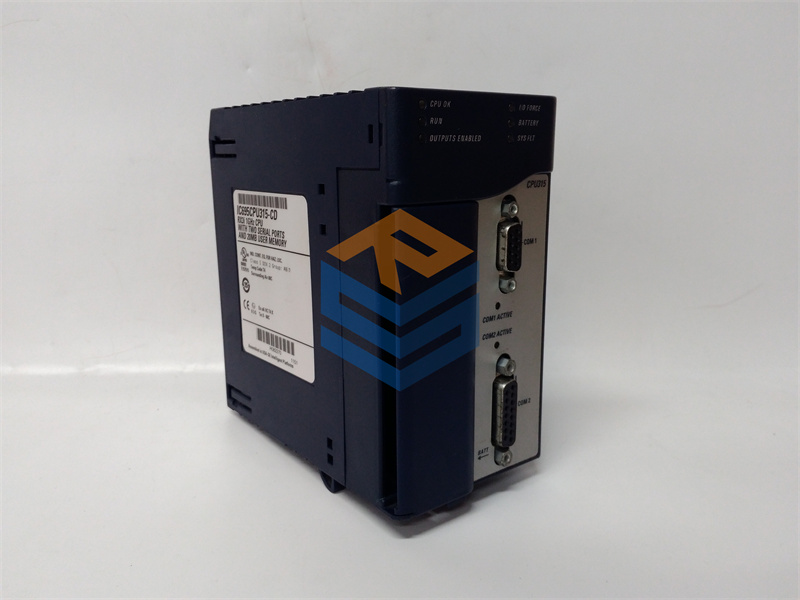

GE+IC695CPU315-BB PLC Module

Product Name:

• GE IC695CPU315-BB (also known as GE Fanuc RX3i CPU Module)

Product Description:

The GE IC695CPU315-BB is a programmable logic controller (PLC) central processing unit (CPU) module from General Electric’s RX3i series. Designed for high-performance control applications, this module provides advanced processing capabilities and is typically used in industrial automation systems for sequential control, data acquisition, and machine control.

The IC695CPU315-BB integrates seamlessly into the GE RX3i platform, offering a scalable, reliable, and flexible control solution for a wide range of industries, including manufacturing, automotive, water treatment, and chemical processing. It is equipped with extensive communication and I/O capabilities to support complex control systems while delivering high-speed performance and comprehensive diagnostics.

Product Parameters & Specifications:

General Information:

• Model: IC695CPU315-BB
• Category: Programmable Logic Controller (PLC) CPU Module
• Brand: General Electric (GE)
• Platform: GE RX3i PLC System
• CPU Type: High-performance controller
• Application: Machine control, process automation, data acquisition, industrial control

Key Features:

• High-Speed Performance: Equipped with a 32-bit processor for fast data processing and real-time control.
• Integrated Communication Ports: Features both Ethernet and serial communication ports for flexibility in network and device connectivity.
• Modular Design: Fully compatible with other RX3i modules, including I/O modules, communication modules, and other CPU types.
• Memory Capacity: Large memory capacity to store both programming and data for complex control tasks.
• Advanced Diagnostics: Provides extensive diagnostic tools to troubleshoot issues with the system and identify potential faults in real-time.
• Expandable: Supports easy expansion through rack-based I/O or other communication networks.

Product Specifications:

Processor & Memory:

• Processor Type: 32-bit RISC processor.
• Processor Speed: 300 MHz or higher (dependent on version).
• RAM:
  • 256 MB of RAM for executing program logic and storing runtime data.
  • Flash memory for storing program files and configuration.
• Program Capacity:
  • 2 MB of program memory, allowing for complex logic and routines.
  • Expandable memory through the use of external storage options.

I/O and Expansion:

• Built-in I/O Support: Supports both digital and analog I/O modules when connected to the RX3i backplane.
• I/O Configuration: The system allows for a wide range of input/output modules, including discrete I/O, analog I/O, and specialty I/O (e.g., high-speed counters, thermocouple inputs).
• Expandable I/O: Can support up to 384 I/O points on the system, depending on configuration and module choices.
• Expansion Slots: Features multiple expansion slots for additional I/O or communication modules.

Communications:

• Ethernet Communication:
  • Supports Ethernet/IP for network communication, allowing integration with industrial Ethernet networks.
  • TCP/IP protocol for seamless communication with other systems and remote monitoring.
• Serial Communication:
  • Two serial communication ports (RS-232 and RS-485) for connecting to legacy devices and serial-based networks.
• Profinet and Modbus TCP: Can be configured with Modbus TCP and Profinet communication modules for communication with third-party devices.
• GE Fanuc Protocols: Supports GE Fanuc’s proprietary communication protocols for integrating with legacy GE PLC systems.

Performance:

• Scan Time: Approximately 1-3 milliseconds for small to medium-sized programs. This time will vary depending on the program complexity and number of I/O devices.
• Input/Output Processing: High-speed processing of discrete and analog I/O signals, with real-time control.
• Real-Time Processing: Handles fast cycles with precise time-based control (e.g., motion control, real-time data logging).

Redundancy and Fault Tolerance:

• Hot Standby Configuration: Supports redundant systems in a hot standby configuration to provide continuous control and fault tolerance in mission-critical applications.
• Watchdog Timer: Ensures that the system remains in a safe operational state, even if a failure occurs.

Diagnostics & Monitoring:

• System Diagnostics: Built-in diagnostics help detect and resolve issues such as hardware failures, software errors, and communication faults.
• Real-time Status Monitoring: The CPU has real-time status indicators (LEDs) to provide visual feedback about the system’s health and operational status.
• Event Logging: The system supports logging of events and errors, which can be used for troubleshooting and maintenance purposes.

Environmental Specifications:

• Operating Temperature Range: Typically, 0°C to 60°C (32°F to 140°F), but can vary depending on the specific system and configuration.
• Storage Temperature: -20°C to 85°C (-4°F to 185°F).
• Humidity: 5% to 95% relative humidity, non-condensing.
• Vibration Resistance: Compliant with IEC 61131 standards for vibration and shock resistance in industrial environments.
• Shock Resistance: Designed to withstand typical shock and vibration found in industrial environments.

Physical Dimensions:

• Height: Approx. 5.4 inches (137 mm).
• Width: Approx. 7.2 inches (183 mm).
• Depth: Approx. 3.0 inches (76 mm).
• Weight: Approx. 1.2 kg (2.65 lbs), depending on configuration.

Power Requirements:

• Power Supply: The module operates typically on 24 VDC.
• Power Consumption: Power consumption is around 10-15W, but this can vary based on the specific configuration of connected modules and I/O devices.

Applications:

• Manufacturing & Process Control: Ideal for controlling manufacturing processes, assembly lines, and automation systems.
• Oil & Gas: Used in applications requiring reliable control of remote monitoring, pipeline systems, and emergency shutdown systems.
• Water Treatment: Controls pumps, valves, and filtration systems in water treatment facilities.
• Automotive Industry: Integrates into automated car manufacturing systems, assembly lines, and robotic arms.
• Chemical Processing: Provides precise control of chemical reactors, mixers, and automated filling processes.
• Building Automation: Used in HVAC control, lighting control, and environmental systems for commercial buildings.

Conclusion:

The GE IC695CPU315-BB is a powerful and versatile PLC CPU module that offers high performance, expandable I/O, and advanced diagnostics for a wide range of industrial control applications. Designed for use in the GE RX3i platform, it is ideal for complex automation systems that require fast processing, flexible communication options, and real-time monitoring. Whether for simple discrete control or complex process automation, this module offers the reliability and performance needed to meet the demanding requirements of industrial environments.
