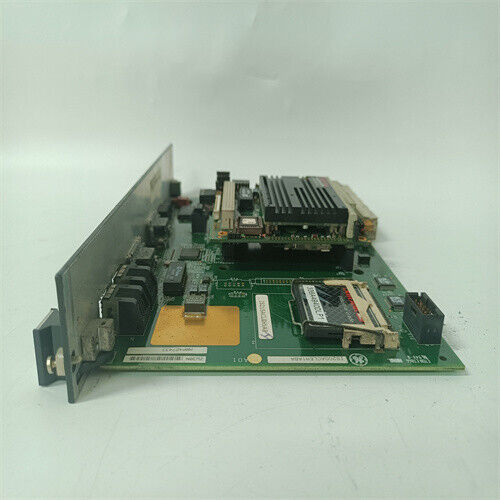

The GE IC698ETM001 is a standalone Ethernet Module for the PACSystems RX7i series of Programmable Logic Controllers (PLCs). Its primary function is to provide high-performance Ethernet communications for the RX7i control system.
Key Features and Specifications
- High-Performance Ethernet: The module has a 200 MHz Ethernet processor speed and supports 10/100 Mbps communication. This allows for fast and efficient data exchange with other devices on the network.
- Dual Ethernet Ports: The module features two full-duplex RJ-45 Ethernet ports. These ports have an internal network switch, which allows for daisy-chaining of Ethernet nodes without the need for an external switch. This simplifies network topology and reduces hardware costs.
- Protocol Support: The IC698ETM001 supports a variety of industrial communication protocols, including:
- TCP/IP Communication Services: For standard networking.
- SRTP (Service Request Transport Protocol): A GE-specific protocol for communication with other GE controllers and software.
- Ethernet Global Data (EGD): A protocol for high-speed, peer-to-peer data exchange between multiple GE PLCs.
- Modbus TCP/IP: For communication with a wide range of third-party devices.
- Redundant IP Addressing: The module can be configured to support redundant IP addressing, which is crucial for hot standby CPU redundancy systems.
- Diagnostics and Management: It includes comprehensive station management and diagnostic tools, as well as multiple LED indicators to help with troubleshooting and monitoring the module’s status.
- Configuration: The module is configured using GE’s Proficy Machine Edition programming software. Its firmware is stored in flash memory and can be upgraded via the CPU serial port.
- Hot Swap Capability: The module is designed to be hot-swappable, which means it can be replaced while the system is powered on, minimizing downtime during maintenance.
