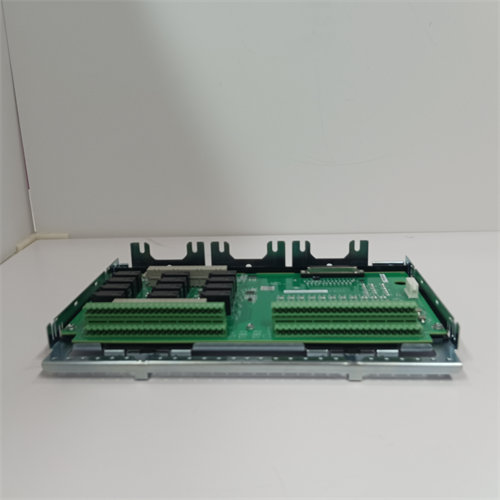

GE IS200ICBDH1ABA Control Card

الوصف

The GE IS200ICBDH1ABA is an Innovation Control Base Board (ICBD), a critical printed circuit board (PCB) assembly used in General Electric’s high-reliability industrial control systems, such as the Speedtronic Mark VI series for turbine control and the EX2100 Excitation Control System.

It functions as a primary interface and control hub for the main system controller.

⚙️ Key Functions and Features

The IS200ICBDH1ABA integrates control, protection, and communication features onto a single, robust board:

• Control and Logic Base: In the EX2100e Excitation System, it serves as the Control Base Card, housing essential logic (implemented in a high-capacity FPGA) for managing and regulating generator excitation processes.

• System Protection: It contains hardwired logic for critical protective functions, including:

  • Implementing hardware for bridge shutdown on a fault.

  • Controlling the pilot relays for main power contactors (MA and MB).

  • Monitoring two fault string inputs (dedicated to panel and system interlock contacts) to enable a controlled shutdown if an interlock is broken.

• Communication Ports: It provides multiple interfaces for system networking and diagnostics:

  • Four Ethernet Jacks (e.g., J11A, J11B) for high-speed network communication.

  • An RS-232 female 9-pin port for local diagnostics and configuration.

• Sensor and Analog Inputs: The board is equipped for monitoring system health and conditions, including:

  • RTD Temperature Inputs for ambient or bridge temperature monitoring.

  • Analog Current/Voltage Inputs (e.g., 0-20 mA or 4-20 mA) for monitoring external quantities like vibration, pressure, or field current.

• Durability: The “H1” in the part number suggests the board includes a conformal coating for enhanced protection against moisture and contaminants in harsh industrial environments.

The “ABA” suffix denotes the specific revision level of this board assembly.
