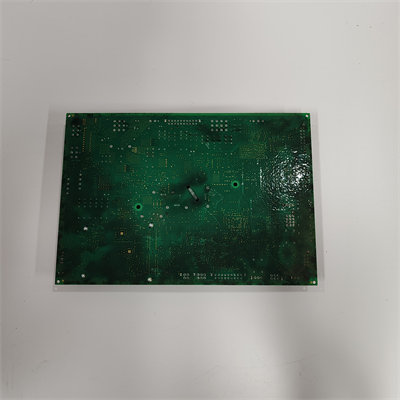

GE IS200IGDMH1AAA IGBT Gate Driver Board

الوصف

The GE IS200IGDMH1AAA is an IGBT Gate Driver Board (IGDM) manufactured by General Electric, primarily used within the Mark VI Speedtronic Turbine Control System and the EX2100 Excitation System.

Its core function is to provide the necessary control and protection signals to operate Insulated Gate Bipolar Transistors (IGBTs) in high-power conversion systems, such as large industrial drives or generator exciters.

⚙️ Function and Application

The board’s role is critical in the power electronics section of an industrial drive or exciter:

• IGBT Control: IGBTs are key power semiconductor devices that act as high-speed switches. The IGDM board takes low-power control signals from the main control processor and converts them into the high-current, high-voltage gate drive signals required to rapidly switch the IGBTs on and off.

• Power Conversion: By precisely controlling the IGBT switching, the drive or exciter can manage the large amounts of power delivered to a motor or a generator’s field winding, controlling parameters like speed, torque, voltage, and frequency.

• System Integration: It is part of the Innovation Series (IS200) modules, which are often installed adjacent to the power stack or bridge assembly to minimize signal path length and noise.

🔎 Key Features and Components

The IS200IGDMH1AAA board is a compact, robust Printed Circuit Board (PCB) with several specialized features:

• Isolation: The board incorporates transformers to provide galvanic isolation between the low-voltage control circuitry and the high-voltage power switching circuitry, which is vital for safety and noise immunity.

• Protection: It includes circuits for monitoring and protection, such as:

  • Desaturation Fault Detection: Protecting the IGBT from failure due to short circuits or high currents.

  • Overcurrent/Overvoltage Protection: Essential for the longevity and reliable operation of the power devices.

• Components: The board is populated with integrated circuits (ICs), resistors, capacitors, and multiple connectors (e.g., J1, J2, J3) for power and signal input/output.

• Auxiliary Board: Many versions of this board feature a small auxiliary board soldered onto the main PCB, which carries additional components (like capacitors) to enhance functionality and performance, particularly concerning heat dissipation.

The specific suffix H1AAA indicates the hardware group (H1) and a specific revision level (AAA) of the base IGDM design.
