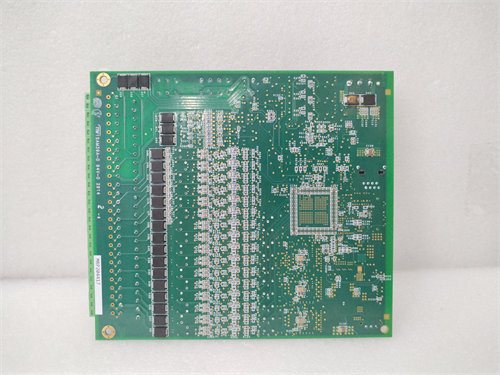

The GE IS200SCSAS1A is a Safety Control System Assembly (SCSA) board, designed for the GE Mark VIe (MKVIe) turbine control system. Its primary function is to provide a dedicated, high-integrity platform for executing safety-critical logic in a Safety Integrity Level (SIL) environment.
Function and Purpose ⚙️
The IS200SCSAS1A is a core component of GE’s safety-rated control solutions. Unlike standard control modules that manage normal turbine operations, this board is specifically engineered to handle functions that, if they were to fail, could lead to a catastrophic event. It is designed to meet stringent SIL standards, which define the level of risk reduction a safety function must achieve. The board’s key functions include:
- Executing Safety Logic: It runs programmed logic to monitor critical parameters (e.g., turbine overspeed, high vibration, flame-out) and initiate a safe shutdown or trip when a dangerous condition is detected.
- Redundancy and Diagnostics: To meet high SIL ratings, the board incorporates advanced diagnostics and is often used in a redundant architecture (such as TMR, or Triple Modular Redundancy), where three boards “vote” on the correct action, ensuring a failure of one component doesn’t compromise safety.
- Isolation: It provides electrical isolation from the main control system to prevent interference from non-safety-related components, ensuring the safety functions operate independently and reliably.
Related Components
The IS200SCSAS1A works in conjunction with other components of the Mark VIe system, including:
- SCAI I/O Packs: These are the electronic modules that mount on the SCSA board and provide the interface for safety-rated sensors and actuators.
- Processor Cards: While the SCSA operates independently for safety functions, it communicates with the main processor to provide status updates and allow for non-critical monitoring.
- Safety Field Devices: The board connects to various field devices such as vibration sensors, flame detectors, and emergency stop buttons, which provide the critical data for the safety logic.
