GE IS220PPDAH1B

الوصف

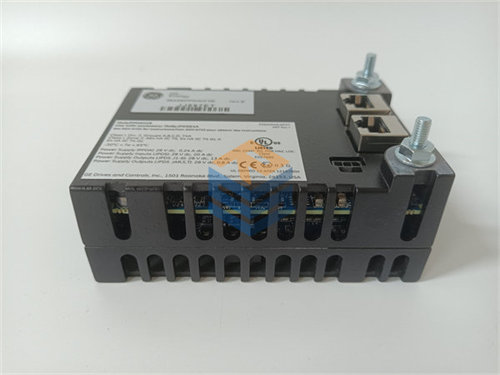

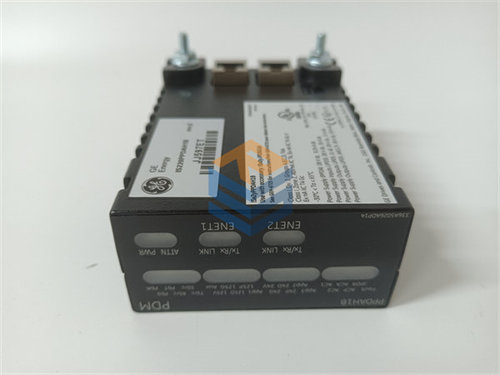

The GE IS220PDOAH1B is a Discrete Output I/O Pack used in the GE Mark VIe control system. This module is essential for controlling on/off devices in the field by connecting the controller’s Ethernet network to a discrete output terminal board.

Functionality and Applications

The IS220PDOAH1B is a critical link in the control system, managing discrete (on/off) output signals to operate various industrial equipment. It works by sending commands from the Mark VIe controller to energize or de-energize relays, which in turn control a wide range of external equipment.

• Output Control: The module is designed to control up to 12 relays, providing versatile output options for various devices and actuators. It’s compatible with both electromagnetic and solid-state relays depending on the terminal board used.
• System Connectivity: The I/O pack connects to the system’s I/O network via dual RJ-45 Ethernet ports, which allows for robust and redundant data exchange. It also connects to the discrete output terminal board using a DC-37 pin connector.
• Diagnostics and Reliability: The module features LED indicators for each output, which provide visual diagnostics for quick status checks and troubleshooting. It also supports feedback signals from the terminal board to ensure that the system can be accurately monitored.
• Applications: This module is widely used in turbine control systems, industrial automation, and other applications where on/off control of devices like solenoid valves, motor starters, and alarms is necessary.

Key Specifications
