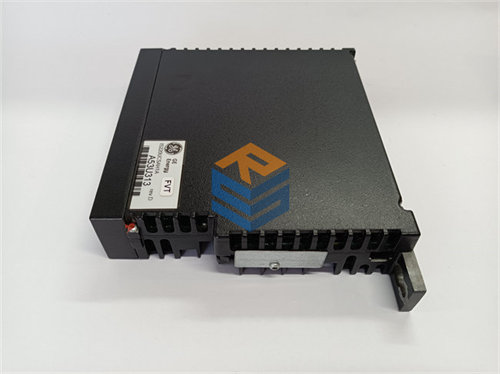

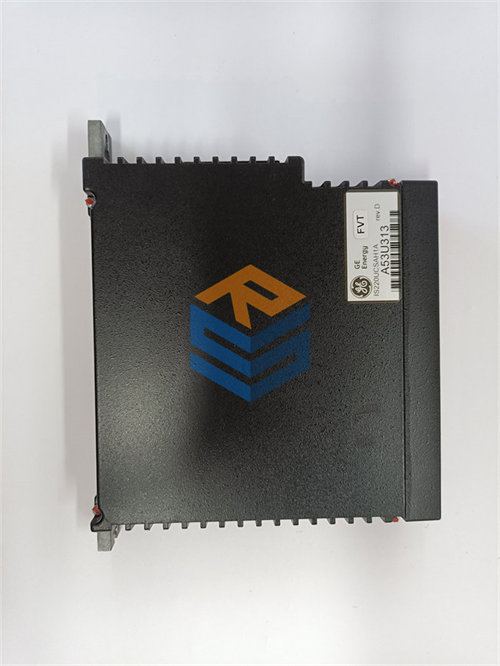

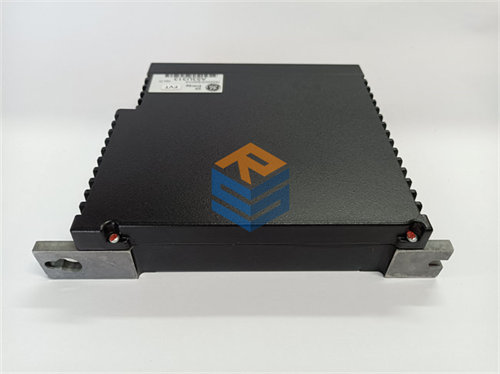

GE IS220UCSAH1A

الوصف

Can you tell me what are the specific features and applications of the GE IS220UCSAH1A module? What is the role of the GE IS220UCSAH1A in a Mark VIe/VIeS Turbine Control System? What are the technical specifications of the GE IS220UCSAH1A? GE IS220UCSAH1A datasheet GE IS220UCSAH1A manual GE IS220UCSAH1A specifications As a seasoned expert in industrial automation, I can tell you that the GE IS220UCSAH1A is a very important component within GE’s advanced turbine control platforms, specifically the Mark VIe and Mark VIeS Speedtronic Control Systems. Unlike the relay board we discussed earlier (DS200RTBAG3AHC), the IS220UCSAH1A is a Universal Controller Module, essentially a processor or CPU board. It’s the “brain” that executes the control logic for sophisticated turbine operations.

Let’s dive into the details of this crucial module.

SEO-Optimized Top 10 Titles:

1. GE IS220UCSAH1A: Universal Controller Module for Mark VIe/VIeS Systems.
2. The Core Processor: GE IS220UCSAH1A for Turbine Control.
3. IS220UCSAH1A: High-Performance CPU for GE Speedtronic Platforms.
4. Advanced Turbine Control: GE IS220UCSAH1A for Gas, Steam, and Wind.
5. Why Choose IS220UCSAH1A: QNX OS, Freescale Processor, Robust Design.
6. GE IS220UCSAH1A: Essential for Critical Control and Monitoring Applications.
7. Multiple Ethernet Ports, USB, Conformal Coating: Key Features of IS220UCSAH1A.
8. IS220UCSAH1A: Enabling Distributed Control and Plant Integration.
9. Legacy Support and Modernization: The Role of GE IS220UCSAH1A.
10. IS220UCSAH1A: Powering Automation in Power Generation and Industrial Drives.

Brief Product Description:

The GE IS220UCSAH1A is a Universal Controller Module (UCSA) or Processor Board for the GE Mark VIe and Mark VIeS Speedtronic Turbine Control Systems. It serves as the primary processing unit, executing control applications for gas, steam, and wind turbines, as well as balance-of-plant (BOP) control. Featuring a Freescale Power PC processor (typically 667 MHz), a real-time QNX Neutrino operating system, and multiple Ethernet ports for I/O and network communication, the IS220UCSAH1A provides robust, high-speed, and deterministic control. It is designed for base-mounting within a cabinet, often with conformal coating for environmental protection, and supports various control architectures, including redundant configurations.

• Product Type: Universal Controller Module / Processor Board (UCSA)
• Manufacturer: General Electric (GE)
• Series: Mark VIe, Mark VIeS Speedtronic Control Systems
• Function: Executes control logic, manages I/O communication, and provides system intelligence.
• Key Features: Freescale Power PC CPU, QNX OS, multiple Ethernet ports, USB, LED indicators.
• Applications: Gas, Steam, and Wind Turbine control, industrial drives, balance-of-plant (BOP) control.

Detailed Product Description:

As an industrial automation professional, I can elaborate on the significance of the GE IS220UCSAH1A. In the evolution of GE’s Speedtronic turbine control systems, the Mark VIe represented a significant leap, moving towards a more distributed, Ethernet-based architecture. The IS220UCSAH1A is a cornerstone of this architecture, acting as the centralized computational engine for a given control segment. It’s not just an interface; it’s a dedicated industrial computer designed for high reliability and real-time performance in critical applications.

Core Features and Functionality: The Brain of the Mark VIe

The IS220UCSAH1A is specifically engineered for the demanding world of turbine control:

1. High-Performance Microprocessor: At its heart, the IS220UCSAH1A utilizes a Freescale Power PC (PowerQUICC II PRO) processor, typically clocked at 667 MHz. This provides the necessary processing power to execute complex control algorithms, perform calculations, and manage large volumes of data in real-time, crucial for the precise control of large rotating machinery.

2. Real-Time Operating System (QNX Neutrino): The module runs on the QNX Neutrino operating system. QNX is a highly regarded, real-time multitasking OS known for its deterministic performance, small footprint, and exceptional reliability, making it ideal for industrial control applications where timing and responsiveness are critical.

3. Dedicated Network Connectivity (IONet): A key differentiator of the Mark VIe is its reliance on IONet (I/O Network), which is a private, high-speed (100 Mbps) Ethernet network specifically for communication between the controller (UCSA) and the distributed I/O packs. The IS220UCSAH1A features multiple Ethernet ports (typically 6) to support this networked I/O, as well as additional Ethernet drivers for the plant-level control network. This distributed I/O architecture reduces wiring complexity and enhances system flexibility.

4. Robust Memory and Storage: The module typically includes a substantial amount of DDR SDRAM (e.g., 256 MB or 512 MB) for its operational needs. It also employs compact flash storage for its application code and configuration, ensuring non-volatile storage and quick boot-up.

5. Conformal Coating: The Printed Circuit Board (PCB) inside the IS220UCSAH1A often features a conformal coating. This thin polymeric film protects the electronic components from moisture, dust, chemical vapors, and extreme temperatures, significantly extending the module’s lifespan in harsh industrial environments.

6. Diagnostic LEDs and USB Port: The front faceplate of the module is equipped with several LED indicators (e.g., Power, Boot, Online, Flash, DC, Diag, and Link/Act for Ethernet) that provide immediate visual status of the module’s operation and communication activity, aiding in diagnostics. A USB port is typically available for local connection, often for maintenance or debugging purposes.

7. Power and Cooling: The module requires a power supply in the range of 18 VDC to 32 VDC (with a typical consumption of about 12 Watts). Its efficient design often allows for passive cooling (no fans required), further enhancing its reliability by eliminating moving parts and reducing dust ingress.

8. Mounting and Form Factor: The IS220UCSAH1A is designed as a single-boxed component for base-mounting within a cabinet. Its compact dimensions (approx. 150 mm L x 100 mm W x 50 mm H) allow for efficient use of cabinet space.

9. System Architectures: The IS220UCSAH1A can be integrated into various control architectures:

   • Simplex: A single controller for non-critical applications.
   • Dual Redundant: Two controllers operating in parallel for increased availability (often used for Balance of Plant control).
   • Triple Modular Redundancy (TMR): Three controllers running in parallel, with a voting mechanism to ensure maximum reliability and fault tolerance, essential for critical turbine protection and control. The Mark VIeS is the safety-certified version often using TMR for Safety Instrumented Functions (SIFs).

While powerful, it’s noted that the UCSA controller platform (including IS220UCSAH1A) might not have enough processing power for some highly advanced model-based control applications, which might require more specialized controllers within the GE ecosystem. It is also important to note that this controller is generally not certified for IEC61508 safety loop usage in its standard configuration, as that is the domain of the Mark VIeS system with its unique certified hardware and software blocks.

Technical Specifications:

Applications:

The GE IS220UCSAH1A is a core component in the control systems for a wide range of industrial applications, primarily focusing on rotating machinery:

• Gas Turbines: Providing precise control over fuel delivery, combustion, speed, load, temperature, and various auxiliary systems.
• Steam Turbines: Managing steam flow, pressure, speed, and overall power generation for both conventional and combined-cycle plants.
• Wind Turbines: Used in the control and management systems of large-scale wind turbines, optimizing power generation and ensuring safe operation.
• Combined-Cycle Power Plants: As part of the integrated control solution that manages both gas and steam turbines, as well as heat recovery steam generators (HRSGs) and balance-of-plant (BOP) equipment.
• Industrial Drives and Compressors: Controlling large industrial motors, pumps, and compressors where high-speed and reliable control is required.
• Modernization and Retrofits: The Mark VIe platform, utilizing modules like the IS220UCSAH1A, is designed to be modular and can be used for upgrading older turbine control systems (e.g., Mark V) without a full rip-and-replace, reducing project costs and downtime.

Related Products and Systems:

The GE IS220UCSAH1A is part of a comprehensive ecosystem of GE Mark VIe components:

• GE Mark VIe Control System: The overarching distributed control system platform for which this controller is designed.
• GE Mark VIeS Safety Control System: The safety-certified variant of the Mark VIe, which uses unique hardware and software, but may still rely on similar UCSA platforms for certain non-safety control aspects or overall system integration.
• Mark VIe I/O Packs: These are the distributed I/O modules (e.g., PDIA, PDIO, TBAI, RTDA, TCDA, etc.) that connect directly to field devices. They communicate with the IS220UCSAH1A over the IONet.
• Mark VIe Terminal Boards: These are the physical wiring interfaces for the I/O packs.
• ControlST Software Suite: This is the engineering environment (e.g., ToolboxST, Workbench) used to configure, program, diagnose, and maintain the IS220UCSAH1A and the entire Mark VIe system.
• Ethernet Network Switches: For connecting the IS220UCSAH1A to other controllers, operator workstations, and plant networks.
• Power Supply Modules: Provide the necessary 24 VDC power to the IS220UCSAH1A and other Mark VIe components.
