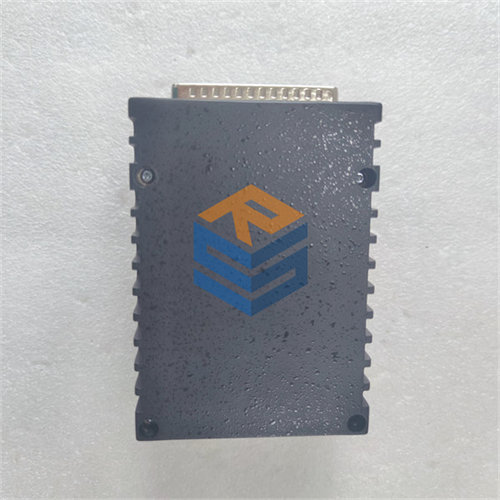

GE IS221YAICS1B

الوصف

The GE IS221YAICS1B is a Mark VIe controller I/O pack used in GE control systems, primarily for industrial applications like power generation. Its main function is to handle various analog and discrete input/output signals, allowing the controller to interface with a wide range of field devices.

Based on the product’s documentation, the IS221YAICS1B is a more recent, conformal-coated version of a previous module, which means it has a protective coating on the circuit board. This enhances its durability and makes it suitable for use in harsh industrial environments.

Key Features and Specifications

This module is designed to handle a variety of input and output signals, making it a versatile component in a control system.

• Input Voltage: It operates on a 24-28 V DC input power.
• Analog Inputs: The module supports several types of analog inputs:
  • 8 channels: Can read signals from -10 to +10 V DC or 0 to 20 mA DC.
  • 2 channels: Can read signals from -5 to +5 V DC or -1 to 20 mA DC.
• Analog Outputs: It provides analog outputs from 0 to 16.3 V DC or 0 to 20 mA DC.
• Transmitter Power: The module can also provide power to external devices, such as analog transmitters, with a dedicated 24 V DC output at 21 mA DC.
• Operating Temperature: The module is designed to operate in a wide temperature range, from -40°C to +70°C.

This module is a key component for connecting field wiring to a Mark VIe controller, enabling the system to precisely monitor and control critical machinery in power generation and other industrial processes.
