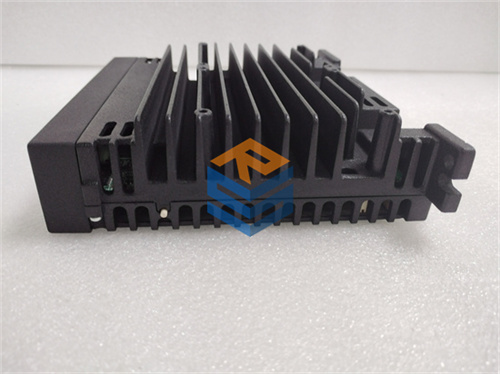

GE IS420PVIBH1B

الوصف

The GE IS420PVIBH1B is a Vibration Monitor I/O Pack for the GE Mark VIe control system. This module is an essential component for monitoring the health of rotating machinery, such as turbines and generators, by providing a crucial interface for vibration and position sensors.

Key Features and Functionality

The IS420PVIBH1B, often referred to as a PVIB I/O pack, is designed for high-performance vibration monitoring. It works by connecting to a terminal board, which in turn connects to various field sensors. The module then processes these signals and sends the data to the main controller over the system’s network.

• Sensor Interface: It can monitor up to 13 sensors simultaneously. It is compatible with a wide range of vibration sensors, including eddy-current probes, accelerometers, and seismic sensors. This versatility makes it suitable for many different types of machinery.
• Redundancy and Reliability: The module can be used in both simplex and Triple Modular Redundancy (TMR) configurations. In a TMR setup, three PVIB packs are used to provide a fault-tolerant system, which is critical for safety-related applications.
• Signal Processing: The I/O pack has a local processing unit that conditions and processes the raw sensor data. This includes features like configurable gain and the ability to detect open-circuit faults, which enhances the reliability of the system.
• Connectivity: It connects to the Mark VIe system via two RJ-45 Ethernet ports and interfaces with the terminal board through a DC-37 pin connector.

Key Specifications
