GE+IC670GBI102D

الوصف

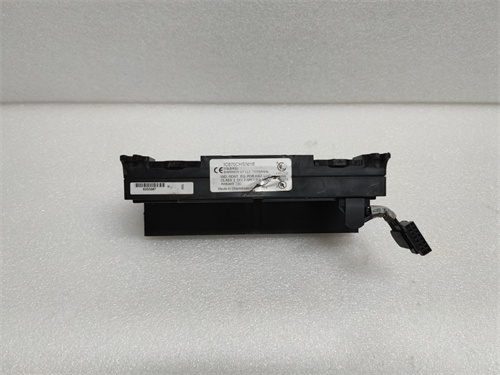

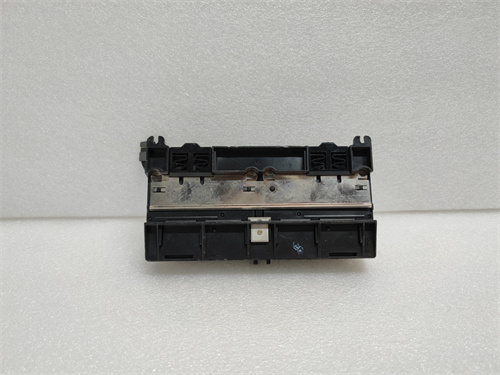

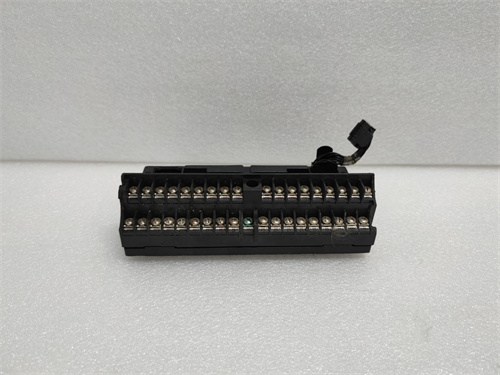

GE+IC670GBI102D DCS PLC Module

Product Name:

GE+IC670GBI102D DCS PLC Module

The GE+IC670GBI102D is a Distributed Control System (DCS) PLC module designed for use in industrial automation and control applications. This module is part of General Electric’s (GE) automation portfolio, specifically designed for the GE 90-30 PLC series and can also be used in larger GE Series 90-70 systems. It serves as a vital component for managing, controlling, and monitoring various processes in industries such as manufacturing, oil & gas, chemical processing, power generation, and more.

Product Description:

The GE+IC670GBI102D is a gateway module for GE’s control system, facilitating communication between different devices and control systems. It connects with other automation hardware and field devices through Modbus communication and interfaces with programmable logic controllers (PLCs). The IC670GBI102D module is designed to interface GE’s PLCs with industrial networks, allowing for data exchange with external systems and field devices over a Modbus RTU network.

This Modbus interface module enables smooth integration of GE PLCs into a broader industrial network, allowing for remote monitoring and control of processes. It’s particularly suited for environments requiring real-time data exchange, such as process control, monitoring, and industrial automation applications where precise control and reliability are critical.

Product Parameters & Specifications:

General Parameters:

• Model: GE+IC670GBI102D
• Product Type: Modbus Interface Module
• Category: DCS (Distributed Control System) / PLC (Programmable Logic Controller) module
• Primary Function: Facilitates communication between GE PLC systems and Modbus RTU field devices.
• Protocol: Modbus RTU for industrial communication

Control and Communication:

• Communication Protocols:
  • Modbus RTU (Remote Terminal Unit)
  • Modbus Master/Slave (Allows the PLC system to act as both a master and slave device within a Modbus RTU network)
• Data Transmission Rate: Typically supports 9600 to 115200 baud rates, configurable for different industrial network speeds.
• Network Connection: Uses a serial connection (RS-232 or RS-485) to communicate with field devices and other controllers.
• Number of Modbus Slave Devices Supported: Typically supports up to 32 slave devices on the Modbus network.

Input/Output Characteristics:

• Digital Inputs: Supports digital signals from Modbus field devices.
• Digital Outputs: Can transmit control signals to Modbus field devices (e.g., actuators or sensors).
• Input/Output Channels: The module typically supports multiple Modbus channels, providing communication for several devices simultaneously.

Power Supply and Voltage:

• Nominal Input Voltage: Typically 24 VDC for PLC control systems.
• Voltage Range: Typically operates in the range of 18-30 VDC.
• Power Consumption: Approximately 1-2 W, depending on the system configuration.

Physical Specifications:

• Mounting: This module is designed to fit in GE Series 90-30 or 90-70 rack-mounted systems. Typically, it would be installed in a standard 19-inch rack.
• Module Dimensions: The IC670GBI102D typically has dimensions around 4.6 inches (height) and 3.6 inches (depth).
• Weight: Around 0.5 kg (1.1 lbs).
• Protection Rating: Typically rated IP20, which means it’s intended for installation in control cabinets or enclosures.

Environmental Specifications:

• Operating Temperature: Typically 0°C to 60°C (32°F to 140°F), suitable for most industrial environments.
• Storage Temperature: -40°C to 85°C (-40°F to 185°F).
• Relative Humidity: Typically supports operation at 5% to 95%, non-condensing.
• Shock and Vibration: Designed to meet industrial shock and vibration resistance as per IEC 60068 standards.
• EMC Compliance: Meets EMC (Electromagnetic Compatibility) standards to minimize interference with other equipment.

Reliability and Safety:

• Redundancy: The module does not offer internal redundancy but can be part of a redundant control system when integrated with redundant PLCs and power supplies.
• Overvoltage Protection: Equipped with overvoltage protection to safeguard against electrical spikes.
• Isolation: Galvanic isolation between input/output circuits and the system controller to protect from electrical faults and ground loops.
• Short Circuit Protection: Features overcurrent protection to safeguard internal circuits.

Compliance and Certification:

• CE Marking: Meets European safety standards for industrial automation equipment.
• UL Certification: Compliant with UL508 for industrial control equipment.
• RoHS Compliant: The module is free from hazardous substances as per RoHS (Restriction of Hazardous Substances) directives.
• CSA Certified: CSA certification for safety and reliability in industrial applications.

Key Features & Advantages:

1. Modbus RTU Communication: Enables seamless communication between GE PLCs and Modbus-compatible field devices, providing an effective integration solution.

2. Master/Slave Capability: The module supports both Modbus master and slave communication modes, allowing for flexibility in system design.

3. Easy Integration: Allows easy integration of GE PLCs into existing Modbus networks, ensuring smooth data exchange and centralized process control.

4. Compact and Robust Design: Compact form factor and rugged construction for use in harsh industrial environments.

5. Wide Application Range: Ideal for process control, oil and gas, chemical, power generation, and manufacturing automation systems requiring reliable communication.

6. Real-Time Data Handling: Offers real-time communication for monitoring, control, and diagnostics of industrial systems.

Applications:

• Oil & Gas: Connecting field sensors and actuators to PLCs for well control, pipeline monitoring, and system automation.
• Chemical Processing: Used in chemical plants for monitoring and controlling pumps, valves, and other process equipment.
• Power Generation: GE+IC670GBI102D integrates with power plant systems to control turbines, boilers, and other critical machinery.
• Manufacturing: Facilitates communication between PLC systems and robotics or conveyor systems on the shop floor.
• Water Treatment: Integrates with sensors and controllers for real-time monitoring and control of water treatment facilities.

Conclusion:

The GE+IC670GBI102D DCS PLC Module is a Modbus RTU interface designed to enable seamless communication between GE PLC systems and field devices in industrial automation applications. It supports both master and slave communication modes, making it a versatile solution for industrial control systems. Whether in manufacturing, oil and gas, chemical, or power generation, this module provides essential connectivity and real-time data exchange in a reliable, robust, and easy-to-integrate form.
