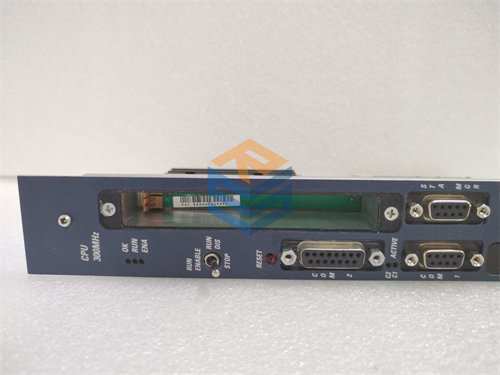

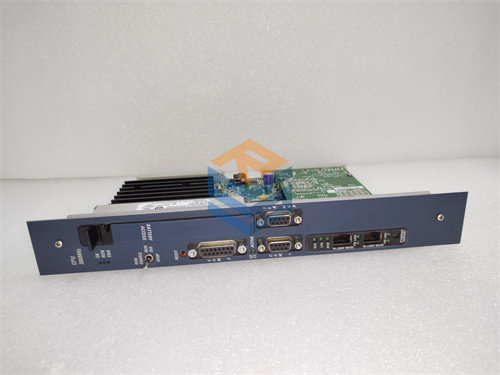

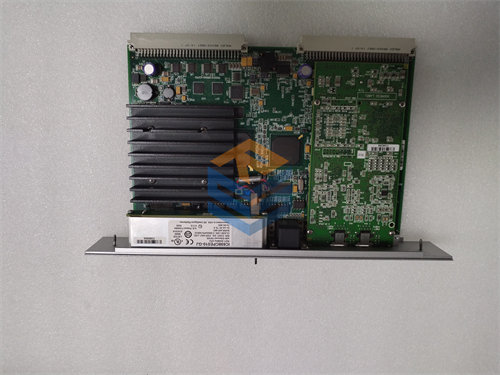

GE+IC698CPE010

الوصف

The GE IC698CPE010 is a CPU Module for the GE Fanuc RX3i programmable logic controller (PLC) platform. This product is specifically designed for Distributed Control Systems (DCS) and is widely used in industrial automation, process control, and other complex control systems where high performance and reliability are essential.

Here is a detailed breakdown of the product:

Product Name:

• GE Fanuc IC698CPE010 – RX3i CPU Module

Product Description:

The IC698CPE010 is a CPU module for the GE Fanuc RX3i PLC system, designed to provide high-performance control, flexible I/O handling, and robust communications in a modular, distributed control environment. It is the central processing unit of the RX3i series and is used in a wide range of industrial automation systems, including process control, machine control, water treatment, and building management.

This CPU module is engineered to support both discrete and process control applications, offering real-time performance and built-in communication capabilities, which allows for seamless integration with other modules and third-party devices. It is compatible with the Proficy iFIX SCADA software and Proficy Machine Edition for programming, which enhances its flexibility in various industrial applications.

Key Features:

1. High-Performance Processor: The IC698CPE010 features a 32-bit processor that ensures fast and reliable control execution for complex control tasks.
2. Modular Design: Can be paired with a variety of I/O modules to create customized solutions for various applications.
3. Integrated Communication: Built-in support for communication protocols such as Ethernet, Modbus, and PROFIBUS, facilitating smooth communication within the industrial network.
4. Real-Time Control: Designed for real-time operations, ensuring that critical processes are handled with precision.
5. Scalability: The RX3i system is highly scalable, allowing the system to grow as needed without compromising performance.

Product Parameters & Specifications:

General Information:

• Product Family: GE Fanuc RX3i Series
• Module Type: CPU Module for control systems
• System Compatibility: Part of the RX3i modular platform that includes a range of I/O modules and communication devices.
• Processor Type: 32-bit processor for real-time control with fast processing speed.

Electrical Specifications:

• Input Voltage: Typically operates on 24V DC for the RX3i system.
• Power Consumption: Around 20W, depending on system configuration.
• Current Consumption: Typically consumes around 800 mA at 24V DC (this may vary with configuration and connected modules).

Performance Specifications:

• Processor Speed: High-performance 32-bit processor, with a clock speed sufficient to support real-time control applications and fast program execution.
• Memory: Features non-volatile memory for storing programs and data. The memory size is designed for handling large applications and complex control systems.
  • Program Memory: Supports up to 8MB of program memory, allowing for large-scale control programs.
  • Data Memory: Provides sufficient data memory to handle multiple I/O operations and complex calculations.

I/O & Expansion:

• I/O Expansion: The RX3i system supports a wide range of I/O modules, which can be added to expand the system. The IC698CPE010 can handle I/O through connected rack-mounted I/O modules.
• Digital I/O: Supports up to 2048 digital I/O points.
• Analog I/O: Supports up to 256 analog I/O points.
• High-Speed I/O: It is capable of handling high-speed I/O processing for real-time control.

Communication Protocols:

• Ethernet: Built-in Ethernet communication for communication between modules and other systems, supporting both TCP/IP and UDP protocols.
• Modbus: Supports Modbus TCP/IP for communication with other systems and devices.
• PROFIBUS: Optionally supports PROFIBUS DP for integration with field devices and remote I/O.
• Serial Communication: Support for RS232 and RS485 for legacy communication with external devices.

Software and Programming:

• Programming Environment: Supports programming in Proficy Machine Edition and CIMPLICITY. It is compatible with the Proficy iFIX SCADA software, offering users a complete solution for both control and monitoring.
• Languages Supported: Complies with IEC 61131-3 for PLC programming languages such as Ladder Logic (LD), Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Chart (SFC).
• Advanced Functionality: Supports analog control, PID loops, and other advanced functions for process control.

Diagnostics & Troubleshooting:

• Status LEDs: Equipped with LED indicators for system status (e.g., power, communication, errors).
• Fault Detection: Built-in diagnostics to detect hardware or software issues, with real-time monitoring of system performance and health.
• Maintenance and Monitoring: The Proficy software allows detailed diagnostic reports and real-time performance tracking.

Environmental Specifications:

• Operating Temperature Range: Typically 0°C to 60°C (32°F to 140°F).
• Storage Temperature Range: Typically -20°C to 70°C (-4°F to 158°F).
• Humidity: Designed to operate in 5% to 95% non-condensing humidity.
• Vibration Resistance: Built to withstand industrial environments with vibration resistance as per IEC 60068.

Physical Specifications:

• Module Dimensions: 4.29 inches x 6.88 inches x 2.28 inches (W x H x D)
• Weight: Approximately 1.5 lbs (680 grams).

Compliance and Certification:

• CE Marked: Meets European Union safety and environmental standards.
• UL Listed: Certified for use in North American markets under UL standards.
• RoHS Compliant: Free from hazardous materials in accordance with RoHS regulations.
• EMC Compliance: Designed to meet industrial electromagnetic compatibility (EMC) standards for noise immunity and operation in harsh environments.

Key Features & Benefits:

1. Modular System Design: The RX3i system is highly modular, allowing for easy scaling by adding more I/O modules or additional CPUs for larger systems.
2. Flexible Communication: Built-in support for Ethernet, Modbus, PROFIBUS, and serial communication protocols, ensuring compatibility with various field devices and other PLCs.
3. Real-Time Control: Designed for real-time process control applications, providing fast execution and synchronization.
4. Diagnostic and Fault-Tolerant: Advanced diagnostics and monitoring help to maintain system reliability and minimize downtime.
5. Large Program Capacity: With support for up to 8MB of program memory, it can handle complex and large-scale applications.

Applications and Use Cases:

• Process Control: Suitable for industries such as oil & gas, water treatment, and chemical processing, where real-time, high-performance control is needed.
• Machine Control: Ideal for complex machine control applications in manufacturing, automotive, and packaging industries.
• Building Automation: Used in HVAC and lighting control systems, ensuring energy-efficient and automated building management.
• Automated Manufacturing: The RX3i system is used in automated production lines for assembly, material handling, and robotic control.

Comparison with Competitors:

• Siemens S7-1200 / S7-1500: Siemens offers robust PLC systems, but the GE IC698CPE010 excels in modularity, advanced process control, and communication flexibility.
• Rockwell Automation (Allen-Bradley ControlLogix): While Rockwell’s ControlLogix offers a similarly high level of control, the RX3i system has distinct advantages in scalability and integration with GE’s software suite.

Conclusion:

The GE IC698CPE010 RX3i CPU module is a highly reliable, high-performance CPU designed for industrial automation and control systems. Its modular design, advanced communication options, and real-time control capabilities make it an excellent choice for a wide range of applications, from process control to machine automation. The flexibility and scalability of the RX3i system enable users to build complex, custom solutions to meet their specific control needs.
