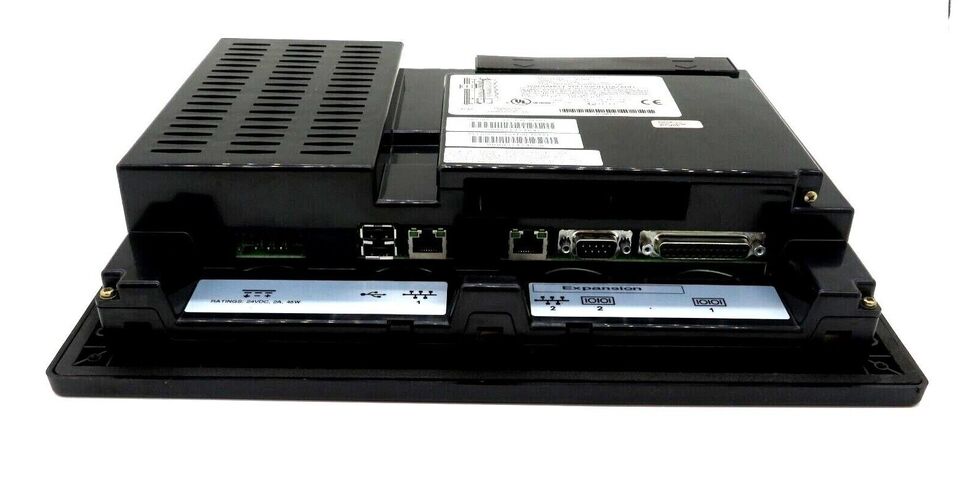

GE+IC754CSL12CTD

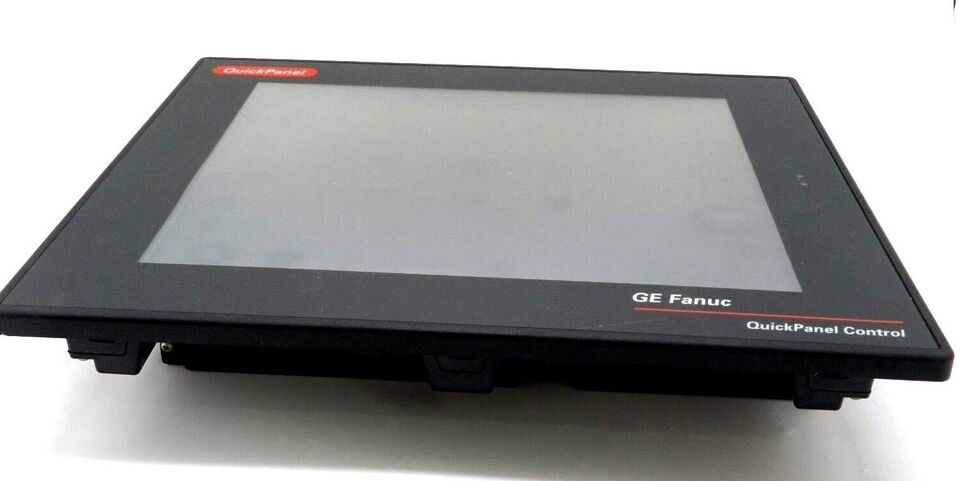

⁦GE+IC754CSL12CTD⁩ - الصورة ⁦2⁩

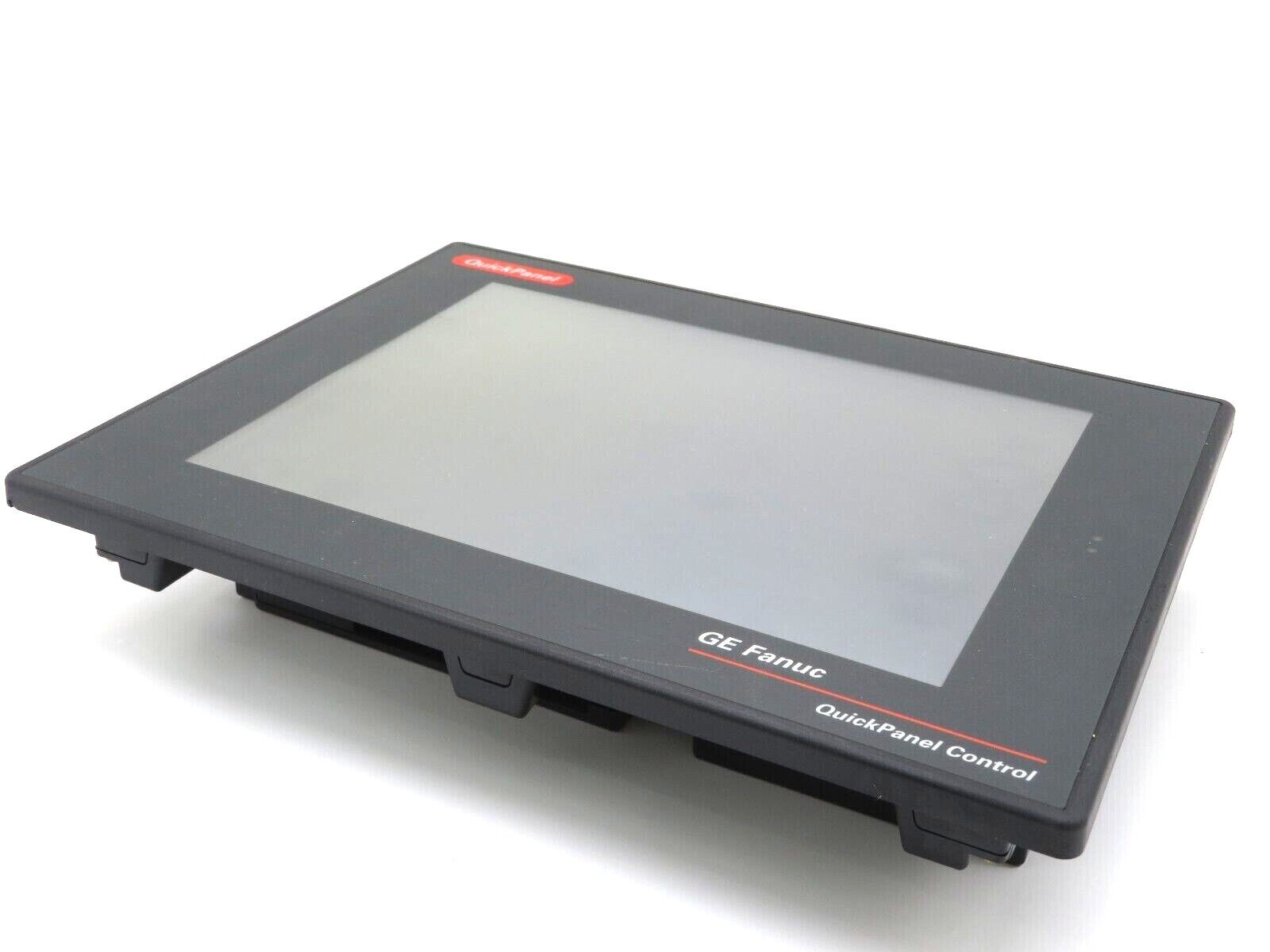

⁦GE+IC754CSL12CTD⁩ - الصورة ⁦3⁩

GE+IC754CSL12CTD

  • Model: GE IC754CSL12CTD
  • Type: PLC (Programmable Logic Controller) Module
  • System Compatibility: Designed for GE Series 90-30 and Versamax PLC platforms
  • Input Voltage: Typically 24V DC (may vary based on specific configurations)
  • Dimensions: Dependent on the installation configuration (often rack-mounted)
  • Operating Temperature Range: -20°C to 60°C, designed for industrial environments
  • Mounting: Typically rack-mounted, integrated within GE PLC system racks
  • Weight: Approx. 0.5 – 1 kg, depending on configuration
  • I/O Capacity: Configurable for both digital and analog inputs and outputs
  • Signal Types:
    • Digital I/O for discrete signals (on/off, binary)
    • Analog I/O for continuous signals (e.g., temperature, pressure)
  • Redundancy Options: Includes power and communication redundancy for enhanced reliability
احصل على عرض أسعار
التصنيف:

الوصف

Product Name:

GE IC754CSL12CTD DCS PLC Module

Product Description:

The GE IC754CSL12CTD is a high-performance PLC (Programmable Logic Controller) module designed by General Electric for use in industrial automation and control systems. It is a key component in GE’s Series 90-30 and Versamax PLC product lines. This specific model is intended for demanding DCS (Distributed Control System) applications, offering enhanced control and connectivity for process automation. The IC754CSL12CTD module integrates easily into GE’s control systems, providing high-speed processing, robust I/O handling, and scalable control for a wide range of industrial applications.

The module features advanced communication protocols and diagnostic capabilities, making it suitable for mission-critical applications in industries such as manufacturing, power generation, water treatment, and more. The IC754CSL12CTD is designed to streamline the automation process, improving the efficiency and reliability of control systems.

Product Parameters:

  • Model: GE IC754CSL12CTD
  • Type: PLC (Programmable Logic Controller) Module
  • System Compatibility: Designed for GE Series 90-30 and Versamax PLC platforms
  • Input Voltage: Typically 24V DC (may vary based on specific configurations)
  • Dimensions: Dependent on the installation configuration (often rack-mounted)
  • Operating Temperature Range: -20°C to 60°C, designed for industrial environments
  • Mounting: Typically rack-mounted, integrated within GE PLC system racks
  • Weight: Approx. 0.5 – 1 kg, depending on configuration
  • I/O Capacity: Configurable for both digital and analog inputs and outputs
  • Signal Types:
    • Digital I/O for discrete signals (on/off, binary)
    • Analog I/O for continuous signals (e.g., temperature, pressure)
  • Redundancy Options: Includes power and communication redundancy for enhanced reliability

Specifications:

  1. I/O Support:

    • Supports digital and analog I/O channels for various industrial control and automation needs.
    • The number of I/O points and types (digital vs. analog) is configurable based on application requirements.

  2. Communication Protocols:

    • Compatible with Modbus, Profibus, and Ethernet/IP protocols for seamless communication across different devices and systems.
    • Built to support TCP/IP, serial, and Ethernet communications, providing flexibility for network integration.
    • Supports advanced network integration to link with other control systems, field devices, and remote stations.

  3. Real-Time Control:

    • Capable of real-time processing for instantaneous response to changes in control variables, ensuring quick adaptation to process demands.
    • Provides advanced closed-loop control for continuous process regulation.
    • Offers the ability to process complex algorithms in real-time, making it suitable for high-speed, mission-critical applications.

  4. Diagnostic and Monitoring:

    • Equipped with advanced diagnostic features to track the health and performance of the system.
    • Monitors system performance, logging critical data for preventive maintenance and troubleshooting.
    • Built-in self-diagnostics to detect errors and anomalies, enabling quick troubleshooting and reducing system downtime.

  5. Fault Tolerance and Redundancy:

    • Redundant communication paths ensure that the system can continue functioning even if one communication route fails.
    • Power supply redundancy to ensure uninterrupted system performance in the event of power interruptions.

  6. Processing Power:

    • High-performance microprocessor-based architecture ensures fast execution of logic and control tasks.
    • Large program storage and advanced processing power make it ideal for complex, high-demand applications in industrial automation.

  7. System Integration:

    • Easily integrates into GE’s Series 90-30 and Versamax PLC systems, forming part of a distributed control and monitoring solution.
    • Compatible with a wide range of I/O devices, sensors, actuators, and other control devices in industrial settings.
    • Supports modular expansion, allowing for system growth as project needs evolve.

  8. Environmental Durability:

    • Designed to withstand the harsh conditions typically found in industrial environments, such as extreme temperatures, vibration, and electromagnetic interference (EMI).
    • Ideal for factory floors, manufacturing plants, power plants, and other mission-critical environments.

  9. Power Consumption:

    • Optimized low power consumption for long-term operational efficiency, while still providing the necessary processing power.
    • Designed to reduce energy usage in systems requiring continuous operation.

  10. Software Support:

    • Can be programmed using GE’s Logic Developer PLC software or Proficy Machine Edition for seamless integration into GE’s control environment.
    • Supports easy modification, troubleshooting, and maintenance through software tools.

Applications:

The GE IC754CSL12CTD DCS PLC Module is suited for a wide range of industrial applications, including:

  • Manufacturing Automation:

    • Controls production lines, robotic arms, conveyors, and other automated machinery.
    • Ensures smooth and efficient operations in industries such as automotive, electronics, food and beverage, and packaging.

  • Power Generation:

    • Monitors and controls turbines, generators, pumps, and auxiliary equipment in power plants.
    • Facilitates real-time control of complex systems to optimize energy production.

  • Oil & Gas:

    • Supervises drilling operations, refining processes, and pipeline management.
    • Provides critical control for oil rigs and refineries where real-time data processing is required for safe and efficient operations.

  • Water and Wastewater Treatment:

    • Manages pumping stations, filtration systems, and chemical dosing in water treatment plants.
    • Ensures compliance with regulatory standards by optimizing water treatment processes.

  • Chemical Processing:

    • Controls chemical reactors, mixing processes, and distillation units in chemical plants.
    • Ensures precision in controlling hazardous chemicals and processes for safety and efficiency.

  • Building Automation:

    • Integrates with HVAC systems, lighting, and other building automation systems to improve energy efficiency and operational comfort.

Conclusion:

The GE IC754CSL12CTD DCS PLC Module offers exceptional control, diagnostics, and system integration for industrial applications. With its high-speed processing, real-time control capabilities, and support for advanced communication protocols, it is an excellent choice for automating complex systems. Whether you’re working in manufacturing, power generation, chemical processing, or any other industrial sector, this module provides reliable and scalable control solutions to optimize your operations.

Let me know if you need additional details or specific requirements!
