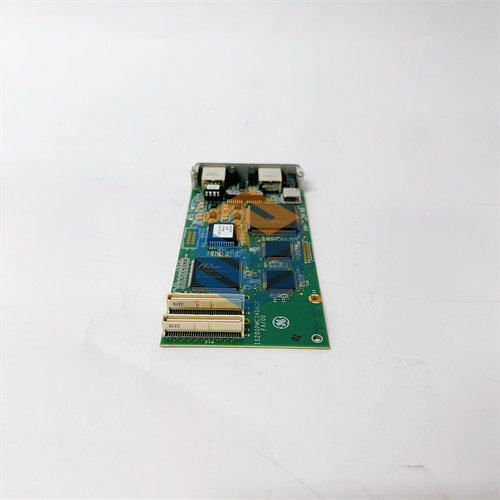

GE+IS200PMCIH1AAA6BA00

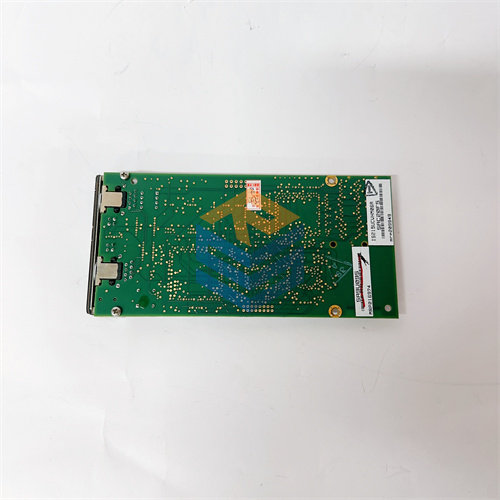

⁦GE+IS200PMCIH1AAA6BA00⁩ - الصورة ⁦2⁩

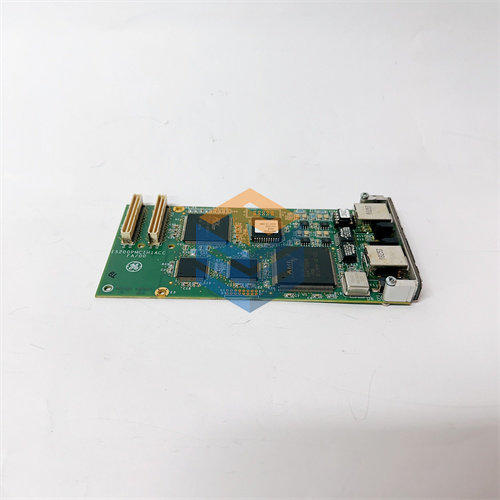

⁦GE+IS200PMCIH1AAA6BA00⁩ - الصورة ⁦3⁩

GE+IS200PMCIH1AAA6BA00

  • Model: GE+IS200PMCIH1AAA6BA00
  • Control System: Distributed Control System (DCS)
  • Module Type: PLC (Programmable Logic Controller)
  • Power Supply: 24V DC (nominal)
  • Operating Temperature Range: -40°C to +70°C
  • Storage Temperature Range: -40°C to +85°C
  • Humidity: 5% to 95% (non-condensing)
  • Mounting Type: Rack/Chassis Mount
  • Weight: Approx. 1.5 kg
  • Dimensions: 200mm x 150mm x 60mm
  • Protection Rating: IP20 (Indoor Use)
احصل على عرض أسعار
التصنيف:

الوصف

GE+IS200PMCIH1AAA6BA00 DCS PLC Module

Product Name:

GE+IS200PMCIH1AAA6BA00 DCS PLC Module

Product Description:

The GE+IS200PMCIH1AAA6BA00 is a powerful Programmable Logic Controller (PLC) module from General Electric (GE), designed for use in Distributed Control Systems (DCS). This module is a part of GE’s Mark VIe series, commonly used in industrial automation applications that require reliable process control and monitoring. It is engineered for use in industries such as power generation, oil and gas, chemical processing, and other sectors requiring high-performance control systems.

The IS200PMCIH1AAA6BA00 module is designed to provide high-speed data processing, advanced communication capabilities, and flexible I/O configurations. It integrates seamlessly into control systems to manage various complex processes, enabling efficient control of critical industrial operations.

The module supports redundant configurations, ensuring high availability and fault tolerance for mission-critical applications. It is built to withstand the challenging conditions typically found in industrial environments, offering rugged durability and reliability.

Product Parameters:

  • Model: GE+IS200PMCIH1AAA6BA00
  • Control System: Distributed Control System (DCS)
  • Module Type: PLC (Programmable Logic Controller)
  • Power Supply: 24V DC (nominal)
  • Operating Temperature Range: -40°C to +70°C
  • Storage Temperature Range: -40°C to +85°C
  • Humidity: 5% to 95% (non-condensing)
  • Mounting Type: Rack/Chassis Mount
  • Weight: Approx. 1.5 kg
  • Dimensions: 200mm x 150mm x 60mm
  • Protection Rating: IP20 (Indoor Use)

Key Features:

  1. High-Speed Processing:
    The IS200PMCIH1AAA6BA00 module offers fast data processing and response times for real-time industrial control, ensuring smooth operation of complex systems and fast adjustment to changing conditions.

  2. Redundant System Support:
    The module can be part of a redundant system configuration to enhance fault tolerance and ensure continuous operation in critical applications. This redundancy minimizes downtime and improves system reliability.

  3. Flexible I/O Configuration:
    The module supports a wide variety of I/O options, including digital and analog inputs/outputs, making it adaptable to various industrial applications. It can interface with sensors, actuators, and other devices in the control system.

  4. Advanced Communication Protocols:
    The IS200PMCIH1AAA6BA00 module supports multiple communication protocols such as Ethernet/IP, Modbus, and Profibus for seamless integration with other controllers, systems, and devices, ensuring flexibility in system design.

  5. Diagnostics and Monitoring:
    This module provides advanced diagnostic tools, enabling continuous system health monitoring and real-time troubleshooting. It helps identify faults and performance issues before they affect the overall operation, contributing to efficient maintenance.

  6. Industrial Durability:
    Built to withstand extreme conditions, the GE+IS200PMCIH1AAA6BA00 module is designed for high durability and reliable performance in harsh industrial environments, including power plants and oil & gas facilities.

  7. Modular and Scalable Design:
    The module’s modular architecture allows for easy expansion of the control system by adding more modules. It can be customized to meet the specific needs of any industrial application.

  8. Support for Complex Control Strategies:
    This PLC module can handle complex control algorithms and multi-variable process control strategies, making it ideal for sophisticated and large-scale industrial operations.

  9. Energy-Efficient:
    The module is designed to operate efficiently, consuming minimal energy while still providing high performance, which helps reduce operational costs.

Product Specifications:

  • Model: GE+IS200PMCIH1AAA6BA00

  • Control System: Distributed Control System (DCS)

  • Module Type: Programmable Logic Controller (PLC)

  • Power Supply:

    • Nominal Voltage: 24V DC
    • Voltage Range: 18V to 30V DC
    • Power Consumption: 20W (typical)

  • Inputs:

    • Digital Inputs: 16
    • Analog Inputs: 8 (configurable)

  • Outputs:

    • Digital Outputs: 16
    • Analog Outputs: 8 (configurable)

  • Communication Ports:

    • Ethernet Ports: 2 (Ethernet/IP, Modbus)
    • Serial Ports: 1 (RS-232 or RS-485)

  • Redundancy:

    • Redundant Power Supply: Yes
    • Redundant Communication: Yes (supports hot standby configurations)

  • Operating Temperature Range: -40°C to +70°C

  • Storage Temperature Range: -40°C to +85°C

  • Humidity: 5% to 95% (non-condensing)

  • Mounting Type: Rack/Chassis Mount

  • Weight: Approx. 1.5 kg

  • Dimensions: 200mm x 150mm x 60mm

  • Protection Class: IP20 (Indoor Use)

  • Certifications:

    • CE
    • UL
    • RoHS

  • Safety Features:

    • Overcurrent protection
    • Short-circuit protection
    • Surge protection

Applications:

The GE+IS200PMCIH1AAA6BA00 module is ideal for high-performance control applications in a variety of industries, including:

  • Power Generation: For turbine, boiler, and generator control, particularly in renewable energy and fossil fuel power plants.
  • Oil & Gas: Process automation and control in exploration, extraction, and transportation of oil and gas.
  • Chemical and Petrochemical Industries: Reactor control, distillation processes, and batch processing.
  • Water Treatment Plants: Automated control of filtration, chemical dosing, and flow management systems.
  • Manufacturing and Assembly Lines: Process automation for material handling, packaging, and production lines.

Additional Notes:

  • High Availability: Supports redundant configurations (power supplies, communications, etc.), ensuring continued operation in mission-critical environments.
  • Remote Monitoring and Diagnostics: Equipped with diagnostic features for remote monitoring, reducing the need for on-site maintenance.
  • Advanced Control Algorithms: Capable of handling complex control strategies and logic, ensuring optimal process performance.

The GE+IS200PMCIH1AAA6BA00 is a versatile and reliable module that offers a robust solution for mission-critical industrial control systems. Its high-speed processing, redundant support, flexible I/O configurations, and industrial-grade durability make it an excellent choice for demanding applications.
