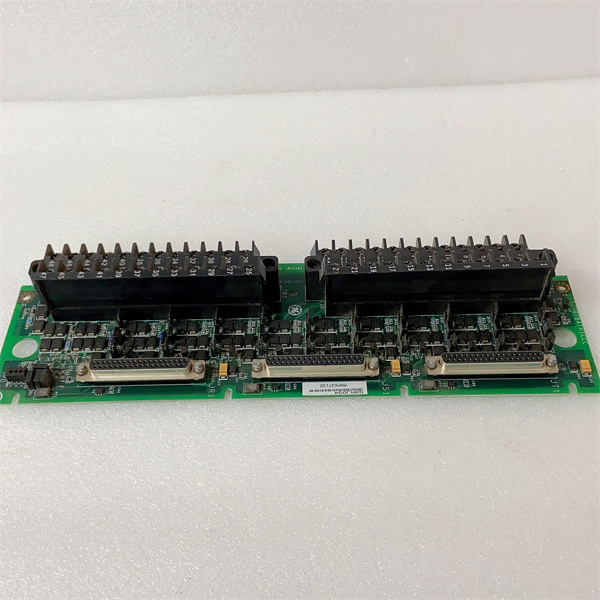

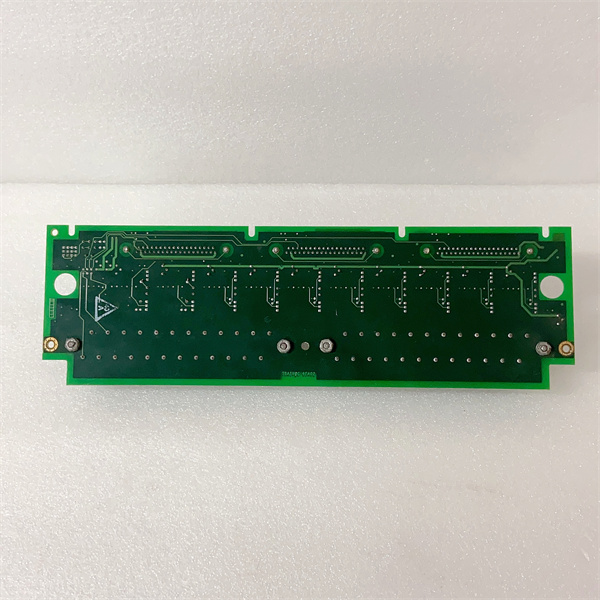

GE+IS200TBAIH1CCC

  • Model: GE IS200TBAIH1CCC
  • Module Type: Analog Input Module
  • Input Types Supported:
    • Voltage (0-10 V)
    • Current (4-20 mA)
    • Resistance (RTD, Thermocouple, etc.)
  • Input Channels: 8 input channels (configurable)
  • Input Resolution: 16-bit
  • Input Range:
    • Voltage: 0-10 V (Configurable range)
    • Current: 4-20 mA
    • Resistance: RTD and Thermocouple input ranges (depending on the specific configuration)
  • Nominal Input Voltage: 24 VDC (operating voltage range: 10-30 VDC)
  • Power Consumption: Typically 3 W
  • Signal Accuracy:
    • Voltage Input Accuracy: ±0.1% of full scale
    • Current Input Accuracy: ±0.1% of full scale
  • Operating Temperature Range: 0°C to 60°C
  • Humidity Range: 5% to 95% non-condensing
  • Diagnostics: LED indicators for status, errors, and input signal health
  • Mounting Type: Rack-mounted within GE control systems (Mark VIe or similar)
  • Dimensions: 13.0 cm x 8.0 cm x 5.5 cm (L x W x H)
  • Weight: Approx. 0.85 kg
  • Material: Industrial-grade housing for durability
  • Certification: UL, CE, and other industrial certifications
  • Connection Type: Terminal blocks for input connections, and RJ45 for Ethernet communication (if applicable)
احصل على عرض أسعار
التصنيف:

الوصف

GE IS200TBAIH1CCC DCS PLC Module

The GE IS200TBAIH1CCC is a high-performance analog input module designed for GE’s Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC). This module plays a key role in providing reliable and accurate data acquisition for process control and automation systems. It is ideal for applications in power generation, oil & gas, chemical processing, water treatment, and other industrial sectors that require precise monitoring and control of analog signals.

Product Name:

GE IS200TBAIH1CCC – Analog Input Module for DCS/PLC Systems

Product Description:

The GE IS200TBAIH1CCC is an advanced analog input module used in GE’s Mark VIe and similar Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC). It allows the system to process analog signals from field devices such as sensors, transmitters, and other process instruments. These analog inputs are critical for real-time monitoring and controlling processes in industries that rely on precise data for operational efficiency.

The module supports various signal types, ensuring it can be integrated into a wide variety of applications where precise measurements are essential. The IS200TBAIH1CCC is engineered to provide high accuracy and reliability in data acquisition, making it suitable for critical and demanding industrial environments. With a focus on ease of integration, the module supports a range of input signals, such as voltage, current, and resistance, and is equipped with diagnostic features for fault detection and system health monitoring.

Key Features:

  • High-Precision Analog Input: Offers accurate measurements from various types of analog sensors and devices.
  • Broad Signal Compatibility: Supports multiple input signal types including voltage (0-10 V), current (4-20 mA), and resistance inputs.
  • Built-in Diagnostics: Includes diagnostic indicators to help identify faults and ensure the module’s proper operation.
  • Scalable Integration: Easily integrates with other GE DCS/PLC components for comprehensive control and monitoring.
  • Modular Design: Allows for flexible installation within a modular system setup, optimizing space and reducing installation complexity.
  • High Reliability: Designed for continuous operation in harsh industrial environments.

Product Parameters & Specifications:

  • Model: GE IS200TBAIH1CCC
  • Module Type: Analog Input Module
  • Input Types Supported:
    • Voltage (0-10 V)
    • Current (4-20 mA)
    • Resistance (RTD, Thermocouple, etc.)
  • Input Channels: 8 input channels (configurable)
  • Input Resolution: 16-bit
  • Input Range:
    • Voltage: 0-10 V (Configurable range)
    • Current: 4-20 mA
    • Resistance: RTD and Thermocouple input ranges (depending on the specific configuration)
  • Nominal Input Voltage: 24 VDC (operating voltage range: 10-30 VDC)
  • Power Consumption: Typically 3 W
  • Signal Accuracy:
    • Voltage Input Accuracy: ±0.1% of full scale
    • Current Input Accuracy: ±0.1% of full scale
  • Operating Temperature Range: 0°C to 60°C
  • Humidity Range: 5% to 95% non-condensing
  • Diagnostics: LED indicators for status, errors, and input signal health
  • Mounting Type: Rack-mounted within GE control systems (Mark VIe or similar)
  • Dimensions: 13.0 cm x 8.0 cm x 5.5 cm (L x W x H)
  • Weight: Approx. 0.85 kg
  • Material: Industrial-grade housing for durability
  • Certification: UL, CE, and other industrial certifications
  • Connection Type: Terminal blocks for input connections, and RJ45 for Ethernet communication (if applicable)

Additional Features:

  • Channel Isolation: Provides electrical isolation between channels to prevent noise and interference.
  • Status LEDs: Real-time visual indicators for power status, communication health, and error conditions.
  • Signal Filtering: Includes optional filtering to improve signal quality, especially in noisy environments.
  • Redundancy: Supports redundant configurations for increased reliability in critical applications.
  • Field Calibration: Allows for field calibration to ensure high measurement accuracy over time.

Applications:

The GE IS200TBAIH1CCC module is designed for use in industries that require continuous monitoring and control of analog signals. Its key applications include:

  • Power Generation: For measuring parameters such as pressure, temperature, and flow from various sensors in power plants.
  • Oil & Gas: For acquiring data from field instrumentation, such as pressure and temperature sensors in remote locations.
  • Chemical Processing: For measuring process variables such as chemical composition, flow rates, and pH levels, which are vital for maintaining optimal processing conditions.
  • Water Treatment: Used to monitor water quality parameters such as pH, turbidity, and flow rate to ensure efficient treatment processes.
  • Manufacturing Automation: Captures analog data from automated machines, providing real-time feedback for process control.

Advantages:

  • Accuracy and Precision: Provides high-resolution measurements, crucial for processes where precise control is required.
  • Flexible Signal Inputs: Compatible with a wide range of analog signals, ensuring flexibility in system design and integration.
  • Easy Troubleshooting: Built-in diagnostic LEDs help quickly identify faults and prevent system downtime.
  • Scalable: Modular design allows for easy system expansion, and the ability to support multiple input types.
  • Reliability: Designed for harsh industrial environments, ensuring durability and dependable performance over time.

Selection and Installation Considerations:

  • Selection Consideration: The GE IS200TBAIH1CCC is ideal for applications requiring continuous monitoring of analog signals. It is particularly suited for industries like power generation, chemical processing, and manufacturing, where precise analog input data is essential for process control.

  • Installation Precautions:

    • Ensure the input signal types and ranges are compatible with the module’s specifications.
    • Check that the input voltage and current supply meet the module’s operating requirements (24 VDC).
    • Avoid installing in environments with excessive moisture, dust, or corrosive substances to prevent damage to the module.
    • Use appropriate calibration procedures to maintain accurate measurement over time.

For more detailed information, pricing, or support for the GE IS200TBAIH1CCC module, you can contact GE Automation or a local distributor.

This module is part of GE’s advanced control systems, offering exceptional reliability, accuracy, and flexibility for complex industrial applications.
