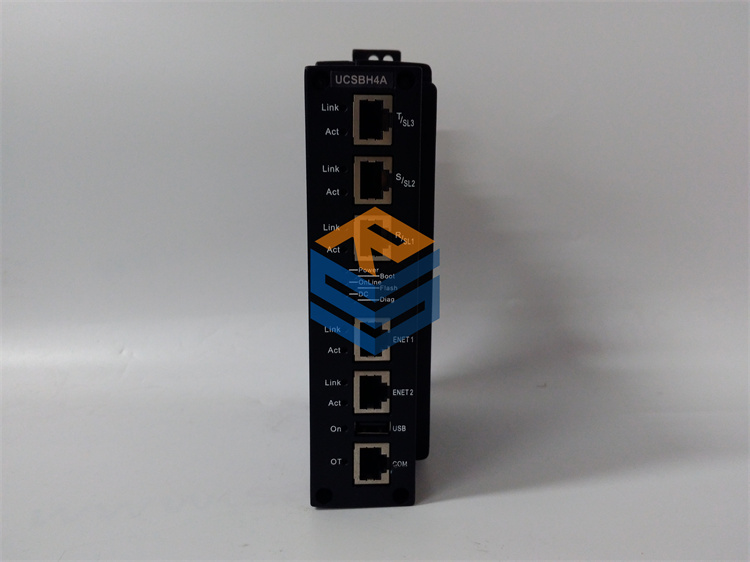

GE+IS420UCSBS1A

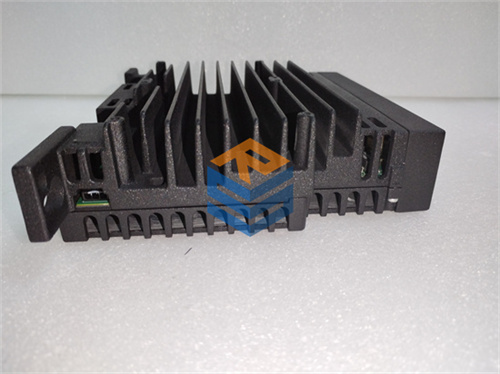

⁦GE+IS420UCSBS1A⁩ - الصورة ⁦2⁩

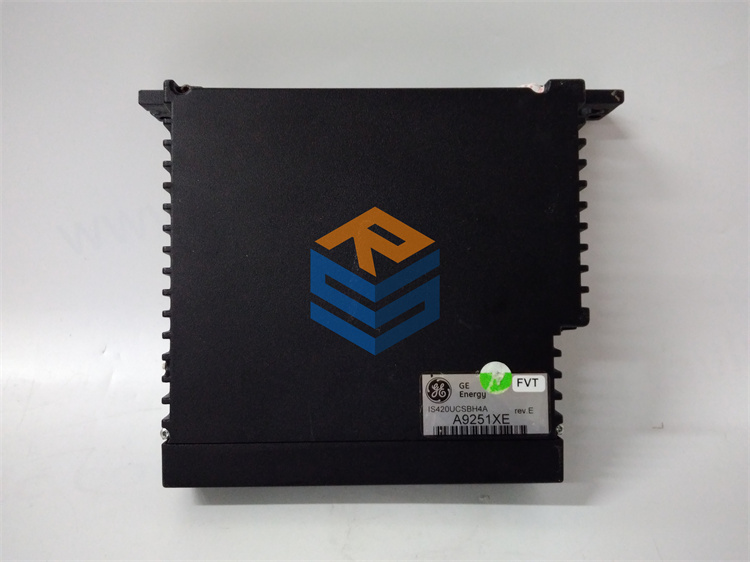

⁦GE+IS420UCSBS1A⁩ - الصورة ⁦3⁩

GE+IS420UCSBS1A

Product Parameters:

  • Model Number: IS420UCSBS1A
  • Module Type: Communication and Control System Module (UCCS)
  • Brand: General Electric (GE)
  • Control System Series: GE Mark VIe
  • Primary Application: Process control, communication between distributed I/O, signal conditioning, real-time monitoring, and diagnostics
  • Input/Output Interface: Digital, analog, and communication I/O support
  • Network Compatibility: Supports various communication protocols (e.g., Ethernet, Modbus, GE proprietary communication)
  • Operating Temperature Range: Typically -20°C to +70°C
  • Power Supply: Typically 24V DC (common in industrial control systems)
  • Mounting: Designed for DIN rail or panel mounting in industrial environments
  • Environmental Protection: Built to withstand harsh industrial environments, with protection against vibrations, electromagnetic interference (EMI), and temperature extremes
احصل على عرض أسعار
التصنيف:

الوصف

Product Name:

GE IS420UCSBS1A PLC Module

Product Description:

The GE IS420UCSBS1A is a module within the GE Mark VIe control system, designed primarily for communications and I/O management in industrial applications. It serves as part of the Universal Communication and Control System (UCCS) architecture, enabling seamless connectivity between various subsystems and components in complex industrial systems. The IS420UCSBS1A offers flexibility, scalability, and high reliability in controlling and monitoring industrial processes.

This module facilitates data transfer, signal processing, and system integration within the GE Mark VIe distributed control systems (DCS), typically found in power generation, oil and gas, chemical processing, and other heavy industries. It is equipped to handle real-time control and monitoring tasks, ensuring that critical processes run efficiently, safely, and without interruption.

Product Parameters:

  • Model Number: IS420UCSBS1A
  • Module Type: Communication and Control System Module (UCCS)
  • Brand: General Electric (GE)
  • Control System Series: GE Mark VIe
  • Primary Application: Process control, communication between distributed I/O, signal conditioning, real-time monitoring, and diagnostics
  • Input/Output Interface: Digital, analog, and communication I/O support
  • Network Compatibility: Supports various communication protocols (e.g., Ethernet, Modbus, GE proprietary communication)
  • Operating Temperature Range: Typically -20°C to +70°C
  • Power Supply: Typically 24V DC (common in industrial control systems)
  • Mounting: Designed for DIN rail or panel mounting in industrial environments
  • Environmental Protection: Built to withstand harsh industrial environments, with protection against vibrations, electromagnetic interference (EMI), and temperature extremes

Product Specifications:

Specification Details
Model Number IS420UCSBS1A
Brand General Electric (GE)
Series GE Mark VIe Control System
Module Type Universal Communication and Control System Module (UCCS)
Primary Application Communication, control, and integration of I/O in industrial systems
Network Protocols Ethernet, Modbus, GE proprietary protocols for communication between system components
I/O Interface Digital I/O, analog I/O, and communication I/O support
Power Supply Typically 24V DC
Mounting Type DIN rail or panel mount for installation in control cabinets or systems
Environmental Temperature Range -20°C to +70°C
Communication Ports Multiple ports for Ethernet, serial, or other communication interfaces
Relay Outputs Typically includes Form C relay outputs for alarms or status reporting
Input Voltage Range 20V to 270V AC/DC, depending on specific configuration
Operating Environment Designed for use in industrial environments where vibration, temperature fluctuations, and EMI are concerns
Safety Certifications Complies with industrial standards, including EMC, CE, and other relevant certifications
Diagnostics and Monitoring Built-in diagnostics for real-time monitoring of communication status, system health, and failure detection
System Integration Compatible with other Mark VIe control system components for integrated industrial automation and control

Key Features:

  1. Seamless Communication: The IS420UCSBS1A enables communication across multiple modules and devices in a distributed control system, ensuring seamless data flow and real-time control.

  2. Multiple I/O Support: Supports both digital and analog I/O, offering flexibility for a variety of industrial applications.

  3. Redundancy and Reliability: Built with reliability and redundancy in mind, ensuring high availability for critical processes.

  4. Scalability: The module allows for the easy integration of additional devices and systems, offering scalability for expanding industrial applications.

  5. Environmental Resilience: Designed to operate in harsh industrial environments with a wide operating temperature range, vibration resistance, and robust electromagnetic shielding.

  6. Advanced Diagnostics: Includes tools for diagnostics and health monitoring, providing real-time feedback on system performance to minimize downtime.

  7. Industrial Standards Compliance: The module adheres to industry standards for safety, electromagnetic compatibility (EMC), and reliability, ensuring it is suited for challenging applications.

Applications:

  • Power Generation: Used in the control and monitoring of electrical grids, turbines, and other critical power generation equipment.

  • Oil & Gas: Essential for controlling processes in upstream, midstream, and downstream operations, including drilling rigs, refineries, and pipelines.

  • Chemical and Petrochemical Plants: Helps in the automation and safety of chemical processes, ensuring safe and efficient operations.

  • Heavy Industry and Manufacturing: Used to integrate and control various industrial systems, providing real-time monitoring and process control.

Conclusion:

The GE IS420UCSBS1A is a highly reliable and scalable communication and control system module that plays a key role in GE Mark VIe industrial control applications. With its broad compatibility, advanced features, and robust design, it ensures efficient communication and control across various system components, making it an essential component for mission-critical applications in industries like power generation, oil and gas, and chemical processing. FUJI FRS800B
