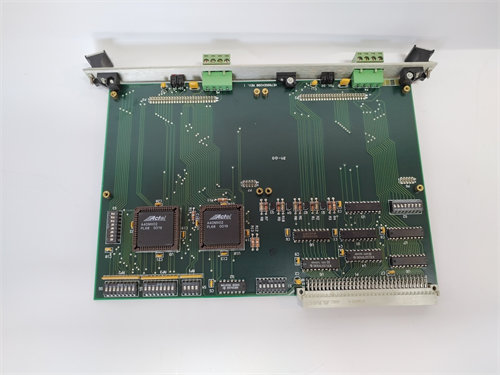

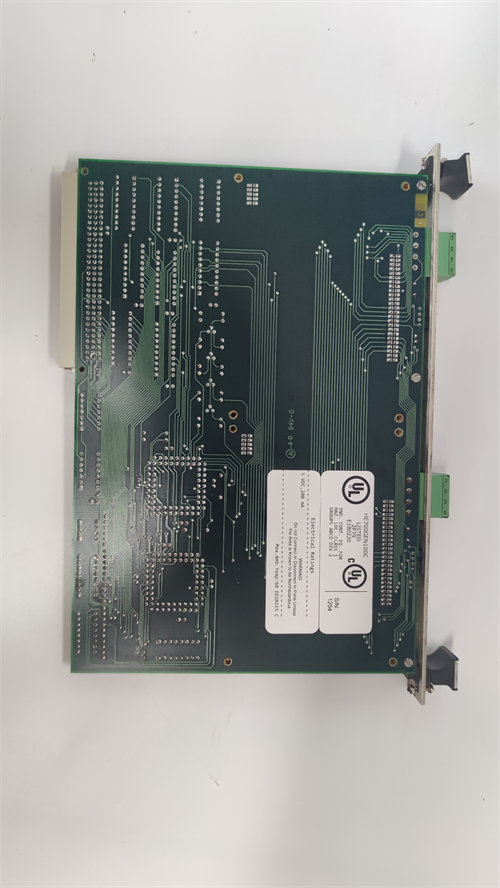

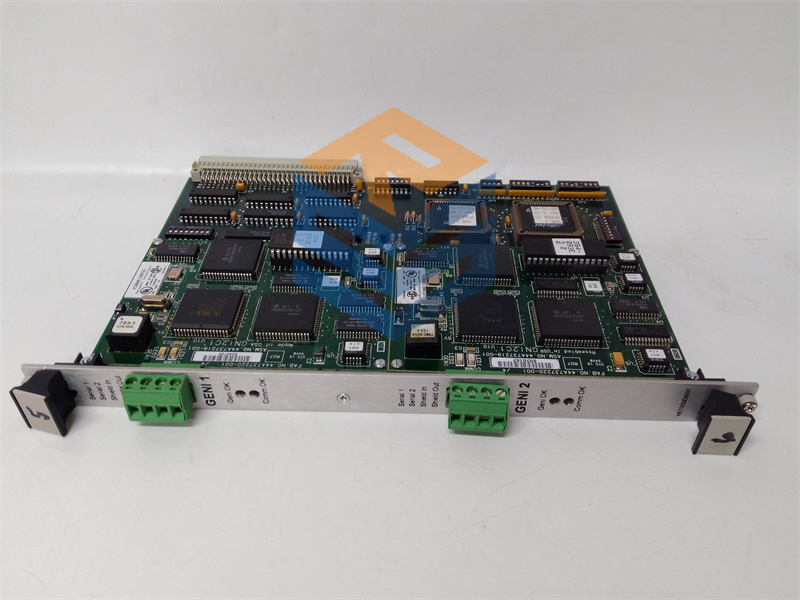

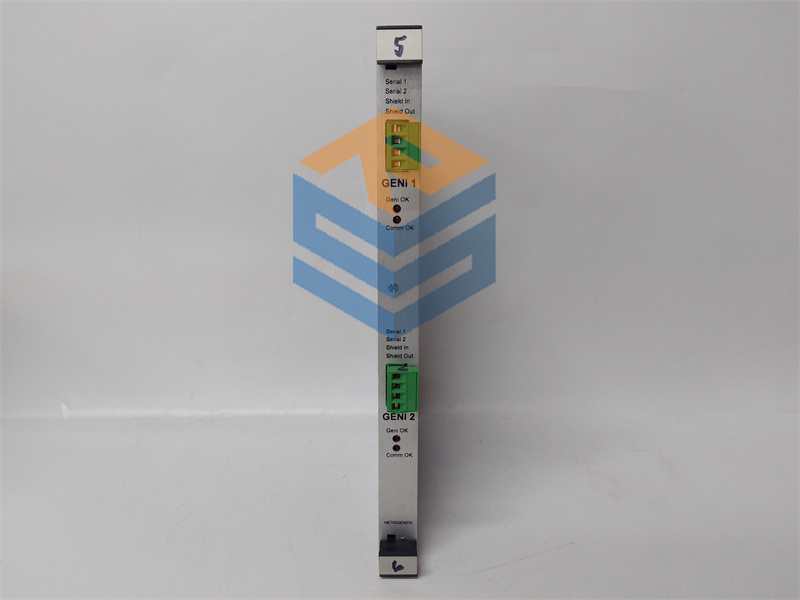

GE HE700GEN200 DCS PLC Module

Product Name:

GE HE700GEN200 – DCS (Distributed Control System) PLC Module

Product Description:

The GE HE700GEN200 is a high-performance Distributed Control System (DCS) PLC module designed for industrial automation and control applications. Developed by General Electric (GE), the HE700GEN200 is part of the HE700 series and provides a robust solution for controlling complex processes and systems in industries such as oil & gas, chemicals, power generation, and manufacturing. The module is engineered for high reliability, scalability, and flexibility, making it suitable for a wide range of industrial control applications.

This module features advanced processing power, seamless communication protocols, and a user-friendly interface for integration into existing DCS networks. It is specifically designed to support real-time monitoring and control, offering fast data acquisition, precise control capabilities, and extensive diagnostics for system health and performance.

Product Parameters:

• Model: HE700GEN200
• Manufacturer: General Electric (GE)
• Series: HE700 Series DCS
• Type: DCS PLC Module
• Form Factor: Rack-mounted (standard)
• Communication Protocols:
  • Ethernet
  • Modbus
  • Profibus
  • TCP/IP
• Power Supply Requirements:
  • 24V DC input
  • Power consumption: Approximately 20W
• Input/Output Support:
  • Digital I/O: 32 Inputs, 32 Outputs
  • Analog I/O: 8 Inputs, 8 Outputs
  • RTD, Thermocouple (optional support for temperature sensing)
• Processor Type:
  • Microprocessor-based
  • Multi-core architecture
  • Supports real-time processing and control
• Memory:
  • 1 GB RAM (Expandable based on system requirements)
  • Flash memory for system storage and configuration backup
• Environmental Ratings:
  • Operating Temperature: 0°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Humidity: 5% to 95% (non-condensing)
  • Vibration: Industrial-grade, designed for rugged environments
  • EMC: Meets industrial EMC standards for noise immunity and operational stability

Product Specifications:

• Control Capability:
  • Real-time control of distributed field devices such as sensors, actuators, and control valves
  • Supports both closed-loop and open-loop control applications
  • Can be configured to support a range of industrial automation strategies, including PID control, event-based control, and process sequencing
• Communication:
  • Supports high-speed Ethernet communication for inter-device data exchange and monitoring
  • Remote access via secure VPN for system diagnostics, software updates, and configuration changes
  • SCADA integration capabilities for centralized monitoring of large control networks
• Integration with Existing Systems:
  • Modular design for easy integration with third-party systems
  • Compatible with legacy GE control systems as well as newer control architectures
• Diagnostics and Monitoring:
  • Built-in diagnostics for system health monitoring, including I/O integrity checks, CPU health, and memory usage
  • Real-time data visualization with support for both local and remote operator interfaces
  • Alarm and event logging capabilities for troubleshooting and system maintenance
• Safety:
  • Compliant with industry safety standards (e.g., SIL-3 compliance for safety-critical applications)
  • Integrated safety functions for emergency shutdowns and fail-safe operations in hazardous environments
• User Interface:
  • Compatible with GE’s Proficy HMI/SCADA software for user-friendly graphical interface
  • Customizable dashboards for easy monitoring of system status and performance

Key Features and Advantages:

1. High Performance: With advanced processing and communication capabilities, the HE700GEN200 offers high-speed processing for real-time control and data management.
2. Scalability: The module is scalable, supporting small to large systems by adding additional I/O modules or connecting to other HE700 series components.
3. Reliability: Built for continuous operation in harsh industrial environments, with advanced diagnostics and failover protection to ensure minimal downtime.
4. Flexibility: Supports various industrial communication protocols, making it adaptable to different control systems and network configurations.
5. Comprehensive Diagnostics: Includes a wide range of diagnostics tools for preventive maintenance and quick troubleshooting, reducing maintenance costs and improving uptime.
6. Compatibility: The HE700GEN200 is compatible with a variety of other GE PLC and DCS modules, ensuring a smooth integration into existing infrastructures.

Applications:

• Process Control: Used in industries requiring precise control over processes such as petrochemical, pharmaceutical, and food processing.
• Energy Management: Ideal for controlling power generation and distribution systems, including renewable energy plants.
• Manufacturing Automation: For automating and optimizing manufacturing lines and production systems.
• Environmental Control Systems: For applications such as water treatment, waste management, and air quality control.

Competitive Comparison:

Compared to similar models from other industrial automation brands like Siemens and Schneider Electric, the GE HE700GEN200 stands out for its extensive support for industrial communication standards, easy integration with existing GE systems, and powerful diagnostic capabilities. Its high reliability and scalability also make it ideal for large-scale, complex control systems.

This module is a great option for businesses looking to implement or upgrade their industrial control systems, providing robust performance in both complex and demanding environments.
