Name: Honeywell CC-TAIN11 - RUNSHENG
Price: 8888.00 CNY
Availability: InStock

الوصف

As an industrial automation expert, the Honeywell CC-TAIN11 is immediately identifiable as a crucial component within a Distributed Control System (DCS), specifically Honeywell’s Experion PKS Series C I/O family. The “TAI” strongly suggests “Terminal Analog Input,” and the “N11” denotes its specific configuration and capabilities. It’s a high-performance Analog Input Module designed to bring critical real-world process measurements into the digital control system.

What makes the CC-TAIN11 particularly significant is its redundant capability (indicated by “Redundant Analog Input IOTA Module” in some descriptions), meaning it can be deployed in pairs to ensure continuous operation even if one module fails, which is paramount in critical industrial processes. It’s also part of the IOTA (Input Output Termination Assembly) concept, which separates the field wiring from the processing module, allowing for hot-swapping and simplified maintenance.

Part One: Optimized SEO Titles

Honeywell CC-TAIN11: Redundant Analog Input Module (Experion PKS)
CC-TAIN11 Honeywell: 16-Channel High-Level AI IOTA Module
Experion PKS CC-TAIN11: Process Control Analog Input
Honeywell CC-TAIN11: Reliable Redundant I/O for DCS
Buy CC-TAIN11: Genuine Honeywell Series C I/O Module
CC-TAIN11 for Sale: Enhanced Process Measurement Accuracy
Honeywell CC-TAIN11: Non-Incendive Analog Input for Hazardous Areas
CC-TAIN11 Module: Fast Loop Scan for Critical Process Data
Honeywell CC-TAIN11: Seamless Integration with Experion PKS
CC-TAIN11 Analog Input: Ensuring Process Uptime and Safety

Part Two: Brief Product Description

The Honeywell CC-TAIN11 is a 16-channel, redundant analog input IOTA (Input Output Termination Assembly) module designed for Honeywell’s Experion PKS Distributed Control System (DCS), specifically within the Series C I/O family. It accepts high-level current inputs (e.g., 4-20 mA) from field sensors, converting them into digital data for precise process measurement and control. Key features include optional redundancy for high availability, non-incendive field power for hazardous locations, extensive self-diagnostics, and a fast loop scan rate, making it ideal for critical industrial applications.

Product Type: Redundant Analog Input Module (IOTA)
Manufacturer: Honeywell
System Compatibility: Honeywell Experion PKS Series C I/O
Channels: 16
Input Type: High-level current (e.g., 4-20 mA), configurable for voltage
Key Features: Redundancy, non-incendive power, self-diagnostics, fast scan.

Part Three: Detailed Product Description

Imagine a refinery or a pharmaceutical plant where even a slight deviation in temperature, pressure, or flow can lead to significant safety hazards, product spoilage, or massive financial losses. In such environments, the accuracy and reliability of every measurement are paramount. This is precisely where the Honeywell CC-TAIN11 excels. It’s not just a simple input card; it’s a meticulously engineered component of a sophisticated Distributed Control System (DCS) that acts as the eyes and ears of the entire operation, providing critical process data with unparalleled reliability.

I recall a project in a large chemical processing facility where the existing analog input modules were prone to intermittent failures, causing nuisance alarms and, worse, unreliable control. This led to operators manually overriding control loops, increasing risk. When we upgraded to the Honeywell Experion PKS with CC-TAIN11 redundant modules, the difference was astounding. The self-diagnostics immediately flagged a subtle wiring issue that had been causing the intermittency, and the inherent redundancy provided peace of mind. The plant saw a significant reduction in unscheduled downtime related to instrumentation issues, directly translating into improved operational efficiency and safety. The ability to hot-swap modules without interrupting the process was also a major advantage during maintenance.

High-Reliability Analog Input for Experion PKS: The Honeywell CC-TAIN11 is a 16-channel, high-level analog input module designed specifically for the Honeywell Experion PKS DCS. Its core function is to acquire analog signals (such as 4-20 mA from transmitters or 0-10V from various sensors) from field devices and convert them into digital data that the Experion controllers can process.

16 Channels: Allows for monitoring of multiple process variables with a single module, optimizing cabinet space and wiring.
High-Level Input: Designed for standard industrial signal ranges, making it compatible with a vast array of common sensors and transmitters.
Fast Loop Scan: The module boasts a fast input scan rate (e.g., 50 ms), ensuring that process changes are captured and communicated to the control system with minimal latency, critical for dynamic control loops.

Redundancy for Uninterrupted Operation: One of the standout features of the CC-TAIN11 is its optional redundancy. This means two CC-TAIN11 modules can be configured to operate in parallel, with one active and the other in standby. If the active module experiences a fault, the standby module seamlessly takes over without interrupting the process. This “hot-swappable” capability ensures maximum uptime and eliminates single points of failure, which is crucial for safety-critical or economically vital processes. The module’s extensive self-diagnostics continuously monitor its health and the field wiring, providing early warnings of potential issues.

Non-Incendive Field Power and Hazardous Area Certification: The CC-TAIN11 provides non-incendive field power directly to the 4-20 mA current loops. This is a significant advantage as it eliminates the need for external marshalling barriers or intrinsically safe isolators in many hazardous area applications (e.g., Class I, Division 2, Groups A, B, C, and D). By limiting the energy in the field circuits, it prevents ignition in potentially explosive atmospheres, simplifying wiring, reducing installation costs, and enhancing overall safety compliance.

IOTA (Input Output Termination Assembly) Concept: The “IOTA” in the name refers to Honeywell’s architecture where the termination assembly (where field wires connect) is separate from the electronic module itself. This design offers several benefits:

Simplified Maintenance: The electronic module can be replaced (hot-swapped) without disconnecting any field wiring, dramatically reducing maintenance time and potential wiring errors.
Reduced Footprint: The compact design helps save space in control cabinets.
Enhanced Reliability: The IOTA design often includes built-in protection and conditioning for field signals.

Technical Specifications (Typical for Honeywell CC-TAIN11, always confirm with official Honeywell documentation):

Parameter	Value
Product Type	Redundant Analog Input IOTA Module
Manufacturer	Honeywell

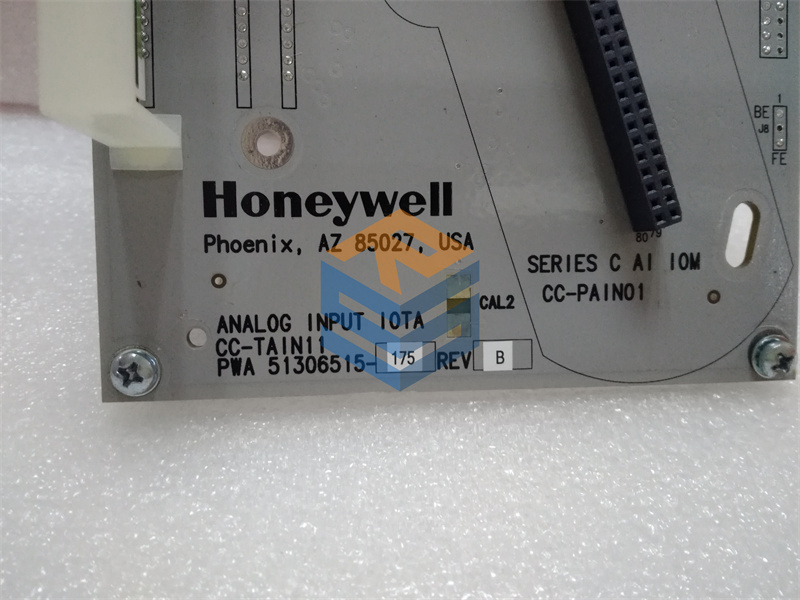

Model/Part Number	CC-TAIN11 / 51306515-175
System Compatibility	Honeywell Experion PKS Series C I/O
Channels	16
Input Signal Range	4-20 mA (high-level current), 0-5V, 1-5V, 0.4-2V (configurable for voltage inputs, potentially on specific channels or via jumper settings)
Input Impedance	> 10 MΩ (for voltage inputs), 250 Ω (for current inputs)
Resolution	High (e.g., 16-bit or equivalent)
Hardware Accuracy	Typically $\pm 0.075%$ of full-scale (at reference temp); $\pm 0.15%$ (over operating temp range)
Input Scan Rate	50 ms
Redundancy Support	Yes, optional hot-swappable redundancy
Field Power	Non-incendive field power supplied per channel
Hazardous Area Cert.	Class I, Div 2, Groups A, B, C, D (typically)
Self-Diagnostics	Extensive (hardware, power, sensors, cables)
Operating Temperature	0°C to 60°C (32°F to 140°F) or wider (-40°C to 70°C for extended temp versions)
Physical Dimensions	Approx. 12 inches (30.4 cm) in length, fits standard Series C I/O racks

Key Applications:

The Honeywell CC-TAIN11 is critical in large-scale process industries that rely on precise and reliable measurement and control:

Oil & Gas (Upstream, Midstream, Downstream): Monitoring and controlling pressures, temperatures, flows, and levels in wellheads, pipelines, refineries, and petrochemical plants.
Chemical Processing: Ensuring accurate measurement of reactants, product concentrations, and critical process parameters in chemical synthesis and blending.
Power Generation: Collecting data from sensors on boilers, turbines, and generators (e.g., fuel flow, steam pressure, water levels) for efficient and safe operation.
Pharmaceutical and Biotech: Maintaining precise environmental conditions and raw material parameters crucial for product quality and regulatory compliance.
Pulp and Paper: Monitoring consistency, temperature, and flow rates in various stages of pulp and paper production.
Mining and Metals: Controlling and monitoring processes like ore processing, crushing, and smelting.
