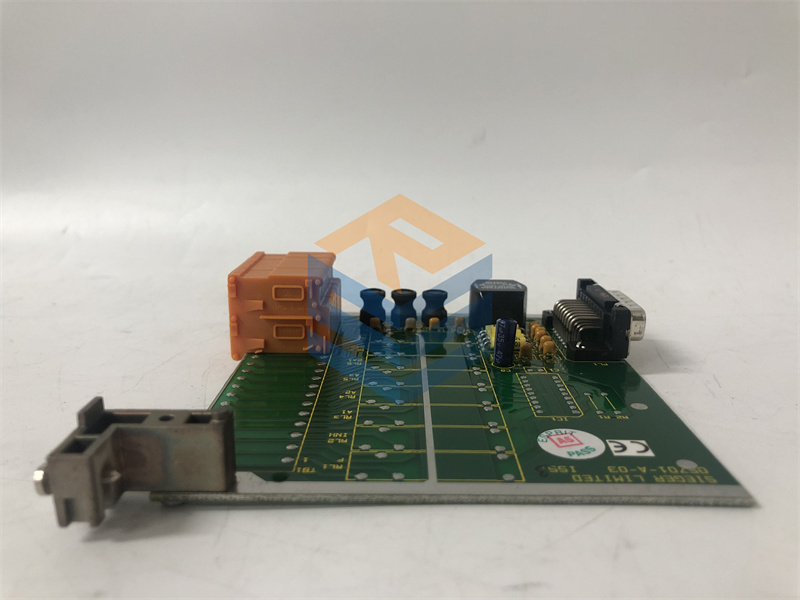

HONEYWELL+05701-A-0326

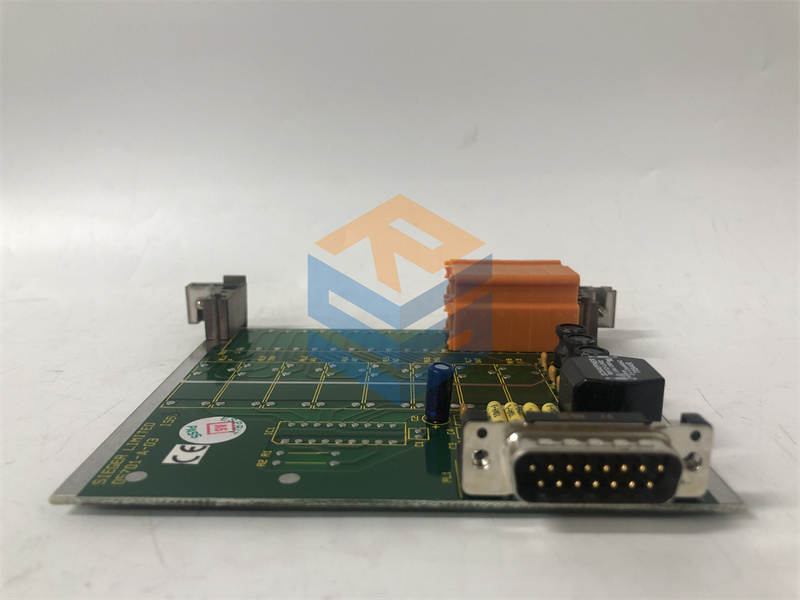

⁦HONEYWELL+05701-A-0326⁩ - الصورة ⁦2⁩

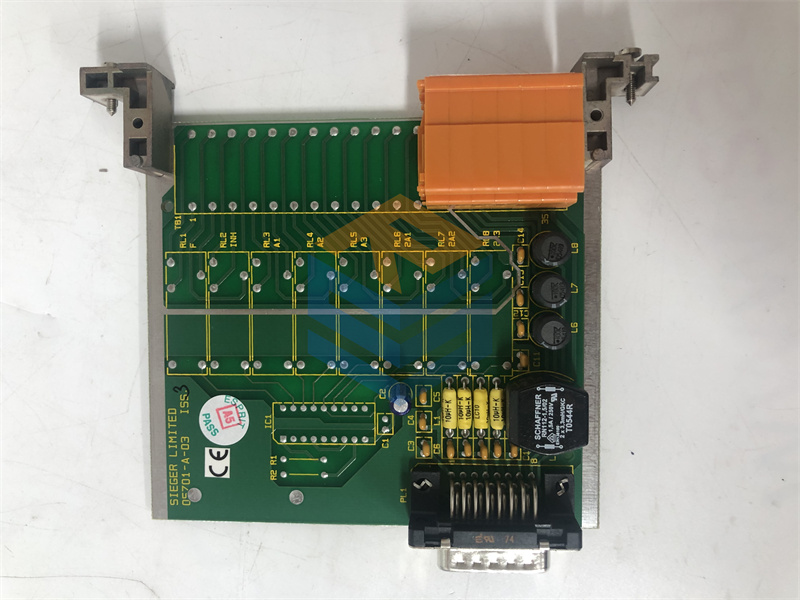

⁦HONEYWELL+05701-A-0326⁩ - الصورة ⁦3⁩

HONEYWELL+05701-A-0326

  • Model: Honeywell 05701-A-0326
  • Type: DCS (Distributed Control System) Module
  • Manufacturer: Honeywell
  • System Compatibility: Compatible with Honeywell Experion PKS and HC900 series controllers
  • Power Supply:
    • Nominal Voltage: 24V DC
    • Current Consumption: Approx. 0.3 – 1.0A depending on configuration
  • Dimensions:
    • Height: 18.4 cm
    • Width: 4.3 cm
    • Depth: 25.5 cm
  • Weight: Approx. 1.3 kg
  • Operating Temperature:
    • Standard Range: -40°C to 70°C
    • Storage Temperature: -40°C to 85°C
  • Environmental Conditions:
    • Humidity: 5% to 95% (non-condensing)
    • Vibration Resistance: Meets industrial vibration standards for high-performance reliability in field applications.
احصل على عرض أسعار
التصنيف:

الوصف

Honeywell 05701-A-0326 DCS PLC Module

Product Name:

Honeywell 05701-A-0326 DCS PLC Module

Product Description:

The Honeywell 05701-A-0326 is a Digital Control System (DCS) module designed for Honeywell’s Experion® Process Knowledge System (PKS). It is used in advanced industrial automation applications, such as process control, monitoring, and data acquisition in industries including oil and gas, chemical processing, pharmaceuticals, and power generation. This module is part of Honeywell’s highly flexible and reliable DCS platforms, which offer extensive diagnostic and communication capabilities, ensuring high performance in real-time process management.

The 05701-A-0326 module integrates with Honeywell’s Experion PKS to deliver robust control strategies, optimized process control, and improved operator efficiency. Its design ensures reliable operation in a variety of demanding process environments, allowing for high-level automation with enhanced flexibility.

Product Parameters:

  • Model: Honeywell 05701-A-0326
  • Type: DCS (Distributed Control System) Module
  • Manufacturer: Honeywell
  • System Compatibility: Compatible with Honeywell Experion PKS and HC900 series controllers
  • Power Supply:
    • Nominal Voltage: 24V DC
    • Current Consumption: Approx. 0.3 – 1.0A depending on configuration
  • Dimensions:
    • Height: 18.4 cm
    • Width: 4.3 cm
    • Depth: 25.5 cm
  • Weight: Approx. 1.3 kg
  • Operating Temperature:
    • Standard Range: -40°C to 70°C
    • Storage Temperature: -40°C to 85°C
  • Environmental Conditions:
    • Humidity: 5% to 95% (non-condensing)
    • Vibration Resistance: Meets industrial vibration standards for high-performance reliability in field applications.

Specifications:

  • Input/Output (I/O):

    • Digital Inputs (DI): Can accommodate 12/24 digital input channels (depending on configuration).
    • Digital Outputs (DO): Includes 12/24 digital output channels.
    • Analog Inputs (AI): Typically 4 to 8 analog input channels for real-time process monitoring (e.g., temperature, pressure, flow).
    • Analog Outputs (AO): Configurable 4 to 8 analog output channels for actuator control.

  • Communication Interfaces:

    • Ethernet: Supports high-speed data communication for remote access and control integration with other Honeywell DCS or SCADA systems.
    • Fieldbus Protocols: Supports HART, Modbus, Profibus, and other industrial communication standards for seamless integration into industrial field devices.
    • Redundant Communication: Offers redundant communication channels to ensure continuous, fail-safe operation.

  • Processor and Control:

    • Real-Time Processing: Capable of high-speed, real-time control processing to ensure fast response times for dynamic industrial environments.
    • Control Algorithms: Supports advanced control algorithms like PID, cascade control, and feedforward.
    • Redundant Configuration: Allows for redundant system configurations to enhance reliability and fault tolerance in critical systems.

  • Diagnostics and Monitoring:

    • Self-Diagnostics: Includes built-in diagnostic tools for system health monitoring and fault detection, ensuring smooth and efficient operation.
    • Event Logging: Captures system events and alarms for troubleshooting and performance analysis.
    • System Health Monitoring: Continuous monitoring of both hardware and software, allowing for predictive maintenance.

  • Safety Features:

    • Safety Integration: Supports integration with Honeywell’s SIL 2/SIL 3 safety systems for safety-critical applications, ensuring reliable safety control in hazardous environments.
    • Fail-Safe Operation: Built-in fail-safe mechanisms and redundancy ensure the continuity of operations even in case of module failure.

  • Power Supply and Efficiency:

    • Low power consumption for efficient operation in large-scale process control systems.
    • Designed for minimal heat generation and environmental footprint, which helps in ensuring a long operational life.

Key Features and Advantages:

  1. Integrated Control and Automation:
    The 05701-A-0326 module integrates seamlessly into Honeywell’s Experion PKS, enabling efficient and optimized control over complex industrial processes.

  2. Real-Time Data Acquisition and Processing:
    It provides high-speed data acquisition and real-time processing capabilities, ensuring fast responses to process changes and improved operational efficiency.

  3. Advanced Diagnostics and Predictive Maintenance:
    Built-in diagnostics and system health monitoring tools help in minimizing downtime and improving overall system reliability.

  4. Flexible Communication:
    Supports a wide array of communication protocols (Ethernet, Profibus, HART, Modbus) for easy integration with other devices and control systems.

  5. Redundancy and Fault Tolerance:
    The module can be configured for redundant systems, ensuring continued operation in case of component failure—critical for high-availability applications.

  6. Scalability:
    The modular design allows for easy system expansion, making it suitable for both small and large industrial operations.

  7. Safety-Critical Control:
    With support for SIL 2 and SIL 3, it meets the requirements for safety-critical environments, such as oil and gas refineries or chemical plants.

  8. Flexible I/O Configuration:
    The module supports multiple input and output configurations (digital and analog), ensuring adaptability to diverse control and monitoring tasks.

Applications:

The Honeywell 05701-A-0326 DCS PLC module is ideal for industries requiring complex process control and data integration. It is used in:

  • Oil & Gas: For real-time control and monitoring of refinery operations, pipeline management, and offshore platforms.
  • Chemical Processing: In continuous chemical production and batch processing, ensuring optimal control of temperature, pressure, and flow.
  • Pharmaceuticals: For precise control over pharmaceutical production processes and regulatory compliance.
  • Power Generation: Used in plant control systems, ensuring continuous, efficient operation in power plants.
  • Water Treatment: Monitoring and control of water treatment facilities for both municipal and industrial applications.

Conclusion:

The Honeywell 05701-A-0326 DCS PLC module provides advanced control, monitoring, and communication capabilities for industrial automation systems. With high-performance data processing, real-time control, and integration with Honeywell’s Experion PKS, this module is ideal for use in industries like oil & gas, chemicals, and power generation. The flexibility, redundancy, and safety-critical integration ensure that it meets the demanding needs of modern industrial processes, offering reliable, scalable, and safe control for a wide range of applications.
