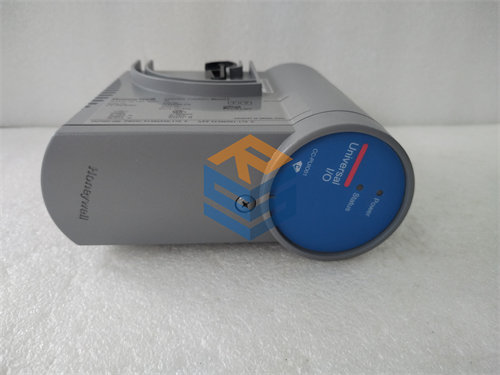

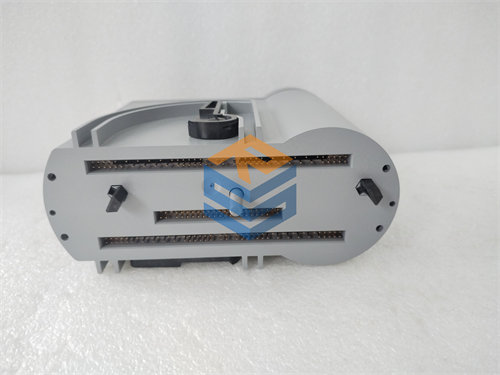

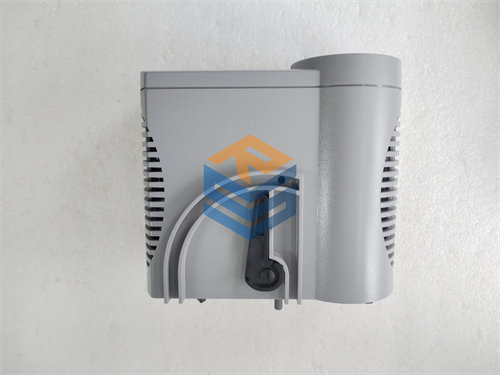

HONEYWELL+CC-PLAIH51

General Specifications:

  • Module Type: Field I/O Interface Module (for Honeywell Experion PKS)
  • Part Number: CC-PLAIH51
  • System Type: Part of Honeywell Experion PKS (Process Knowledge System)
  • Function: Provides the interface between field devices (analog and digital) and the DCS system, enabling data acquisition, signal conditioning, and control processing.
  • Input/Output (I/O):
    • Supports both analog and digital I/O signals.
    • Analog Input (AI) and Analog Output (AO)
    • Discrete Input (DI) and Discrete Output (DO) support
    • HART and FOUNDATION Fieldbus support for digital field devices.
احصل على عرض أسعار
التصنيف:

الوصف

The Honeywell CC-PLAIH51 module is part of Honeywell’s Experion® Process Knowledge System (PKS), a distributed control system (DCS) designed for complex industrial processes. The CC-PLAIH51 is an I/O interface module used in Honeywell’s Control Systems, designed to provide reliable data collection and processing for a variety of automation and control tasks.

Below are the product name, description, parameters, and specifications for the Honeywell CC-PLAIH51 DCS PLC Module.

Product Name:

Honeywell CC-PLAIH51 DCS PLC Module

Product Description:

The Honeywell CC-PLAIH51 is a Field I/O Interface Module used within Honeywell’s Experion PKS system, providing communication between the field devices (sensors, actuators, and other equipment) and the DCS control system. It serves as an important communication bridge that facilitates the integration of various field I/O signals into the control system for accurate process monitoring and control.

This module is typically used in high-reliability process control systems and is compatible with a wide range of Honeywell’s DCS solutions, ensuring seamless communication between devices. Its robust architecture ensures reliability, scalability, and ease of integration into complex automation systems used in industries such as oil & gas, chemical processing, power generation, and pharmaceuticals.

The CC-PLAIH51 supports advanced diagnostics, redundancy features, and various communication protocols, making it suitable for safety-critical and mission-critical applications that require real-time, accurate data processing and control.

Product Parameters & Specifications:

General Specifications:

  • Module Type: Field I/O Interface Module (for Honeywell Experion PKS)
  • Part Number: CC-PLAIH51
  • System Type: Part of Honeywell Experion PKS (Process Knowledge System)
  • Function: Provides the interface between field devices (analog and digital) and the DCS system, enabling data acquisition, signal conditioning, and control processing.
  • Input/Output (I/O):
    • Supports both analog and digital I/O signals.
    • Analog Input (AI) and Analog Output (AO)
    • Discrete Input (DI) and Discrete Output (DO) support
    • HART and FOUNDATION Fieldbus support for digital field devices.

Key Features:

  • Redundancy: The CC-PLAIH51 module supports redundant configurations to ensure continuous operation in critical applications. It is typically deployed in a hot-standby redundancy configuration to enhance system availability.
  • Processing Power: The module provides real-time processing of signals, ensuring fast response times for automation and control functions.
  • Communication Protocols:
    • Modbus RTU/TCP
    • Ethernet/IP
    • HART
    • FOUNDATION Fieldbus
    • Profibus and DeviceNet (depending on configuration)
  • Field Device Integration: Supports a wide range of field I/O devices, including intelligent field instruments (e.g., smart transmitters, actuators, etc.), allowing for advanced diagnostics and device configuration.

Environmental Parameters:

  • Operating Voltage: Typically operates with a 24V DC input.
  • Temperature Range:
    • Operating temperature range: -20°C to 60°C (-4°F to 140°F).
    • Storage temperature: -40°C to 85°C (-40°F to 185°F).
  • Humidity: Operates in environments with relative humidity levels of 5% to 95%, non-condensing.
  • Protection Class: Designed for industrial environments, with IP20 protection for dust ingress.

Diagnostics and Fault Detection:

  • Advanced Diagnostics: The module comes with built-in diagnostics and fault detection capabilities, allowing users to monitor device health, signal integrity, and operational status in real-time.
  • Self-Test: Includes self-checking routines to detect and report failures in the module, improving system reliability.
  • Device Diagnostics: Supports diagnostics of connected field devices, including HART-enabled devices, to track performance and detect faults early.

Redundancy and Availability:

  • Hot-Standby Redundancy: Supports redundant power supplies, redundant communications, and hot-standby configurations to ensure high system availability and prevent downtime.
  • Power Supply Redundancy: Allows for dual power supplies to ensure continuous operation even if one power source fails.
  • Network Redundancy: Includes options for redundant communication paths for critical data transmission.

Field Device Compatibility:

  • Fieldbus Protocols Supported: The module supports FOUNDATION Fieldbus, HART, and Modbus protocols, allowing it to integrate seamlessly with a variety of intelligent field instruments.
  • Smart Device Support: Fully compatible with smart transmitters, smart valves, variable frequency drives (VFDs), and other intelligent field devices that use digital communication protocols for enhanced diagnostics and control.

User Interface and Configuration:

  • Engineering and Configuration Tools: Configuration and management are handled using Honeywell’s Experion PKS Engineering Workstation, which provides a user-friendly interface for module configuration, monitoring, and diagnostics.
  • Software Compatibility: Works seamlessly with Experion PKS and integrates with other Honeywell control systems, ensuring flexibility and scalability.

Summary:

The Honeywell CC-PLAIH51 DCS PLC Module is an integral part of the Honeywell Experion PKS control system. It serves as the interface for field I/O devices, enabling real-time process monitoring and control in critical industrial systems. With redundancy, advanced diagnostics, and support for modern communication protocols like FOUNDATION Fieldbus and HART, this module is designed to provide high availability and reliability for industries such as oil and gas, chemical processing, and power generation.

Its hot-standby redundancy, support for intelligent devices, and real-time fault detection capabilities make it an excellent choice for ensuring smooth, continuous operations in safety-critical applications.
