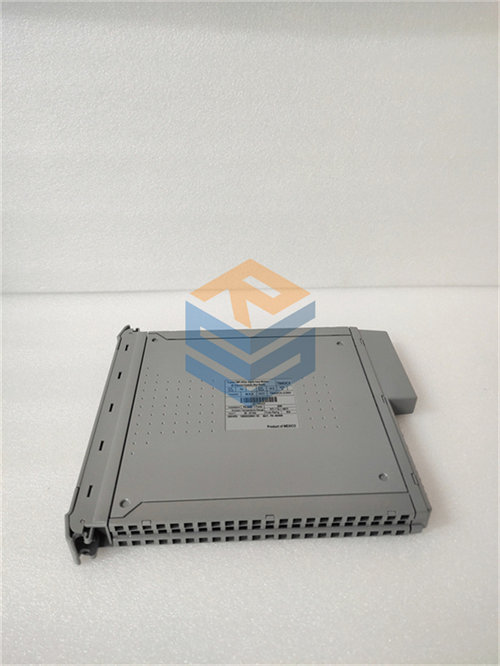

ICS TRIPLEX T8403

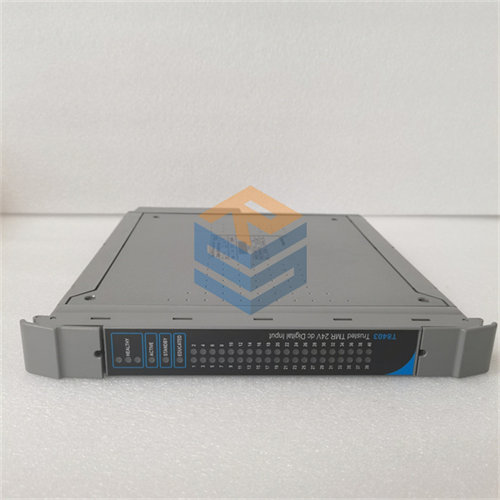

⁦ICS TRIPLEX T8403⁩ - الصورة ⁦2⁩

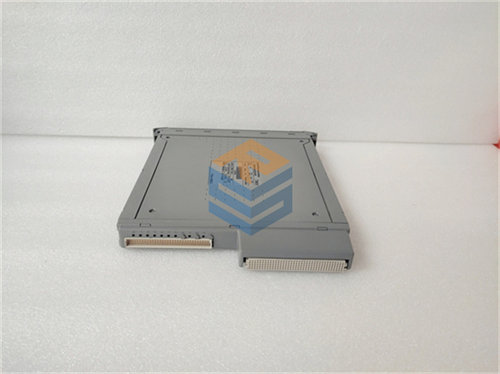

⁦ICS TRIPLEX T8403⁩ - الصورة ⁦3⁩
⁦ICS TRIPLEX T8403⁩ - الصورة ⁦4⁩

ICS TRIPLEX T8403

The ICS TRIPLEX T8403 goes beyond basic input acquisition with a suite of advanced features designed to maximize system integrity and simplify maintenance:

  • Selectable Line Monitoring: A critical feature for safety applications. Per-channel line monitoring can be configured to detect common field wiring faults such as open circuits (broken wires) and short circuits. This typically involves using End-Of-Line (EOL) resistor networks at the field device. This proactive fault detection helps prevent dangerous undetected failures.
  • Comprehensive Self-Diagnostics: The module continuously performs extensive self-diagnostics, monitoring the health of its internal components and input circuitry. Any detected anomaly triggers a diagnostic alarm.
  • Opto/Galvanic Isolation Barrier: Provides a robust 2500 V impulse withstand isolation barrier between the field wiring and the module’s internal logic. This protects the module from electrical noise, transients, and ground loops originating in the field.
  • Onboard Sequence of Events (SOE) Reporting: Provides high-resolution (1 ms) time-stamped reporting of all input state changes. This is invaluable for post-incident analysis, troubleshooting, and regulatory compliance.
  • Hot Replacement Capability: The module is designed for hot replacement (hot-swapping) online, using dedicated Companion Slot or SmartSlot configurations. This allows for module replacement without interrupting the safety system’s operation, minimizing downtime.
  • Front Panel LEDs: Comprehensive front panel LEDs provide clear visual indication of individual input channel status, field wiring faults, and overall module health (Active, Standby, Educated modes).
  • Configurable Digital Filtering: Can be configured for 50/60 Hz digital filtering to mitigate field-induced noise and ensure accurate signal interpretation.
  • TÜV Certified IEC 61508 SIL 3: This certification confirms its suitability for the highest level of safety integrity required in process industries.

Technical Specifications (Typical):

Parameter Value
Product Type Digital Input (DI) Module
Channels 40 TMR (Triple Modular Redundant) Input Channels
Nominal Input Voltage 24 VDC
Input Voltage Range 18 VDC to 32 VDC
Input Current Typically 2 mA (per channel)
Fault Tolerance TMR per channel
Line Monitoring Selectable per channel (Open/Short Circuit Detection with EOL resistors)
Isolation 2500 V impulse withstand opto/galvanic isolation
SOE Resolution 1 ms
Time-Stamp Accuracy ±0.5 ms (typical)
Safety Certification TÜV Certified IEC 61508 SIL 3
Hot-Swap Capability Yes
Operating Temperature -5°C to +60°C (23°F to 140°F) (some sources indicate -40°C to +70°C for certain versions)
Power Consumption 15-29 W (typical, depends on load)
Dimensions Approx. 266 mm x 31 mm x 303 mm (10.5 in x 1.2 in x 12.0 in)
Weight Approx. 1.18 kg (2.6 lbs)
Compatibility ICS Triplex Trusted T8000 Series systems
احصل على عرض أسعار
التصنيف:

الوصف

The ICS TRIPLEX T8403 is a Trusted Triple Modular Redundant (TMR) 24 VDC Digital Input Module. It is a key component of the ICS Triplex Trusted safety system, which is now part of Rockwell Automation (Allen-Bradley).

This module is designed for critical safety applications where extreme reliability, fault tolerance, and high integrity of digital (on/off) input signals are paramount. Its TMR architecture ensures continuous and accurate operation even in the event of internal component failures, making it suitable for the highest Safety Integrity Levels (SIL 3).

Top 10 SEO-Optimized Headings:

  1. ICS TRIPLEX T8403: Trusted TMR 24 VDC Digital Input Module for SIL 3.
  2. Unmatched Reliability: The ICS TRIPLEX T8403 for Critical Safety Applications.
  3. ICS TRIPLEX T8403: Fault-Tolerant Digital Inputs for Process Safety.
  4. High-Density Sensing: Leveraging the ICS TRIPLEX T8403 in ESD/F&G Systems.
  5. Why Choose ICS TRIPLEX T8403: Maximizing Uptime in Hazardous Environments.
  6. ICS TRIPLEX T8403: The Core of Emergency Shutdown & Fire & Gas Input.
  7. 40 Channels, Line Monitoring: Key Features of the ICS TRIPLEX T8403 Module.
  8. ICS TRIPLEX T8403: Essential for Oil & Gas, Power, and Chemical Plant Safety.
  9. Optimize Your Safety System: The Versatility of the ICS TRIPLEX T8403.
  10. Industrial Control: Ensuring Integrity with the ICS TRIPLEX T8403 Digital Input.

Brief Product Description (for Detail Pages and Search Results):

The ICS TRIPLEX T8403 is a 40-channel, Triple Modular Redundant (TMR) 24 VDC Digital Input module for the ICS Triplex Trusted safety system. It delivers exceptionally reliable and fault-tolerant acquisition of discrete signals from field devices, crucial for Safety Instrumented Systems (SIS) up to Safety Integrity Level 3 (SIL 3). Key features include per-channel line monitoring (for open/short circuit detection), comprehensive diagnostics, and onboard Sequence of Events (SOE) reporting with 1 ms resolution, ensuring maximum system availability and precise event tracking in critical industrial applications.

  • Product Type: Digital Input (DI) Module
  • Model Number: T8403
  • Channels: 40 Triple Modular Redundant (TMR) input channels
  • Voltage: 24 VDC nominal (Input voltage range 18-32 VDC)
  • Key Feature: Triple Modular Redundancy (TMR) for each channel, Selectable Line Monitoring, Opto/Galvanic Isolation, Onboard SOE.
  • Safety Integrity Level (SIL): TÜV Certified IEC 61508 SIL 3.
  • Compatibility: ICS Triplex Trusted T8000 Series controllers/systems.
  • Applications: Emergency Shutdown Systems (ESD), Fire & Gas (F&G) Systems, Burner Management Systems (BMS), critical process interlocks in demanding industries.

Detailed Product Description:

In the world of industrial safety, where catastrophic failures can have devastating consequences, the integrity and reliability of every component are paramount. The ICS TRIPLEX T8403 Digital Input Module stands as a cornerstone of this philosophy within the ICS Triplex Trusted safety system. It’s not just a module that senses on/off signals; it’s a meticulously engineered, fault-tolerant device designed to acquire critical discrete data from the field with an unparalleled level of certainty, ensuring that safety actions are always based on accurate information.

From my experience in designing and implementing safety solutions, the challenge often lies in guaranteeing the reliability of field-level data acquisition, especially with potential wiring faults. The ICS TRIPLEX T8403 directly addresses this. Its unique TMR architecture, combined with sophisticated line monitoring on each of its 40 channels, provides a robust defense against common failure modes. This means that if a wire breaks, or a sensor misbehaves, the system immediately knows and can take appropriate action, preventing false trips or, more critically, failures to trip when a real hazard exists. This capability is absolutely vital for achieving and maintaining SIL 3 compliance.

The Foundation of Fault Tolerance: Triple Modular Redundancy (TMR)

The exceptional reliability of the ICS TRIPLEX T8403 is rooted in its Triple Modular Redundancy (TMR) architecture, which is applied at the channel level:

  • Triplicated Inputs for Each Channel: For each of its 40 digital input channels, the T8403 has three independent, isolated input circuits. Each circuit independently measures the field input voltage.
  • Hardware-Implemented Voting: The readings from these three redundant circuits are continuously compared by internal hardware voting logic. This voting process identifies and effectively masks any single fault that might occur in one of the input paths or its associated components.
  • Guaranteed Fault Tolerance: This design ensures that the module continues to provide accurate and reliable input data even if one of the three internal input channels fails. The safety function remains uncompromised, allowing for online repair or replacement.

Advanced Diagnostics and Integrity Features:

The ICS TRIPLEX T8403 goes beyond basic input acquisition with a suite of advanced features designed to maximize system integrity and simplify maintenance:

  • Selectable Line Monitoring: A critical feature for safety applications. Per-channel line monitoring can be configured to detect common field wiring faults such as open circuits (broken wires) and short circuits. This typically involves using End-Of-Line (EOL) resistor networks at the field device. This proactive fault detection helps prevent dangerous undetected failures.
  • Comprehensive Self-Diagnostics: The module continuously performs extensive self-diagnostics, monitoring the health of its internal components and input circuitry. Any detected anomaly triggers a diagnostic alarm.
  • Opto/Galvanic Isolation Barrier: Provides a robust 2500 V impulse withstand isolation barrier between the field wiring and the module’s internal logic. This protects the module from electrical noise, transients, and ground loops originating in the field.
  • Onboard Sequence of Events (SOE) Reporting: Provides high-resolution (1 ms) time-stamped reporting of all input state changes. This is invaluable for post-incident analysis, troubleshooting, and regulatory compliance.
  • Hot Replacement Capability: The module is designed for hot replacement (hot-swapping) online, using dedicated Companion Slot or SmartSlot configurations. This allows for module replacement without interrupting the safety system’s operation, minimizing downtime.
  • Front Panel LEDs: Comprehensive front panel LEDs provide clear visual indication of individual input channel status, field wiring faults, and overall module health (Active, Standby, Educated modes).
  • Configurable Digital Filtering: Can be configured for 50/60 Hz digital filtering to mitigate field-induced noise and ensure accurate signal interpretation.
  • TÜV Certified IEC 61508 SIL 3: This certification confirms its suitability for the highest level of safety integrity required in process industries.

Technical Specifications (Typical):

Parameter Value
Product Type Digital Input (DI) Module
Channels 40 TMR (Triple Modular Redundant) Input Channels
Nominal Input Voltage 24 VDC
Input Voltage Range 18 VDC to 32 VDC
Input Current Typically 2 mA (per channel)
Fault Tolerance TMR per channel
Line Monitoring Selectable per channel (Open/Short Circuit Detection with EOL resistors)
Isolation 2500 V impulse withstand opto/galvanic isolation
SOE Resolution 1 ms
Time-Stamp Accuracy ±0.5 ms (typical)
Safety Certification TÜV Certified IEC 61508 SIL 3
Hot-Swap Capability Yes
Operating Temperature -5°C to +60°C (23°F to 140°F) (some sources indicate -40°C to +70°C for certain versions)
Power Consumption 15-29 W (typical, depends on load)
Dimensions Approx. 266 mm x 31 mm x 303 mm (10.5 in x 1.2 in x 12.0 in)
Weight Approx. 1.18 kg (2.6 lbs)
Compatibility ICS Triplex Trusted T8000 Series systems

Applications:

The ICS TRIPLEX T8403 is specifically designed for the most demanding and safety-critical applications across heavy industries:

  • Oil & Gas (Refineries, Offshore Platforms, Pipelines, LNG):
    • Emergency Shutdown Systems (ESD): Receiving highly reliable status from limit switches (e.g., valve position, level switches), pressure switches, and emergency stop pushbuttons to initiate safe shutdown sequences.
    • Fire & Gas (F&G) Detection Systems: Acquiring signals from flame detectors, smoke detectors, and hazardous gas detectors.
  • Petrochemical and Chemical Plants:
    • Monitoring critical safety interlocks for reactors, furnaces, and distillation columns.
    • Input signals for safety instrumented functions (SIF) protecting against overpressure, overtemperature, or hazardous releases.
  • Power Generation (Fossil Fuel, Nuclear, Hydro):
    • Burner Management Systems (BMS): Monitoring flame detectors, fuel valve positions, and critical interlocks for safe boiler operation.
    • Turbine protection system inputs and generator status monitoring.
  • Mining:
    • Safety interlocks for conveyors, ventilation systems, and emergency stops in challenging environments.
  • Pharmaceutical Manufacturing:
    • Ensuring precise monitoring of critical parameters and safety interlocks for equipment and processes handling hazardous materials.

Related Products and Systems:

The ICS TRIPLEX T8403 operates as a vital component within the broader ICS Triplex Trusted system and interacts with other elements:

  • ICS Triplex Trusted Processors (e.g., T8110B, T8110C, T8310C): These are the main processors that execute the safety logic based on the input data provided by the T8403.
  • ICS Triplex Trusted Digital Output Modules (e.g., T8431, T8461, T8451): Modules that receive commands from the processors to actuate discrete field devices.
  • ICS Triplex Trusted Analog Input/Output Modules (e.g., T8480, T8431, T8442): Other I/O modules handling continuous signals within the same system.
  • ICS Triplex Trusted Chassis/Racks: The physical enclosures that house the T8403 and other Trusted modules.
  • ICS Triplex Trusted Field Termination Assemblies (FTAs) / Termination Units: External panels that connect the field wiring to the T8403 module. These typically include the necessary terminals and may incorporate features like EOL resistor networks for line monitoring.
  • Trusted Application Software (TAS): The engineering software used to configure, program, and diagnose the ICS Triplex Trusted system, including the T8403 module.
  • Rockwell Automation (Allen-Bradley) Platforms: As ICS Triplex is now part of Rockwell, there’s integration and compatibility with their broader industrial automation portfolio.
  • Field Devices (Sensors): The actual limit switches, pressure switches, flame detectors, gas detectors, pushbuttons, etc., that provide the input signals to the T8403.
