ICS TRIPLEX+T8431C

الوصف

Product Name:

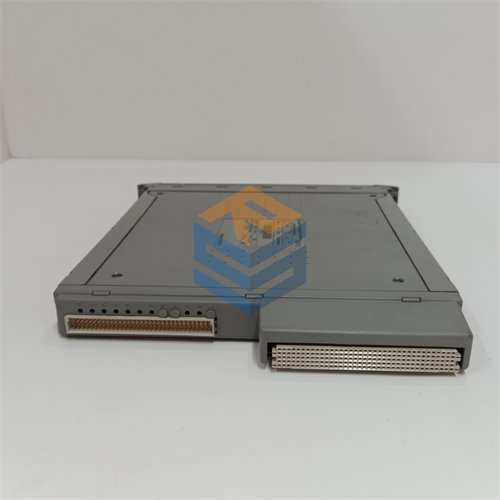

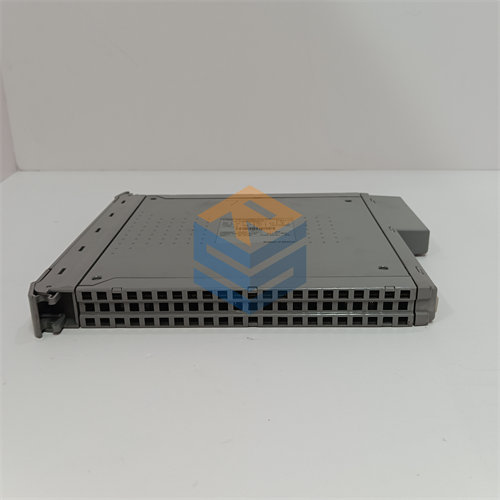

ICS TRIPLEX T8431C DCS PLC Module

Product Description:

The ICS TRIPLEX T8431C is a Distributed Control System (DCS) PLC module developed by ICS Triplex, part of Emerson. It is a critical component of the Triplex® Safety System, a highly reliable and fault-tolerant system used in safety instrumented systems (SIS) for critical control and protection applications. The T8431C module is designed for high-integrity, safety-critical industries such as oil and gas, chemical processing, nuclear power, and petrochemical sectors.

This module provides advanced redundancy and fail-safe features, ensuring system integrity and safety under demanding conditions. The T8431C is part of the Triplex™ architecture, which employs Triple Modular Redundancy (TMR), providing the highest level of fault tolerance and ensuring system operation even if one component fails. The T8431C is specifically designed for SIL3 (Safety Integrity Level 3) rated safety applications, making it ideal for applications that require absolute safety and high availability.

Its features include real-time data acquisition, input/output (I/O) interfacing, advanced diagnostics, and fault detection, allowing for continuous monitoring and control of the process. This module offers superior performance, ensuring compliance with safety standards and minimizing downtime.

Product Parameters:

• Model: ICS TRIPLEX T8431C
• Manufacturer: Emerson (ICS Triplex)
• Type: DCS PLC I/O Module
• Application: Safety and process control in oil and gas, chemical, petrochemical, power generation, and nuclear industries, focused on high-reliability and SIL3 safety applications.
• System Compatibility: Compatible with Triplex® TMR (Triple Modular Redundancy) systems, as well as Emerson DeltaV and other Triplex safety systems.
• I/O Type: Supports digital and analog I/O for interfacing with field devices.
• Field Devices Supported: Compatible with a wide range of field devices, including sensors, actuators, valves, and shutdown systems.
• Primary Function: Real-time data acquisition, control, and monitoring for high-integrity safety systems.

Product Specifications:

General Features:

• Triple Modular Redundancy (TMR):
  The T8431C operates on a Triple Modular Redundancy (TMR) architecture, which means that it utilizes three independent channels to ensure that if one module fails, the system can continue functioning without interruption. This architecture enhances system fault tolerance and availability, making it suitable for SIL3 and high-integrity safety systems.

• SIL3 Safety Integrity Level:
  The T8431C module is specifically designed to meet the stringent requirements for SIL3 safety applications. It offers a fail-safe design that ensures process safety even in the event of component failures, preventing hazardous conditions and minimizing risk to both personnel and equipment.

• Fault Detection and Diagnostics:
  Advanced self-diagnostics are built into the module, allowing it to monitor its own performance and the health of connected field devices. In case of any faults, the module provides early warnings and fault isolation, which helps operators prevent or mitigate failures before they affect the system.

• Real-time Process Monitoring:
  The T8431C enables real-time monitoring and control of processes, offering precise data acquisition and system feedback to ensure that control and safety functions are continuously maintained in critical environments.

• Flexible I/O Configuration:
  The module supports a variety of analog and digital I/O configurations, enabling it to interface with numerous process sensors and devices. This flexibility is essential for diverse industrial environments where I/O needs may vary.

• Redundant Power Supplies:
  The T8431C supports redundant power supplies, further enhancing system reliability and ensuring uninterrupted operation even if one power supply fails.

Electrical Specifications:

• Power Supply:

  • Nominal Input: 24 V DC (typical for most industrial automation systems).
  • Voltage Tolerance: ±10%.

• Power Consumption:

  • Typical Power Consumption: Approximately 10-20W (depending on I/O configuration and connected devices).

• Current Consumption:

  • Current consumption is typically in the range of 200mA to 800mA depending on the active I/O channels and configuration.

• Signal Input Range:

  • Analog Inputs: Commonly 4-20mA or 0-10V signals.
  • Digital Inputs: **24 V DC
