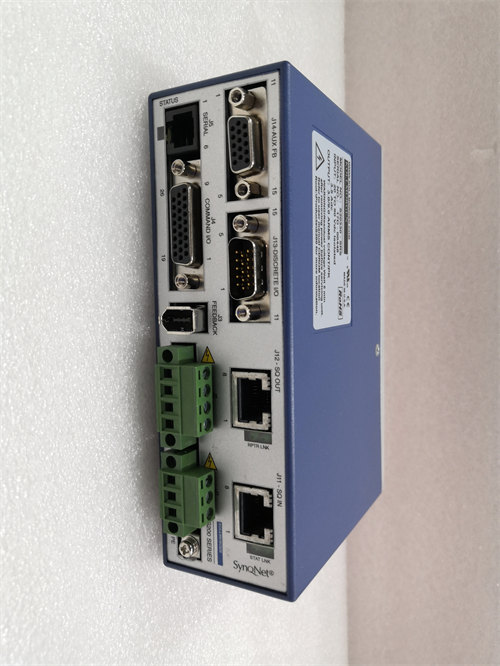

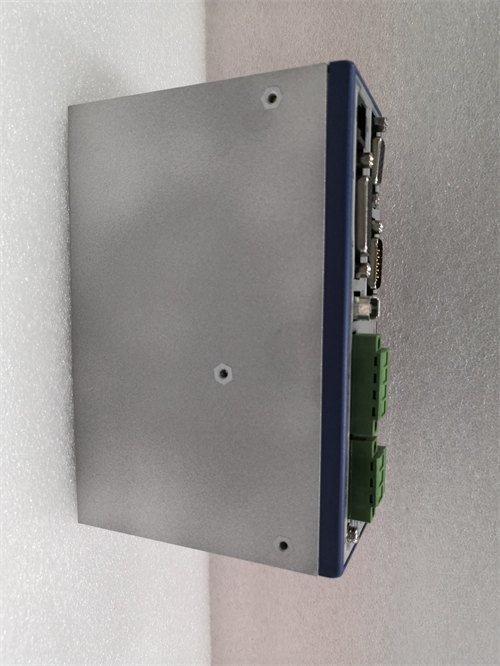

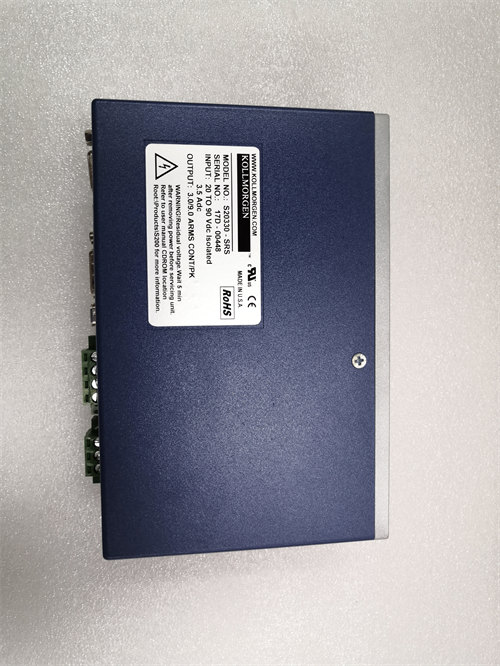

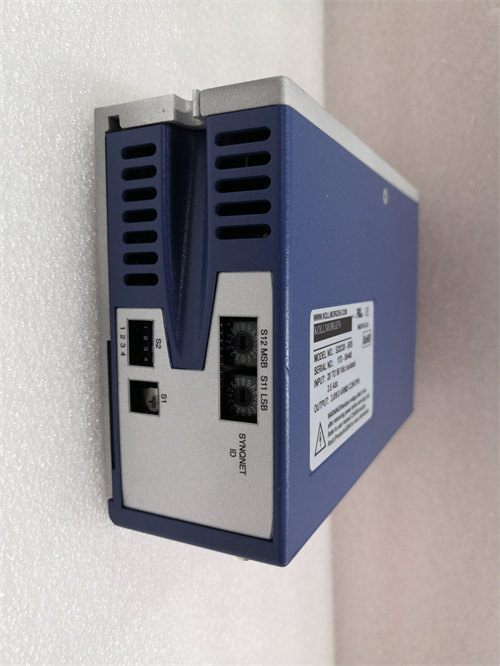

KOLLMORGEN+S20330-SRS

الوصف

The Kollmorgen S20330-SRS is part of the S200 series from Kollmorgen, a leading manufacturer of motion control systems and automation solutions. Kollmorgen is known for providing high-performance products used in industrial automation, robotics, and machine control. The S200 series includes modular, scalable, and customizable systems designed for precise and flexible control of electric motors, particularly in the servo motor and motion control sectors.

Let’s break down the key features and specifications of the Kollmorgen S20330-SRS:

Kollmorgen S20330-SRS Overview:

1. Product Type:

• S20330-SRS is a part of Kollmorgen’s S200 Servo Drive series.
• Typically, servo drives are designed to control brushless AC motors (BLDC), AC induction motors, and stepper motors in applications where precise positioning, speed, and torque control are required.
• The S20330-SRS variant is likely designed for specific industrial applications that need advanced control and communication features.

2. General Features:

• High-Performance Servo Control: The S20330-SRS provides high-performance control of servo motors, enabling applications requiring precision motion control, like robotics, CNC machines, packaging, and conveyor systems.
• Flexible Configurations: The drive can operate in different modes, including position mode, velocity mode, and torque mode, depending on the application requirements.
• Modular Design: The S200 series is built with modularity in mind, allowing for easy expansion and customization to meet varying system requirements.
• Ethernet-based Communication: The drive is typically compatible with several communication protocols, such as EtherCAT, Modbus, or CANopen, ensuring easy integration with higher-level control systems like PLCs or DCS systems.

3. Performance and Specifications:

• Current Rating: The drive usually has a specific current rating depending on the motor size it is intended to drive, typically in the range of 10-50 A or more.
• Power Supply: Typically designed for a three-phase AC input, often in the range of 200-480V AC depending on the exact configuration.
• Motor Compatibility: Supports permanent magnet motors (PMAC) and AC induction motors, allowing flexibility in selecting the right motor for your application.
• Cooling: Some models in the S200 series have forced air cooling, while others may offer natural cooling, depending on the power requirements and application needs.
• Safety: Includes standard features like safe torque off (STO), which is a safety function to ensure the motor stops safely during emergencies.

4. Integration and Connectivity:

• Communication Protocols: The drive supports several communication protocols, including EtherCAT, CANopen, Modbus TCP, and Ethernet/IP, making it easy to integrate with PLC systems and other industrial networks.
• Feedback: The drive supports encoder feedback (incremental or absolute encoders) for closed-loop control, ensuring precise motor position and performance.
• Real-Time Control: Provides real-time performance and communication capabilities, crucial for high-speed automation tasks.

5. Environmental Specifications:

• Operating Temperature: Typically ranges from 0°C to 40°C for standard industrial environments. There may be extended temperature models available for more challenging environments.
• Protection Rating: The drive is usually rated with at least IP20 protection (for industrial panel mounting) to protect against dust and indirect contact.
• Vibration and Shock Resistance: Designed to operate in environments with industrial levels of vibration and shock.

6. Applications:

• Robotics: The S20330-SRS is suitable for robotic systems requiring high precision, like pick-and-place, material handling, or assembly robots.
• Packaging Machines: Can be used in high-speed packaging applications, providing the precision needed for continuous motion control.
• CNC Machines: Provides control over high-speed, high-precision machines, ensuring accuracy in milling, turning, and other processes.
• Conveyor Systems: Used in conveyor applications where speed, torque, and position control are critical for smooth material handling.

Summary:

The Kollmorgen S20330-SRS is a high-performance servo drive in the S200 series designed for precise motor control applications in industrial environments. It offers flexible motor compatibility, high-efficiency operation, and modular scalability, making it suitable for demanding tasks like robotics, CNC machining, and automated packaging. Its communication compatibility with industrial networks ensures seamless integration into various control systems, while its rugged design ensures reliable performance even in challenging environments.

If you need a deeper dive into specific features, like exact current ratings or communication protocols, let me know!
