Triconex 2870H AO HART Interface

الوصف

The user is asking about the Triconex 2870H. The search results confirm that this is an Analog Output (AO) module with a HART interface. Here are the key details:

• Model: 2870H
• Function: Analog Output Interface Module with HART
• Signal: 4-20 mA with HART protocol support
• Points: 8 channels per module
• Compatibility: This module is part of a larger Triconex system and is often used with specific termination panels, such as the 9853-610.

The “H” in the model number denotes its HART capability, which allows it to communicate digitally with smart field devices in addition to the standard analog signal. This is a crucial feature that provides enhanced diagnostic information. The module’s architecture is a key component of the Triconex system’s overall fault-tolerant design.

I have all the necessary information to construct a detailed response, highlighting its unique HART interface, fault-tolerant design, and its role in safety-critical applications.

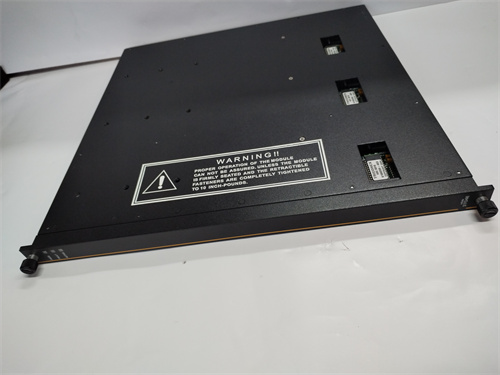

Triconex 2870H Analog Output HART Interface Module

Brief Product Description

The Triconex 2870H is an Analog Output (AO) Interface Module with an integrated HART protocol communication interface. It is a critical component of a Triconex safety instrumented system (SIS), providing 8 output channels that generate the industry-standard 4–20 mA signal. The defining feature of this module is its ability to simultaneously transmit and receive digital data from HART-enabled field devices over the same pair of wires as the analog signal, which enables advanced diagnostics and remote configuration.

• Product Type: Analog Output Interface Module
• Signal Type: 4–20 mA with HART protocol
• Points: 8, commoned-return
• Key Feature: Integration of HART digital communication for enhanced device management and diagnostics.

A Closer Look at the Triconex 2870H

In safety-critical applications, the reliability of your output signals and the health of your field devices are paramount. The Triconex 2870H is a highly sophisticated module that addresses these needs by combining robust analog control with the power of HART communication.

While the module itself is not a TMR (Triple Modular Redundancy) module, it is a crucial component within a TMR system. Its primary role is to act as an interface, sending analog control signals to devices like valves and actuators, while simultaneously supporting the digital HART protocol.

This HART capability provides several key benefits:

• Enhanced Diagnostics: The module can communicate with a HART-enabled field device to check its status, perform self-tests, and retrieve detailed diagnostic information. This allows you to detect potential failures in the field device before they lead to a system fault.
• Remote Configuration: Technicians can remotely configure the settings of a HART-enabled device from the control room without needing to go into the field. This saves time, reduces exposure to hazardous environments, and minimizes the risk of human error.
• Simplified Maintenance: The module’s ability to “talk” to field devices streamlines maintenance by allowing for remote calibration and device health monitoring.

The 2870H works in conjunction with a dedicated termination panel, such as the Triconex 9853-610, which provides screw terminals for organized field wiring and power connections. This combination creates a reliable, high-integrity interface for your critical process outputs.

Technical Specifications

Application Areas

The Triconex 2870H is used in any industry that requires high-integrity analog control and leverages HART-enabled field devices.

• Process Control: In refineries, petrochemical plants, and power generation facilities, it’s used to precisely control valves, actuators, and other equipment while providing advanced diagnostics.
• Emergency Shutdown (ESD) Systems: Used to provide a fail-safe signal to a control valve, ensuring a process is safely brought to a shutdown state.
• Critical Machinery Control: For controlling the speed of pumps and motors where a loss of control could lead to a catastrophic event.
