The Triconex 3501E digital input module and its corresponding termination panel, the Triconex 9561-810, form a crucial pairing within a safety instrumented system (SIS). These components work together to reliably acquire digital signals from the field—such as from switches, buttons, and status contacts—and deliver them to the Triconex controller with the highest level of integrity.

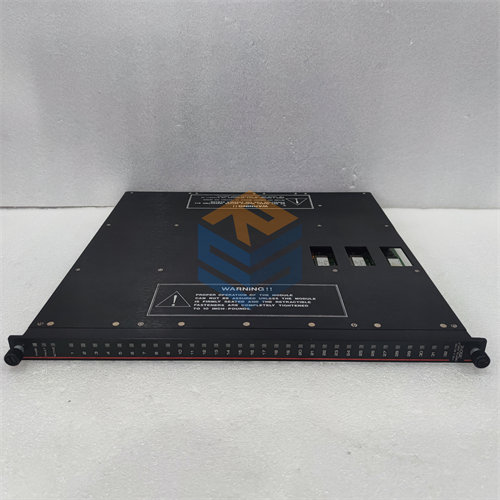

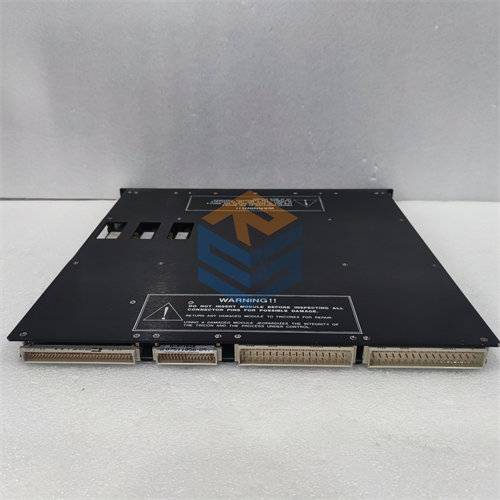

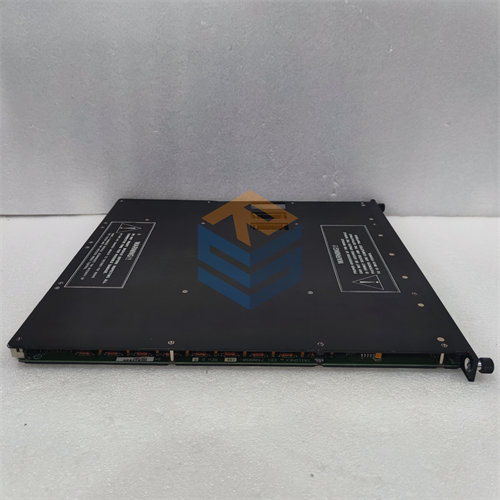

Triconex 3501E Digital Input Module
The 3501E is a high-performance digital input module built on Triconex’s renowned Triple Modular Redundancy (TMR) architecture. Its purpose is to acquire binary signals from industrial processes, ensuring that even a single component failure will not compromise the safety of the system. The “E” in the model number signifies that this is an enhanced version, offering improved diagnostics and performance.
Key Features
- Triple Modular Redundancy (TMR): The module contains three identical, independent input circuits. All three channels read the same input signal simultaneously, and the system uses a 2-out-of-3 voting mechanism to validate the data. This means a single fault is automatically ignored, allowing the system to continue operating without interruption.
- High Point Density: With 32 digital input channels, the 3501E can monitor a large number of field devices from a single module, which helps reduce cabinet space and complexity.
- Enhanced Diagnostics: The module is constantly performing self-diagnostics to detect internal faults. If a fault is found, the TMR system will isolate the faulty channel and raise an alarm, but without causing a nuisance trip. This allows for scheduled maintenance rather than a sudden shutdown.
- Signal Compatibility: The 3501E is designed to accept high-voltage signals, typically from 90 to 155 VAC/VDC. This makes it compatible with a wide range of industrial power sources and field devices.
Triconex 9561-810 Termination Panel
The 9561-810 is not a smart module itself, but it is an indispensable component of the system. It acts as the physical bridge between the 3501E module and the real-world field wiring. Its primary job is to provide a clean, organized, and robust connection point for all the digital input signals.
Key Features
- Simplified Wiring: The panel features screw terminals for easy connection of field wiring. This organization is essential for quick installation and, more importantly, efficient troubleshooting in the event of a problem.
- Hot-Swappable Support: The 9561-810 panel connects to the 3501E module via a ribbon cable. This design is critical because it allows a maintenance technician to “hot-swap” a faulty 3501E module without ever having to touch the field wiring. This minimizes downtime and the risk of human error during replacement.
- Compact Design: The panel is designed to be mounted on a DIN rail inside an industrial cabinet, allowing for a high density of input points in a compact footprint.
How They Work Together
The Triconex 3501E and 9561-810 work together seamlessly to form a reliable digital input subsystem. The field devices (like limit switches or pressure switches) are wired to the screw terminals on the 9561-810 termination panel. A ribbon cable then transmits these signals from the panel to the three independent channels inside the 3501E module.
Inside the 3501E, the TMR architecture takes over. Each channel processes its input signal and the three channels cross-check with each other. If one channel’s reading is different from the other two, the system’s voting mechanism automatically discards the errant reading and continues to operate based on the two correct ones. This entire process happens in real-time, providing an uninterrupted and trustworthy stream of input data to the main processor, which can then make safety-critical decisions.
By combining the intelligence and fault tolerance of the 3501E module with the rugged, organized interface of the 9561-810 panel, Triconex provides a solution that is both incredibly safe and highly maintainable.
