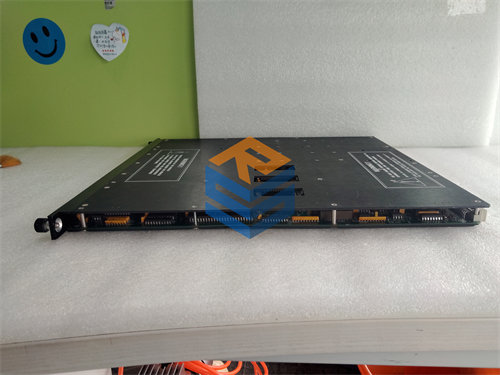

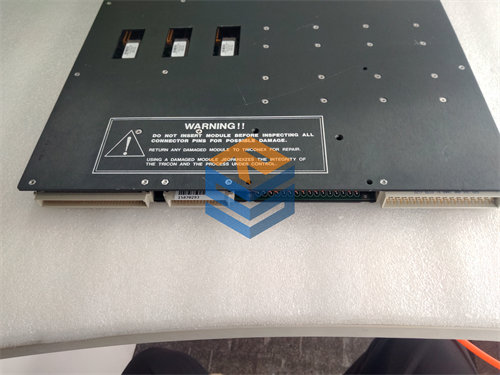

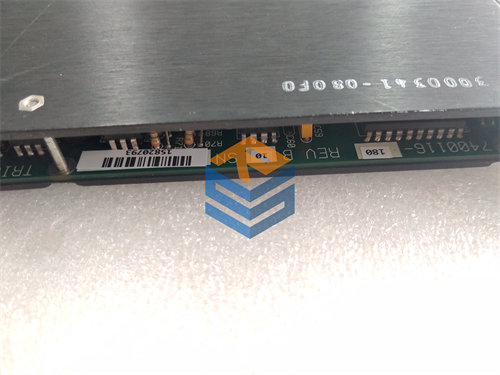

TRICONEX 3607E

الوصف

The TRICONEX 3607E is a Triple Modular Redundant (TMR) Digital Output (DO) Module for the Triconex Safety Instrumented System (SIS).

It is specifically designed for controlling discrete (on/off) field devices in critical safety applications, particularly those requiring higher voltage outputs than the more common 24VDC modules. Its TMR architecture ensures exceptional reliability and fault tolerance.

Top 10 SEO-Optimized Headings:

1. TRICONEX 3607E: TMR Digital Output Module for 48 VDC Critical Safety Systems.
2. High Voltage Control: The TRICONEX 3607E for Robust Industrial Safety.
3. TRICONEX 3607E: Fault-Tolerant Digital Outputs in Demanding Environments.
4. Precision & Protection: Leveraging the TRICONEX 3607E for Critical Actuation.
5. Why Choose TRICONEX 3607E: Maximizing Uptime in High-Voltage Applications.
6. TRICONEX 3607E: The Core of Emergency Shutdown and Fire & Gas Control.
7. Isolated Outputs & Diagnostics: Key Features of the TRICONEX 3607E DO Module.
8. TRICONEX 3607E: Essential for Power Generation, Oil & Gas, and Heavy Industry Safety.
9. Optimize Your Safety System: The Versatility of the TRICONEX 3607E 48 VDC Output.
10. Industrial Control: Ensuring Integrity with the TRICONEX 3607E Digital Output.

Brief Product Description (for Detail Pages and Search Results):

The TRICONEX 3607E is a 16-point, 48 VDC, Triple Modular Redundant (TMR) Digital Output (DO) module designed for Triconex Safety Instrumented Systems (SIS). It provides highly reliable and fault-tolerant control of discrete field devices requiring a 48VDC supply, such as solenoids, motor starters, and indicating lamps. With its TMR architecture, isolated outputs, and continuous diagnostics, the 3607E ensures high availability and safe operation even in the event of internal component failures, making it ideal for critical safety applications in demanding industrial environments like power generation and heavy process industries.

• Product Type: Digital Output (DO) Module
• Channels: 16 points
• Voltage: 48 VDC nominal (operates typically within 44-80 VDC range)
• Key Feature: Triple Modular Redundancy (TMR), Opto-Isolated, Non-Commoned outputs.
• Compatibility: Triconex Tricon series controllers. Requires an external termination panel (ETP).
• Applications: Emergency Shutdown (ESD), Fire & Gas (F&G), Burner Management Systems (BMS), controlling higher voltage loads in industries like Power Generation, Oil & Gas, Petrochemical, and Chemical.

Detailed Product Description:

In heavy industrial settings, where critical actuators and indicators often require higher DC voltages, the precise and reliable control of these devices is paramount for safety. The TRICONEX 3607E Digital Output Module is specifically engineered to meet this demanding requirement within a Triconex Safety Instrumented System (SIS). It’s not just a relay; it’s a highly sophisticated, fault-tolerant component that ensures critical commands are executed with unwavering precision and reliability, even if internal component failures occur. Think of it as the unwavering “hand” of your safety system, guaranteeing that when an action is commanded, it will be performed correctly and safely.

My experience in complex industrial plants has taught me that the integrity of output signals, especially for safety-critical actuators, is non-negotiable. A faulty output command to a shutdown valve, for instance, could lead to severe consequences. The TRICONEX 3607E directly addresses this by combining the robust TMR architecture with features tailored for higher voltage DC applications. This provides an unparalleled level of confidence, ensuring that your safety system can reliably actuate necessary field devices to prevent hazardous situations and protect personnel and assets.

The Power of Triple Modular Redundancy (TMR):

The core of the TRICONEX 3607E‘s exceptional reliability lies in its Triple Modular Redundancy (TMR) architecture. Here’s how it ensures data integrity:

• Three Channels, One Output: The module receives output signals from each of the three main processors (in a TMR Triconex controller) on three separate channels.
• Internal Voting Circuitry: Within the module, specialized voting circuitry continuously compares these three signals. This sophisticated voting mechanism ensures that the module’s final output to the field is based on a consensus of the healthy channels.
• Fault Tolerance: This design allows the module to continue to operate correctly and generate accurate outputs even if one of its internal components or channels fails. The module is guaranteed to operate properly in the presence of a single fault and may continue to operate with certain kinds of multiple faults.

Advanced Diagnostics and Protection:

Beyond TMR, the TRICONEX 3607E incorporates features that enhance its integrity and simplify maintenance:

• Continuous Self-Diagnostics: The module performs extensive, continuous self-diagnostics on every channel and critical circuit. Diagnostic failures activate a “Fault” indicator (typically an LED), signaling a channel fault or a potential issue within the module.
• Output Voltage and Load Feedback: The module includes internal mechanisms to verify the actual state of the output and can detect issues like a load being open or a fuse being blown on the external termination panel. This provides comprehensive fault coverage.
• Optically Isolated Outputs: Each output point is optically isolated from the module’s internal circuitry. This provides robust electrical isolation, protecting the module from voltage spikes, noise, and ground loops originating in the field.
• Non-Commoned Outputs: Each of the 16 output points is individually isolated (non-commoned), preventing cross-talk or interference between channels and enhancing system reliability.
• Hot-Swappable: The module supports hot-swappable capability, meaning it can be inserted or removed from the chassis while the system is online and operating, without interrupting the process. This significantly reduces downtime for maintenance or replacement.
• Individual Point Fuses: Each output point has its own fast-acting fuse (typically 1.25A) located on the external termination panel (ETP), providing localized overcurrent protection.

Compatibility and Integration:

The TRICONEX 3607E is designed to work seamlessly within the Triconex ecosystem:

• Triconex Chassis Integration: It plugs into a Triconex I/O chassis (like the Triconex 8111 expansion chassis).
• External Termination Panel (ETP): It requires a separate ETP (Field Termination Assembly – FTA) for connecting the field wiring from actuators to the module. The ETP typically houses the fuses for each output point and provides convenient wiring terminals.

Technical Specifications (Typical, actual values may vary slightly by revision):

Applications:

The TRICONEX 3607E is deployed in safety-critical applications across various heavy industries where precise and reliable control of 48VDC devices is essential:

• Power Generation (Thermal, Hydro, Nuclear):
  • Burner Management Systems (BMS): Actuating 48VDC fuel valves, igniters, and fan dampers for safe boiler startup, operation, and shutdown.
  • Turbine trip systems, generator protection, and balance-of-plant safety interlocks.
• Oil & Gas (Upstream, Midstream, Downstream):
  • Emergency Shutdown Systems (ESD): Controlling 48VDC solenoids for emergency vent valves, blowdown valves, and pump shutdowns.
  • Fire & Gas (F&G) Systems: Activating 48VDC alarms, sirens, and deluge system components.
  • Pipeline control and safety valve actuation.
• Petrochemical and Chemical Plants:
  • Controlling safety-related pumps, motors, and high-voltage indicators in hazardous areas.
  • Actuating critical interlocks and safety valves in process units.
• Mining and Metals:
  • Safety interlocks for heavy machinery, conveyor belts, and ventilation systems, often using 48VDC control circuits.
• Water and Wastewater Treatment:
  • Controlling large 48VDC pumps, motor control centers, and chemical dosing systems for safe and efficient operation.

Related Products:

The TRICONEX 3607E operates within a larger Triconex safety system architecture. Here are some related components and systems:

• Triconex Controllers (e.g., Tricon v9, Tricon CX, Tricon MP3009): These are the main CPUs that issue the output commands to the 3607E module.
• Triconex Digital Input Modules (e.g., 3501E, 3502E, 3503E, 3506X): These are the counterparts to DO modules, used to receive discrete signals from field devices (sensors).
• Triconex Analog Input/Output Modules (e.g., 3708EN, 3805E): Used for continuous signal measurement and control within the same Triconex system.
• Triconex 8111 Expansion Chassis: The physical chassis that houses the 3607E and other I/O modules.
• Triconex External Termination Panels (ETP) / Field Termination Assemblies (FTA): Essential for wiring the 3607E to field devices. The specific ETP for the 3607E would include individual fuse holders for each output point.
• Schneider Electric EcoStruxure Triconex Safety Systems: The comprehensive suite of hardware and software that the 3607E module is a part of.
• Actuators (e.g., 48VDC Solenoid Valves, Motor Starters, Indicator Lamps): These are the field devices that the 3607E module directly controls.
• Industrial Power Supplies (48VDC): While the module itself is powered by the chassis, the field devices it controls typically receive their 48VDC power from external industrial power supplies, often separate from the Triconex system’s internal power.
