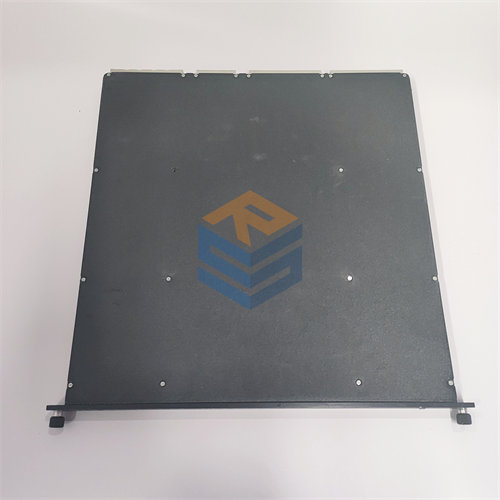

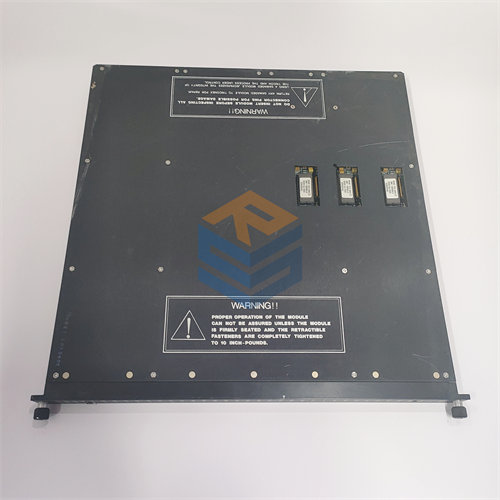

Triconex 3611E Digital Output Module
Triconex 3611E Digital Output Module
Brief Product Description
The Triconex 3611E is a Supervised Digital Output (SDO) module designed for use in Triconex safety instrumented systems (SIS). It provides 8 optically-isolated, commoned output points for controlling field devices with a nominal voltage of 115 VAC. A key feature of the 3611E is its TMR (Triple Modular Redundancy) architecture combined with supervision, making it ideal for safety-critical applications where outputs remain in a single state for extended periods, such as in Emergency Shutdown (ESD) and Fire and Gas (F&G) systems. The module’s robust diagnostics ensure high reliability and fault tolerance.
- Product Type: Supervised Digital Output (SDO) Module
- Voltage: 115 VAC
- Configuration: Triple Modular Redundancy (TMR)
- Points: 8, commoned
- Key Feature: Fault-tolerant output control with continuous supervision.
A Closer Look at the Triconex 3611E Digital Output Module
In the world of industrial safety, the design of output modules for critical applications must be fail-safe and reliable. The Triconex 3611E is a perfect example of this philosophy in action. It’s not just a digital output module; it’s a highly sophisticated safety device built on the foundation of Triple Modular Redundancy (TMR).
The core of the 3611E‘s strength lies in its TMR architecture. It contains three independent sets of circuitry, each receiving an output command from the system’s main processors. These three signals are then “voted” on by special quadruplicated output logic, ensuring that only a single, confirmed signal is sent to the field device. This design means the module can tolerate multiple internal component failures without causing a false trip or halting the process.
What truly sets the 3611E apart is its supervision capability. Supervised Digital Output (SDO) modules are specifically designed for applications where an output may remain in an “off” or “on” state for months or even years. The module features voltage and current loopback circuitry and continuously runs diagnostics to verify the health of the output switch, the field wiring, and the presence of a load. This ensures that a latent fault, such as a broken wire or blown fuse, is detected immediately, preventing a potential failure from going unnoticed. This feature is vital for maintaining system integrity over long periods.
For engineers and maintenance staff, the module provides a suite of features that simplify operation and maintenance. The module supports hot-swap capability, meaning a faulty module can be replaced online without shutting down the entire system—a feature that is invaluable in continuous processes.
Technical Specifications
| Feature | Specification |
| Product Type | Supervised Digital Output (SDO) Module |
| Model Number | 3611E |
| Nominal Voltage | 115 VAC |
| Voltage Range | 90–155 VAC |
| Points | 8, commoned |
| Architecture | Triple Modular Redundancy (TMR) |
| Current Rating | 2A per point, max (10A surge per AC cycle) |
| Frequency Range | 47–63 Hz |
| Point Isolation | 1500 VDC, min |
| Diagnostics | Voltage and current loopback, field fault detection |
| Hot-Swappable | Yes |
| Color Code | Blue |
Application Areas
The Triconex 3611E is used in any industry that requires high-integrity control of 115 VAC field devices for safety-related actions.
- Emergency Shutdown (ESD) Systems: Controlling safety-critical devices like solenoid valves that shut off fuel or vent a dangerous gas.
- Fire and Gas (F&G) Systems: Activating alarms, sirens, and other warning devices in response to a fire or gas leak.
- Burner Management Systems (BMS): Managing the start-up and shutdown sequences of burners in a safe, controlled manner.
- Process Control: In refineries, petrochemical plants, and power generation facilities, it’s used to control relays, motors, and other high-voltage AC equipment for safe operation.
