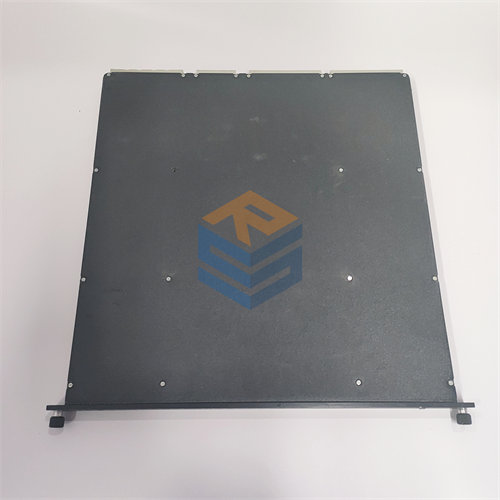

Triconex 3623 Supervised Digital Output Module

The Triconex 3623 is a Triple-Modular Redundant (TMR) Supervised Digital Output (SDO) module designed for use in safety-critical applications. Engineered for robust performance, this module provides continuous diagnostic coverage of both the module itself and its field wiring, which is an essential feature for applications where outputs may remain in a single state for extended periods. This module has 16 points and is specifically designed to operate on a nominal voltage of 120 VDC.

Triple-Modular Redundancy and Comprehensive Diagnostics

The Triconex 3623 combines the industry’s highest level of fault tolerance with advanced self-diagnostics to ensure the integrity of your safety system.

• Triple-Modular Redundancy (TMR): The module’s internal electronics are fully triplicated. It receives output signals from three Main Processors, which are then voted on by a quadruplicated output switch. This 2-out-of-3 voting architecture ensures that a single component failure will not cause an undesired output change, providing unmatched reliability and fault tolerance.
• Supervised Outputs: The “Supervised” feature is a key differentiator. The module uses internal voltage and current loopback circuitry to continuously monitor the health of the output switch, the integrity of the field circuit, and the presence of a load. This allows it to detect a variety of field faults, such as open circuits, shorts, and blown fuses. The module provides a suite of diagnostic indicators for status (PASS, FAULT, ACTIVE) and for each point’s power and load status.
• 120 VDC Output: With 16 individually controlled outputs, the module is a high-density solution for controlling a wide range of industrial equipment. It is rated for a maximum current of 0.8A per point, making it suitable for operating solenoids, contactors, and alarm indicators that require 120 VDC.

Technical Specifications

Application Areas

The Triconex 3623 is a vital component in safety-critical systems that require high-integrity output signals and continuous diagnostics.

• Emergency Shutdown Systems (ESD): Used to control final elements like solenoid valves and other DC-powered devices for process shutdown, where a supervised output ensures the control signal reaches its destination.
• Fire & Gas Detection Systems: Ideal for triggering alarms, horn strobes, and other emergency devices that run on DC power, where a fault in the output circuit must be immediately detected.
• Oil & Gas: In refineries and petrochemical plants, it’s used to actuate safety systems in applications where 120 VDC is the standard for control power.
