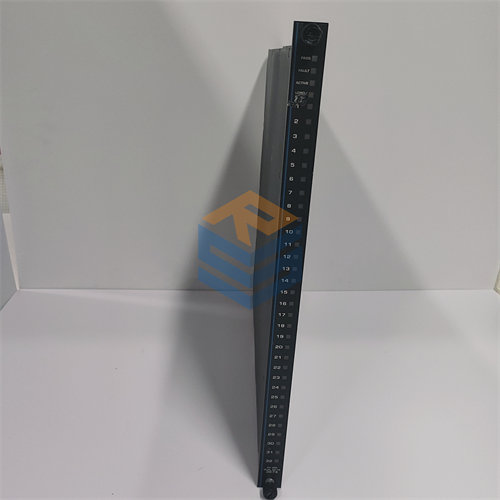

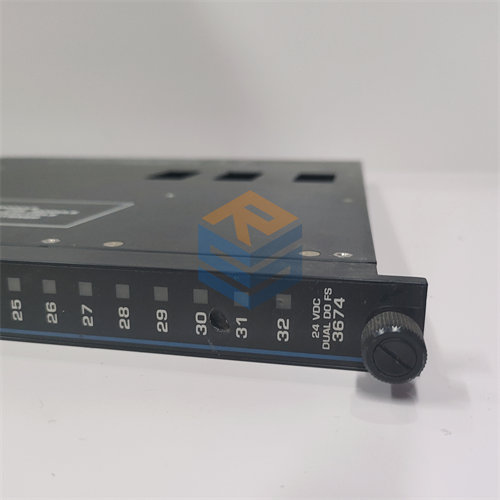

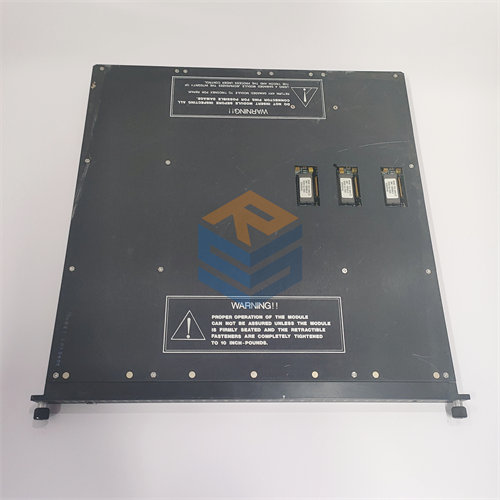

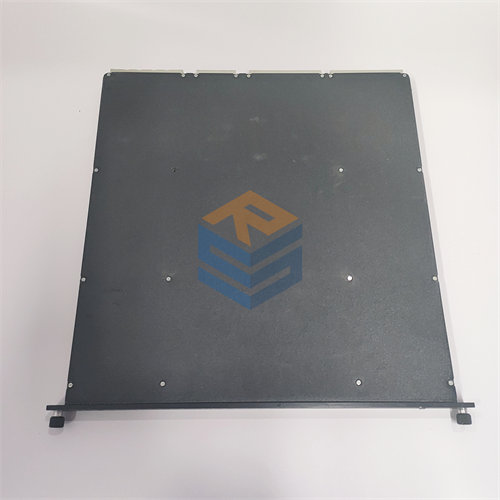

Triconex 3674 Dual Digital Output Module

Brief Product Description

The Triconex 3674 is a high-density, Dual Digital Output (DDO) module designed for use in Triconex safety instrumented systems (SIS). It provides 32 commoned output points for controlling field devices with a nominal voltage of 24 VDC. The module employs a unique dual-redundant architecture that receives signals from the TMR system’s main processors and applies a 2-out-of-3 voting process internally to ensure reliable output signals. This design provides a strong balance of fault tolerance, cost-effectiveness, and high density.

• Product Type: Dual Digital Output (DDO) Module
• Voltage: 24 VDC
• Configuration: Dual Redundancy with TMR input voting
• Points: 32, commoned
• Key Feature: High-density, self-protected outputs with advanced diagnostics.

A Closer Look at the Triconex 3674

The Triconex 3674 is a specialized module for applications that require a higher degree of availability than a simplex module can provide, but where the full cost and complexity of a TMR output module are not necessary. Its “Dual” architecture is a key element of this design philosophy.

The module contains two independent output circuits for each point. It receives commands from the three Main Processors of the Triconex system and, through an internal voting mechanism, decides whether to activate the output. This ensures that a single fault in one of the main processors will not cause a spurious output. While this provides fault tolerance for the command signal, a fault in the module’s output circuitry itself will be handled by the dual redundant paths.

What also sets the 3674 apart is its advanced diagnostics and “self-protected” outputs:

• Self-Protected Outputs: Each output point is internally protected, which eliminates the need for individual external fuses and simplifies wiring, reducing both cost and potential points of failure.
• Advanced Diagnostics: The module features a voltage-loopback circuit that verifies the operation of each output switch independently of a load. This capability allows the module to detect latent faults, such as a stuck-off output, ensuring that the system is ready to operate when a safety action is required.
• High Point Density: With 32 output points, the 3674 is a highly efficient solution for applications with a large number of digital outputs, helping to save valuable cabinet space and reduce system complexity.
• Hot-Swappable: Like other Triconex I/O modules, the 3674 supports hot-swapping, allowing a faulty module to be replaced online without shutting down the entire system, a critical feature for continuous processes.

Technical Specifications

Application Areas

The Triconex 3674 is used in any industry that requires high-integrity control of 24 VDC field devices. It is particularly well-suited for applications where a large number of outputs are required, and the “Dual” architecture provides a suitable level of reliability.

• Safety Instrumented Systems (SIS): Used to control safety-critical devices like solenoid valves that shut off fuel or vent a dangerous gas.
• Burner Management Systems (BMS): Managing the start-up and shutdown sequences of burners in a safe, controlled manner.
• Fire and Gas (F&G) Systems: Activating alarms, sirens, and other warning devices in response to a fire or gas leak.
• Process Control: In refineries, petrochemical plants, and power generation facilities, it is used to control relays, motors, and other DC equipment for safe operation.
