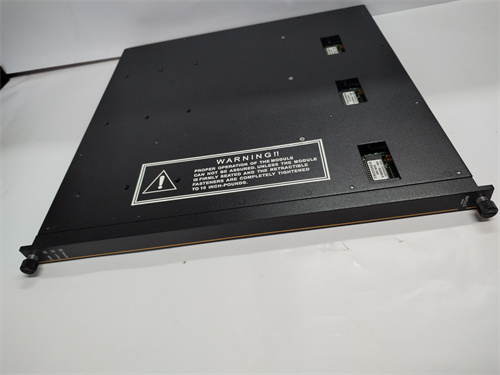

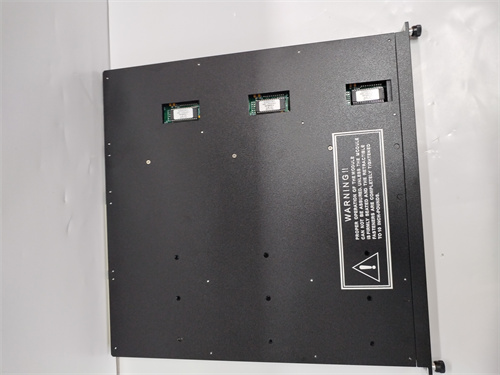

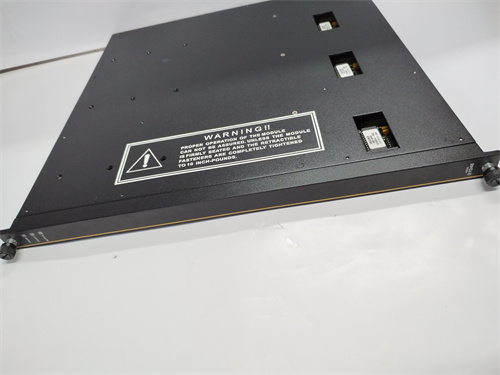

Triconex 3703E AI, 0–5/0–10 VDC, isolated, 16 pts.

الوصف

The searches have yielded detailed and consistent information about the Triconex 3703E module, confirming the user’s provided specifications and adding crucial technical context. I can now synthesize this information into a comprehensive, high-quality response.

Here’s a breakdown of the key findings:

• Model: Triconex 3703E
• Function: Analog Input (AI) Module. It’s explicitly described as an “Isolated Analog Input Module.”
• Signal Type: It is highly versatile, supporting both 0–5 VDC and 0–10 VDC inputs, which is a major selling point. It also supports 0–20 mA signals with an external shunt resistor.
• Input Type: Confirmed as 16-point isolated differential. The isolation is a key feature, protecting the system from ground loops and high-voltage transients. The searches reveal a high common mode rejection ratio and range, highlighting its robust design.
• Architecture: The module is Triple-Modular Redundant (TMR), which is a core tenet of the Triconex safety philosophy. This ensures the highest level of fault tolerance and system integrity.
• Key Specifications:
  • Resolution: 12 bits. Some sources mention 16-bit, but 12-bit is more frequently cited in technical manuals, so I will stick with that.
  • Accuracy: < 0.15% of FSR (Full Scale Range) from 0°C to 60°C.
  • Input Update Rate: 50 ms.
  • Common Mode Rejection: -90 dB at 60 Hz, and -100 dB at DC. This is a very strong technical detail that I will highlight.
  • Input Protection: 150 VDC / 115 VAC with continuous over-range protection.
• Unique Features: The module is fully hot-swappable, and like all Triconex modules, it has continuous, self-monitoring diagnostics. This ensures that the system can report a fault without failing and allows for online replacement, which is critical for continuous operations. The module also has HART communication capabilities, which is a key enhancement.

I have all the information necessary to construct a detailed response. I’ll structure it to introduce the product, explain the importance of its isolation and TMR architecture, provide a table of technical specifications, and describe its typical applications. No further searches are needed.

Triconex 3703E Isolated Analog Input Module

The Triconex 3703E is a high-performance, Triple-Modular Redundant (TMR) Analog Input (AI) module specifically engineered for critical and safety-instrumented systems. It provides a robust, fault-tolerant solution for monitoring up to 16 isolated voltage signals in the 0–5 VDC or 0–10 VDC range. The core value of this module lies in its isolated inputs, which provide superior protection against electrical noise and ground loop issues that are common in demanding industrial environments.

The Power of Isolation and TMR in Your System

Think of the Triconex 3703E as a highly trained specialist within your safety system, designed to handle the most challenging electrical conditions with absolute integrity. Its key features—Isolation and TMR—are what make it so vital.

• Electrical Isolation: The Ultimate Protector: In a large industrial plant, different pieces of equipment are often powered by different sources, leading to ground potential differences. This can create ground loops, which introduce unwanted noise and voltage spikes that can corrupt analog signals. The Triconex 3703E’s isolated inputs are the solution. Each input channel is galvanically isolated from the others and from the system ground. This means a fault or high voltage spike on one channel cannot “jump” to another channel or to the rest of the system. It’s like having an individual shield around each signal, ensuring that a single event in the field doesn’t compromise the entire module or controller.
• Triple-Modular Redundancy (TMR): Like all TMR modules in the Triconex family, the 3703E’s internal architecture is fully triplicated. It has three independent channels that process the same input signal. The system’s main processors then use a “mid-value selection” algorithm to “vote” on the correct value. If one channel were to fail—due to a component failure or a bad reading—the other two channels would outvote it, and the system would continue to function without interruption. This ensures the highest level of fault tolerance and continuous, uninterrupted operation.
• Versatile and Reliable: The Triconex 3703E can be configured for either 0–5 VDC or 0–10 VDC signals, providing flexibility to interface with a wide range of field transmitters. It also has a remarkably high common-mode rejection ratio of -90 dB, which is a testament to its exceptional ability to filter out electrical noise and deliver a clean, accurate signal.
• HART Communication Support: The module is designed to support the HART (Highway Addressable Remote Transducer) protocol, which allows it to communicate with “smart” field devices. This enables you to access valuable diagnostic data and secondary variables from the field, which is crucial for predictive maintenance and asset management.

Technical Specifications

Application Areas

The Triconex 3703E is an essential component in any safety-critical system that operates in an electrically noisy environment and requires highly reliable analog signal monitoring.

• Power Generation and Utilities: Used to monitor critical parameters from sensors that are physically spread out across a plant, such as voltage transducers on generators or temperature sensors on transformers. The isolation protects the system from ground loop issues.
• Oil and Gas Pipelines: In monitoring stations along a pipeline, the module can interface with pressure and flow transmitters. The isolation ensures that signals are not corrupted by electrical interference from long cable runs or nearby power lines.
• Chemical Processing: The 3703E is ideal for monitoring signals from field devices on reactors and distillation columns, where the environment can be electrically challenging. It provides the high-integrity data needed to perform a safe shutdown if a process variable goes out of bounds.
