The Triconex 9561-110 is a termination panel designed to work with a high-voltage digital input module in a Triconex safety instrumented system (SIS). This specific panel provides the physical interface for field wiring, making it a critical component that bridges the gap between the plant floor and the sophisticated electronics of the safety controller.
Understanding the Components
To fully understand the 9561-110 termination panel, you need to know about the module it supports. The panel is specifically designed for the Triconex 3501E Digital Input Module.
- Triconex 3501E Digital Input Module: This is a high-performance, high-density module built on Triconex’s Triple Modular Redundancy (TMR) architecture. The TMR design means the module has three identical, independent channels that read the same input signal simultaneously. A 2-out-of-3 voting mechanism is used to validate the data, ensuring the system can continue to operate safely even if one channel fails. The 3501E is a high-voltage module, typically designed for signals in the 90-155 VAC/VDC range.

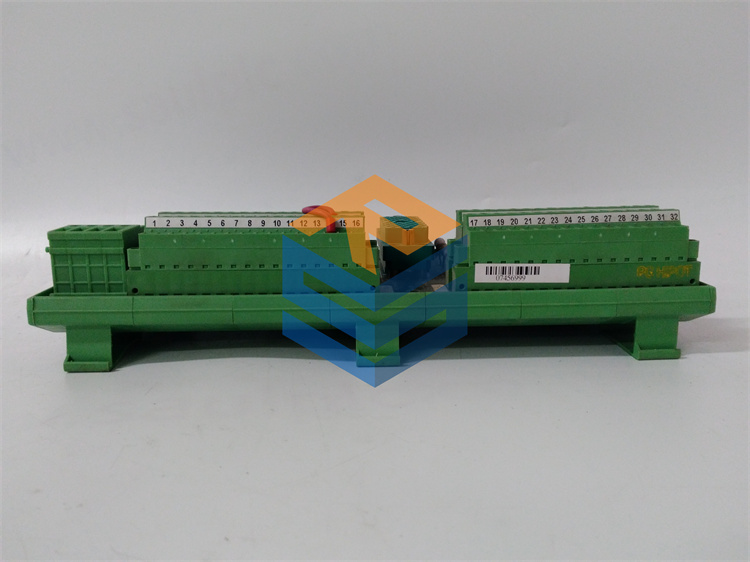

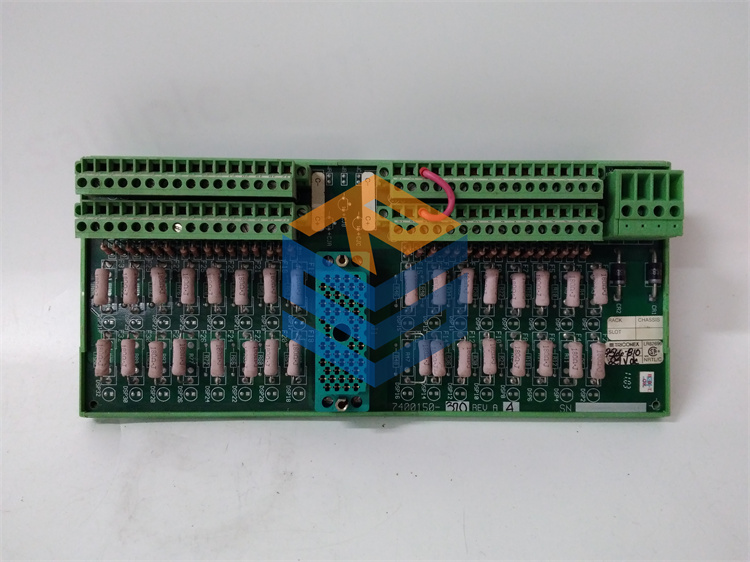

- Triconex 9561-110 Termination Panel: This is a rugged, passive component that provides the physical connection points for the field wiring. It has clear screw terminals for 16 digital input points. The panel’s design is “non-commoned,” meaning each input point is isolated, preventing a fault on one channel from affecting another. It connects to the 3501E module via a ribbon cable.
How They Work Together
The combination of the Triconex 3501E module and the 9561-110 panel is a prime example of a safety system built for reliability and maintainability.
- Wiring: Field devices like limit switches, pressure switches, or emergency stop buttons are wired directly to the screw terminals on the 9561-110 panel.
- Signal Transmission: A single ribbon cable then carries these signals from the termination panel to the 3501E module, which is installed in a Triconex chassis.
- Fault Tolerance: Inside the 3501E, the TMR architecture takes over. It processes the signals and cross-checks the data across its three channels. This ensures that the data sent to the main processor is trustworthy and free from single-point failures.
- Maintenance: The biggest advantage for maintenance teams is the ease of replacement. The 9561-110 panel’s design allows a technician to “hot-swap” a faulty 3501E module without ever having to disconnect any of the field wiring. This dramatically reduces downtime and the risk of human error during maintenance.
Technical Specifications
